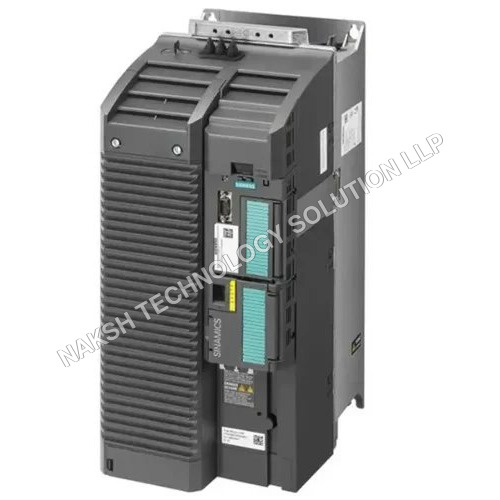

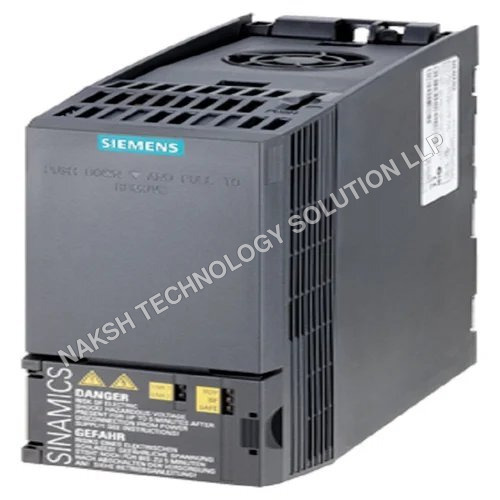

G120C Siemens 11.0KW15.0HP Drive

About G120C Siemens 11.0KW15.0HP Drive

Key Features of Siemens G120C 11.0KW / 15.0HP Drive

• Power Rating: 11.0KW (15.0HP)- Designed for medium to large-scale motor-driven applications, delivering reliable power and consistent performance

• Energy-efficient operation- Adjusts motor speed to match system demands, reducing energy consumption and lowering operational costs

• Compact and durable design- Space-saving and robust construction ensures reliable performance even in harsh industrial environments

• Advanced motor control- Provides smooth, precise control for a wide range of applications, maximizing motor efficiency and reliability

• Built-in protection features- Equipped with overload, overcurrent, and short-circuit protection to safeguard both the drive and connected motors

• Easy integration and setup- User-friendly configuration tools simplify commissioning and allow seamless integration into existing automation systems

Rated Data

Input

• Phases: 3 AC

• Line Voltage: 380480 V (+10% / 20%)

• Line Frequency: 4763 Hz

• Rated Current (LO): 33.00 A

• Rated Current (HO): 24.10 A

Output

• Phases: 3 AC

• Rated Voltage: 400 V (IEC), 480 V (NEC)

• Rated Power (LO): 11.0 kW / 15 hp

• Rated Power (HO): 7.5 kW / 10 hp

• Rated Current (LO): 25.0 A

• Rated Current (HO): 16.5 A

• Rated Current (IN): 26.0 A

• Max. Output Current: 33.0 A

• Pulse Frequency: 4 kHz

• Output Frequency (Vector Control): 0240 Hz

• Output Frequency (V/f Control): 0550 Hz

Overload Capability

Low Overload (LO)

• 150% IL for 3 s

• 110% IL for 57 s (300 s cycle)

High Overload (HO)

• 200% IH for 3 s

• 150% IH for 57 s (300 s cycle)

General Technical Specifications

• Power Factor : 0.700.85

• cos : 0.95

• Efficiency : 0.97

• Sound Pressure Level (1 m): 66 dB

• Power Loss: 292 W

• Integrated Filter Class: Unfiltered

• Communication: USS / Modbus RTU

Inputs / Outputs

Digital Inputs (Standard)

• Quantity: 6

• Switching level (01): 11 V

• Switching level (10): 5 V

• Max Inrush Current: 15 mA

Fail-Safe Digital Inputs

• Quantity: 1

Digital Outputs

• Relay Output: 1 (DC 30 V / 0.5 A)

• Transistor Output: 1 (DC 30 V / 0.5 A)

Analog / Digital Inputs

• Quantity: 1 (Differential), 10-bit

Analog Outputs

• Quantity: 1 (Non-isolated)

Temperature Sensor Input

• Supports: PTC, KTY, Thermo-Click

• Accuracy: 5C

Control Methods

• V/f Control (Linear / Square-law / Parametric)

• V/f ECO (Linear / Square-law)

• Sensorless Vector Control

• No encoder-based vector or torque control

Ambient Conditions

• Cooling: Integrated fan (air cooling)

• Air Requirement: 0.018 m/s

• Altitude: Up to 1000 m

• Operating Temp: 10 to 40C

• Transport Temp: 40 to 70C

• Storage Temp: 25 to 55C

• Humidity: Max 95% (no condensation/icing)

Connections

Signal Cable

• Conductor: 0.151.5 mm (AWG 2416)

Line Side

• Terminals: Plug-in screw

• Conductor: 616 mm (AWG 106)

Motor End

• Terminals: Plug-in screw

• Conductor: 616 mm (AWG 106)

DC Link (Braking Resistor)

• Terminals: Plug-in screw

• Conductor: 616 mm (AWG 106)

Motor Cable Length

• Shielded: 150 m

• Unshielded: 150 m

Others

• Max Line Length: 15 m

• PE Connection: M4 screw on housing

Mechanical Data

• Protection: IP20 / UL open type

• Frame Size: FSC

• Weight: 4.40 kg

• Dimensions (WxHxD): 140 295 203 mm
