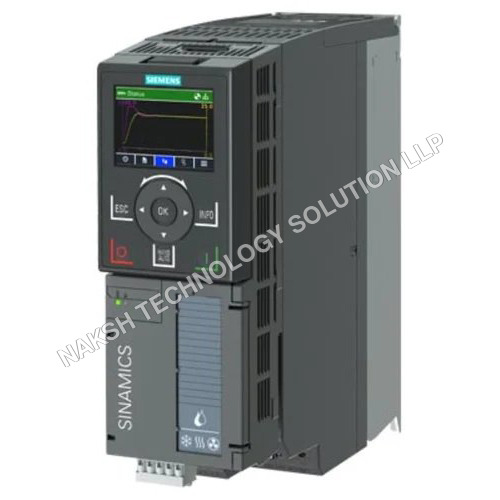

SIEMENS G120 AC DRIVE 6SL3210-1PE31-5UL0

The SIEMENS G120 AC DRIVE (model: 6SL3210-1PE31-5UL0) is a versatile and high-performance industrial automation solution designed for demanding applications. With a robust three-phase input voltage range of 380-480V, this AC drive delivers a rated power of 75 kW and operates seamlessly within a frequency range of 47-63 Hz. Its rated current capacity of 140A and output type of 220A ensure smooth and efficient control of heavy-duty equipment. Engineered with a compact design (305 x 708 x 357 mm) and a mounting option for DIN rails, it facilitates hassle-free installation in various industrial settings. This drive boasts advanced internal air cooling systems, an IP20 protection level, and is built to withstand humidity levels up to 95% and operation in temperatures from -20C to +40C. With a solid matt black surface finish and a durable construction weighing 57 kg, the Siemens G120 AC Drive is tailored for long-term reliability in challenging environments. It includes a 1-year warranty for added peace of mind, making it an ideal choice for industrial automation tasks requiring precision and efficiency.

Rated Data

Input

• Phases: 3 AC

• Line voltage: 380480 V 10%

• Line frequency: 4763 Hz

• Rated current (LO): 140 A

• Rated current (HO): 117 A

Output

• Phases: 3 AC

• Rated voltage: 400 V (IEC), 480 V (NEC)

• Rated power (LO): 75 kW / 100 hp

• Rated power (HO): 55 kW / 75 hp

• Rated current (LO): 145 A

• Rated current (HO): 110 A

• Max. output current: 220 A

• Pulse frequency: 2 kHz

• Output frequency (vector): 0200 Hz

• Output frequency (V/f): 0550 Hz

Overload Capability

Low Overload (LO)

• 110% for 57 s (cycle time: 300 s)

• 150% for 3 s (cycle time: 300 s)

High Overload (HO)

• 150% for 57 s (cycle time: 300 s)

• 200% for 3 s (cycle time: 300 s)

General Technical Specifications

• Power factor : 0.95

• Displacement factor cos : 0.99

• Efficiency : 0.98

• Sound pressure level (1 m): 68 dB

• Power loss: 1.78 kW

• Integrated filter class:

Ambient Conditions

• Cooling: Internal air cooling

• Cooling air requirement: 0.153 m/s

• Installation altitude: 1000 m

Temperature

• Operation (LO): -20 to 40 C

• Operation (HO): -20 to 50 C

• Transport: -25 to 55 C

• Storage: -25 to 55 C

Humidity

• Max. 95% RH (no condensation)

Connections

Line Side

• Connection type: M10 bolt

• Conductor size: 35120 mm (AWG 2 to AWG -3)

Motor End

• Connection type: M10 bolt

• Conductor size: 35120 mm

DC Link (Braking Resistor)

• Terminals: Screw-type

• Conductor size: 2570 mm

• Cable length: 10 m

• PE connection: M10 studs

Max. Motor Cable Length

• Shielded: 300 m

• Unshielded: 450 m

Mechanical Data

• Protection: IP20 / UL open type

• Frame size: FSF

• Net weight: 57 kg

• Dimensions (W H D): 305 708 357 mm

Technical Details
