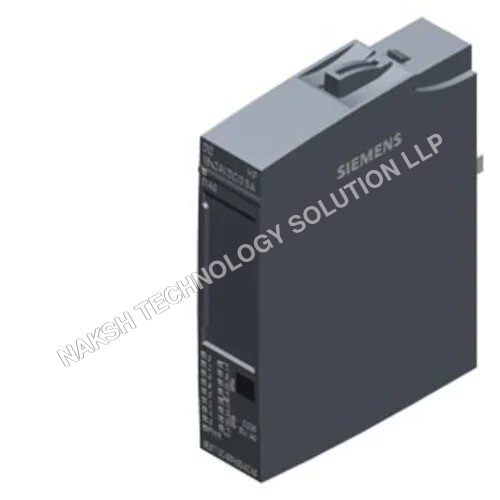

SIMATIC ET 200SP, digital output module, DQ 16x 24 V DC0.5 A high feature 6ES7132-6BH00-0CA0

About SIMATIC ET 200SP, digital output module, DQ 16x 24 V DC0.5 A high feature 6ES7132-6BH00-0CA0

SIMATIC ET 200SP, digital output module, DQ 16x 24 V DC/0.5 A high feature, source output PNP, switching to P potential, packing unit: 1 unit, suitable for BU type A0, color code CC00, channel diagnostics for: short-circuit and wire break, supply voltage, channel fault LED

General Information

• Product Type: DQ 16x24VDC/0.5A HF

• Hardware Status: 01

• Firmware Version: V1.0 (FW update possible)

• BaseUnit: BU type A0

• Color Code: CC00

• I&M Data: Yes (I&M0 I&M3)

• Isochronous Mode: Yes

Engineering Compatibility

• TIA Portal: STEP 7 V18 or higher (HSP 0416 required)

• STEP 7: V5.5 SP3 or higher

• PROFIBUS GSD: Revision 3 & 5+

• PROFINET GSDML: V2.43

Operating Modes

• Digital Output (DQ): Yes

• Energy-Saving: No

• PWM: No

• Cam Control: No

• Oversampling: No

• MSO (Module Synchronous Operation): Yes

Supply Voltage

• Rated Voltage: 24 V DC

• Range: 19.2 28.8 V DC

• Reverse Polarity Protection: Yes

Current & Power

• Current Consumption (without load): max. 20 mA

• Power Loss: typ. 1 W

• Output Voltage: 24 V DC

Address Area

• Max Address Space: 8 bytes (4 channels per submodule + QI info)

• Max Submodules: 4

BaseUnit Compatibility

• 1-wire: BU type A0

• 2-wire: BU type A0 + AUX or potential distributor

• 3-wire: BU type A0 + AUX or potential distributor

Digital Outputs

• Number of Outputs: 16

• Output Type: Source (PNP), IEC 61131 Type 0.5

• Current-Sourcing: Yes

• Current-Sinking: No

• Parameterizable: Yes

• Short-Circuit Protection: Electronic

  • Response threshold: 0.7 1.3 A

• Open-Circuit Detection: Yes

• Inductive Voltage Limiting: L+ (50 V)

• Controllable DI: Yes

Switching Capacity

• Resistive Load: 0.5 A

• Inductive Load: 0.5 A

• Lamp Load: 5 W

Load Resistance

• Minimum: 48

• Maximum: 12 k

Output Current & Delay

• Rated Output: 0.5 A

• Residual Current (Signal 0): 0.1 mA

• Delay:

  • 0 1: typ. 50 s

  • 1 0: typ. 100 s

Parallel Switching

• Uprating: No

• Redundant Load Control: Yes

Switching Frequency

• Resistive: max. 100 Hz

• Inductive: max. 0.1 Hz (higher possible see manual)

• Lamp Load: max. 10 Hz

Current Limits

Horizontal Installation

• Up to 40C: 8 A

• Up to 50C: 6 A

• Up to 60C: 4 A

Vertical Installation

• Up to 30C: 8 A

• Up to 40C: 6 A

• Up to 50C: 4 A

Cable Length

• Shielded: up to 1000 m

• Unshielded: up to 600 m

Isochronous Mode Specs

• Execution Time (TCO): min. 48 s

• Bus Cycle Time (TDP): min. 500 s

• Jitter (max): 8 s

Diagnostics & Alarms

• Diagnostics Function: Yes

• Substitute Values: Yes

• Diagnostic Alarms: Yes

Diagnostics Supported

• Supply Voltage Monitoring: Yes

• Wire Break: Yes (per channel)

• Short-circuit to M: Yes (per channel)

• Short-circuit to L+: Yes (per channel)

• Group Error: Yes

LED Indicators

• PWR LED: Green

• Channel Status: Green

• Channel Diagnostics: Green

• Module Diagnostics: Green/Red DIAG LED

Potential Separation

• Between Channels: No

• Channels Backplane Bus: Yes

• Channels Load Voltage (L+): No

• Isolation Test Voltage: 707 V DC

Safety Information

• Suitable for safety functions: No

• For safety-related tripping: Yes

  • PL d (ISO 13849-1)

  • Category 3

  • SIL 2 (IEC 62061)

Environmental & Mechanical

Ambient Temperature

• Horizontal: 30 to +60 C

• Vertical: 30 to +50 C

Altitude

• Up to 5000 m (restrictions > 2000 m)

Dimensions

• Width: 15 mm

• Height: 73 mm

• Depth: 58 mm

Weight

• Approx. 26 g
