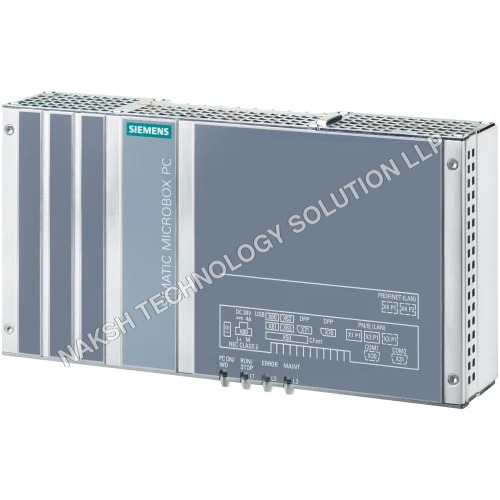

About Simatic IPC 427E Siemens HMI

SIMATIC IPC427E (Microbox PC), HD graphic onboard, 4x USB V3.0 (high current), PCIE (optional), Core i5-6442EQ; 3x Gbit Ethernet (IE/PN); Mounting onto standard rail; 8 GB; Without RS232/485, without PCIe; Windows 10 IoT Enterprise 2016 LTSB (64-bit) for Celeron, i3 and i5; Without replaceable mass storage; 480 GB solid-state drive SATA Without SIMATIC software; 24 V DC industrial power supply

Key Features of Siemens Simatic IPC 427E

• High-performance Intel processor- delivers fast and reliable computing power for complex automation tasks and data processing

• Rugged industrial design- engineered to withstand harsh environments, ensuring long-lasting reliability

• Flexible configuration options- supports multiple setups to adapt to diverse automation requirements

• Seamless connectivity- equipped with Ethernet and PROFINET for fast, stable communication within automation systems

• Compact, space-efficient build- ideal for installations where space is limited, without compromising performance

SIMATIC IPC427E (Microbox PC) 6AG4141-5BB07-0GA0

• Type: Microbox PC with HD graphics onboard
• Mounting: DIN rail, wall, portrait

General Information

• Processor options:

  • Celeron G3902 (2C/2T, 1.6 GHz, 2 MB Cache)

  • Core i3-6102E (2C/4T, 1.9 GHz, 3 MB Cache)

  • Core i5-6442EQ (4C/4T, 1.9 (2.7) GHz, 6 MB Cache)

  • Xeon E3-1505L v5 (4C/8T, 2.0 (2.8) GHz, 8 MB Cache)

• Chipset: Intel C236 / Intel H110

• Graphics: Intel HD graphics controller

• Pre-installed OS: Windows 10 IoT Enterprise 2016 LTSB (64-bit, optional Windows 7/Windows Embedded)

• Memory: DDR4-2400 SO-DIMM, 4 / 8 / 16 GB (ECC optional), max 16 GB

• Storage: SSD 128 / 240 / 480 GB; 2.5 SATA 320 GB

Interfaces

• Industrial Ethernet: 3x RJ45 (100 Mbps / 1 Gbps)

• USB: 4x USB 3.0

• Video: 2x DisplayPort

• PCIe slots: 2 (optional), CFast slot: 1

Power Supply

• Voltage: 24 V DC

• Mains buffering: 20 ms

Monitoring & Diagnostics

• Temperature monitoring: Yes

• Watchdog: Yes

• Fan: No

• Optional network monitoring

EMC & Interference Immunity

• Electrostatic discharge: 6 kV contact, 8 kV air (IEC 61000-4-2)

• High-frequency radiation: 10 V/m (801,000 MHz / 1.42 GHz), 3 V/m (22.7 GHz)

• Surge / burst: 12 kV depending on line / signal cables

• Magnetic fields: 100 A/m, 50 Hz (IEC 61000-4-8)

• Emission: EN 61000-6-3, EN 61000-6-4, CISPR 22 Class B, FCC Class A

Protection & Standards

• IP rating: IP20

• CE mark, UL 508, cULus, RCM, KC, EAC, FCC

• Optional hazardous area use: ATEX Zone 2, IECEx Zone 2, cULus Class I Zone 2

• Marine approvals: GL, ABS, BV, DNV, KRS, LRS, NK

Environmental Conditions

• Operating temperature: 0 C to 55 C

• Storage temperature: -40 C to 70 C

• Relative humidity: 580% (operation), 595% (storage), no condensation

• Vibration resistance: 10 Hz58 Hz: 0.075 mm, 58 Hz200 Hz: 9.8 m/s

• Shock: 50 m/s (5 g), 30 ms, 100 shocks

Dimensions & Weight

• Width: 262 mm

• Height: 139.7 mm

• Depth: 55.5 mm
