About SINAMICS Power Module PM240-2

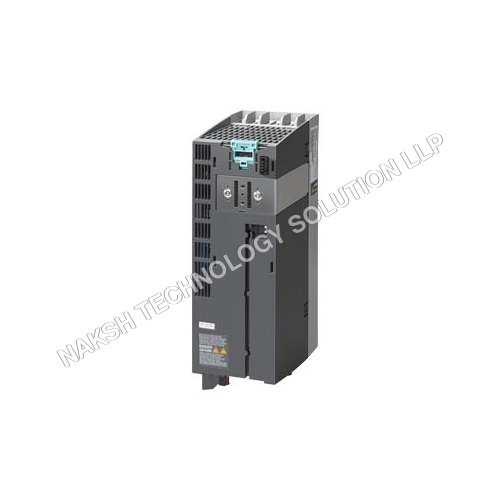

SINAMICS PM240-2 Power Module

Article No.: 6SL3210-1PE18-0UL1
Technical data are subject to change.

Rated Data

Input

• Phases: 3 AC

• Line voltage: 380 480 V 10 %

• Line frequency: 47 63 Hz

• Rated current:

  • LO: 10.10 A

  • HO: 8.80 A

Output

• Phases: 3 AC

• Rated voltage: 400 V IEC / 480 V NEC

• Rated power:

  • LO: 3.0 kW (4.0 hp)

  • HO: 2.2 kW (3.0 hp)

• Rated current:

  • LO: 7.70 A

  • HO: 5.90 A

• Max. output current: 11.80 A

• Pulse frequency: 4 kHz

• Output frequency:

  • Vector control: 0 200 Hz

  • V/f control: 0 550 Hz

Overload Capability

General Technical Specifications

• Power factor : 0.85

• Offset factor cos : 0.95

• Efficiency : 0.96

• Sound pressure level (1 m): 72 dB

• Power loss: 0.12 kW

• Filter class: Not integrated

Ambient Conditions

• Cooling: Internal air cooling

• Cooling air requirement: 0.005 m/s

• Installation altitude: 1,000 m

• Ambient temperature:

  • Operation LO: -10 40 C

  • Operation HO: -10 50 C

  • Transport / Storage: -25 55 C

• Relative humidity: Max. 95 %, no condensation

Connections

• Line side: Plug-in screw terminals, 1.5 2.5 mm (AWG 16 14)

• Motor side: Plug-in screw terminals, 1.5 2.5 mm (AWG 16 14)

• Max. motor cable length:

  • Shielded: 50 m

  • Unshielded: 100 m

Mechanical Data

• Degree of protection: IP20 / UL open type

• Frame size: FSA

• Net weight: 1.40 kg

• Dimensions (W H D): 73 196 165 mm

Standards / Compliance

• UL, cUL, CE, C-Tick (RCM), SEMI F47

• CE marking: Low-voltage directive 2006/95/EC

Efficiency / Losses (IEC61800-9-2)

• Efficiency class: IE2

• Converter losses relative to rated apparent power: 1.1 % 1.9 %

• Losses depend on relative torque current (I) vs. motor stator frequency (f)

• Values valid for basic version without optional components
