SINAMICS POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-10% 47-63HZ OUTPUT HIGH OVERLOAD: 3KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -10 TO +50 DEG C OUTPUT LOW OVERLOAD: 4KW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -10 TO +40 DEG C 291 X 100 X 165 (HXWXD), FSB PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.6

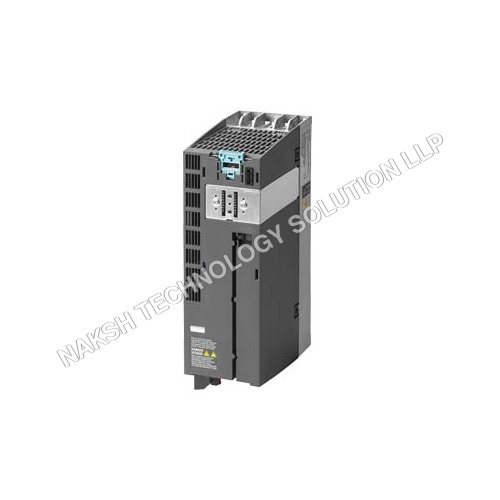

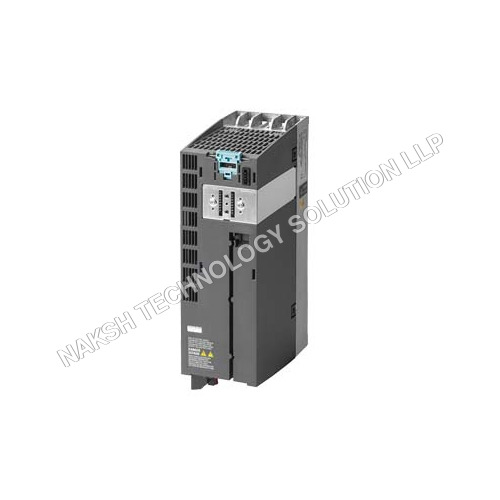

SINAMICS PM240-2 Power Module

Article No.: 6SL3210-1PE21-1UL0
Technical data are subject to change.

Rated Data

Input

• Phases: 3 AC

• Line voltage: 380 480 V 10 %

• Line frequency: 47 63 Hz

• Rated current:

  • LO: 13.30 A

  • HO: 11.60 A

Output

• Phases: 3 AC

• Rated voltage: 400 V IEC / 480 V NEC

• Rated power:

  • LO: 4.00 kW (5.00 hp)

  • HO: 3.00 kW (4.00 hp)

• Rated current:

  • LO: 10.20 A

  • HO: 7.70 A

• Max. output current: 15.40 A

• Pulse frequency: 4 kHz

• Output frequency:

  • Vector control: 0 200 Hz

  • V/f control: 0 550 Hz

Overload Capability

General Technical Specifications

• Power factor : 0.85

• Offset factor cos : 0.95

• Efficiency : 0.97

• Sound pressure level (1 m): 72 dB

• Power loss: 0.11 kW

• Filter class: Not integrated

Ambient Conditions

• Cooling: Internal air cooling

• Cooling air requirement: 0.009 m/s

• Installation altitude: 1,000 m

• Ambient temperature:

  • Operation LO: -10 40 C

  • Operation HO: -10 50 C

  • Transport / Storage: -25 55 C

• Relative humidity: Max. 95 %, no condensation

Connections

• Line side: Plug-in screw terminals, 1.5 6.0 mm (AWG 16 10)

• Motor side: Plug-in screw terminals, 1.5 6.0 mm (AWG 16 10)

• Max. motor cable length:

  • Shielded: 50 m

  • Unshielded: 100 m

Mechanical Data

• Degree of protection: IP20 / UL open type

• Frame size: FSB

• Net weight: 2.90 kg

• Dimensions (W H D): 100 292 165 mm

Standards / Compliance

• UL, cUL, CE, C-Tick (RCM), SEMI F47

• CE marking: Low-voltage directive 2006/95/EC

Efficiency / Losses (IEC61800-9-2)

• Efficiency class: IE2

• Converter losses relative to rated apparent power: 1.1 % 1.9 %

• Values depend on relative torque current (I) vs. motor stator frequency (f)

• Values valid for basic version without optional components
