TypeACPower0.4 KW Voltage 400 SIMOTICS S-1FL6 Operating voltage 3AC 400 V Pn=0.4 kW; Nn=3000 rpm M0=1.9 Nm; MN=1.27 Nm Shaft height 45 mm, with angle plug; incremental encoder 2500 incr./rev. with feather key Tolerance N without holding brake Degree of protection IP65 with sealing ring compatible with the converters SINAMICS V70 & V90

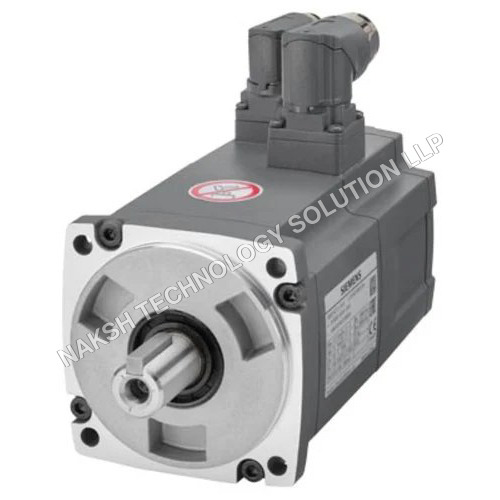

SIMOTICS S-1FL6

Article No.: 1FL6042-1AF61-2AA1
Motor Type: High Inertia, Permanent-Magnet Synchronous Motor

Engineering Data

• Rated speed: 3,000 rpm

• Rated torque (100 K): 1.27 Nm

• Rated current: 1.2 A

• Rated power: 0.40 kW / 0.54 hp

• Maximum speed: 4,000 rpm

• Maximum torque: 3.80 Nm

• Maximum current: 3.6 A

• Static torque: 1.90 Nm

• Moment of inertia: 2.700 kg·cm²

Physical Constants

• Torque constant: 1.10 Nm/A

• Thermal class: B (130 °C)

• Net weight: 3.40 kg

Ambient Conditions

• Operation temperature: 0 … 40 °C

• Relative humidity: Max. 90 % RH (no condensation at 30 °C)

Mechanical Data

• Encoder system: Incremental TTL, 2500 S/R (13 bit)

• Shaft height: 45 mm

• Shaft end: Feather key

• Radial runout tolerance: Class N

• Vibration severity grade: Grade A

• Degree of protection: IP65

• Cooling: Natural

• Design code: IM B5 (IM V1, IM V3)

• Connection type: Angular connector (rotatable)
