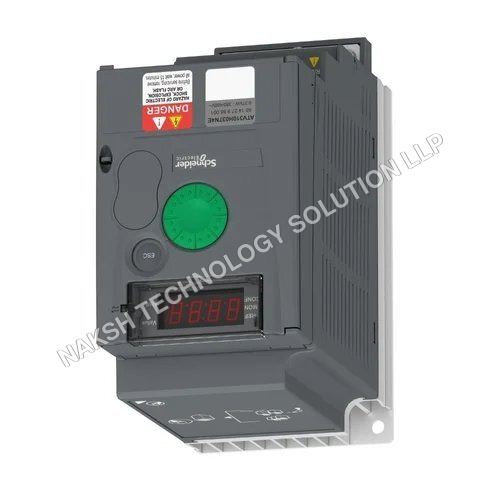

About Schneider Atv310h075n4e Drive

Looking for aSchneider Electric Altivar ATV310H075N4E Variable Speed Drivefor your industrial applications? Naksh Technology Solution LLP offers theATV310H075N4E, a0.75 kW (1 HP) Variable Frequency Drive (VFD)designed forthree-phase 380-460V AC motors, ensuringefficient motor controlfor various applications.

Key Features

• Power rating: 0.75 kW / 1 HP
• Input voltage: 3-phase 380-460V AC
• Compact and durable designfor industrial environments
• User-friendly interfacefor easy setup and operation
• Advanced motor controlfor precise speed regulation
• Built-in protection featuresto enhance reliability and safety

• Industrial automation
• HVAC systems
• Pumps and fans
• Conveyor systems
• Machine control

Easy Altivar 310 0.37 kW, 380460 V, 3 Phases

• Model: ATV310H037N4E
• Type: Variable Speed Drive (VSD) Heavy Duty
• Application: Simple machines
• Assembly Style: With heat sink / Self-cooled
• Mounting: Vertical

Electrical Data

• Supply Voltage: 380460 V AC (-15% / +10%)

• Phases: 3-phase

• Motor Power: 0.37 kW / 0.5 hp (Heavy Duty)

• Line Current: 2.1 A (380 V), 1.8 A (460 V)

• Continuous Output Current: 1.5 A (Heavy Duty)

• Maximum Transient Current: 2.3 A for 60 s

• Apparent Power: 1.4 kVA (460 V)

• Speed Drive Output Frequency: 0.5400 Hz

• Switching Frequency: 212 kHz adjustable

• Nominal Switching Frequency: 4 kHz

• Output Voltage: 380460 V three-phase

• Transient Overtorque: 170200 % of nominal motor torque

• Braking Torque: Up to 70% without braking resistor

Motor Control

• Voltage/Frequency ratio (V/f)

• Quadratic U/f Energy Saving

• Sensorless Vector Control (SVC)

• Motor Slip Compensation: Adjustable

• Speed Range: 120 (for asynchronous motor)

• Acceleration / Deceleration: Linear 0999.9 s

• Braking to Standstill: DC injection < 30 s

Inputs / Outputs

Analogue Input: 1

• Configurable: 020 mA, 010 V, 05 V

• Sampling Duration: 10 ms

• Linearity Error: 0.3%

Discrete Inputs: 4

• Programmable LI1LI4, 24 V DC

• Logic: Positive (source) / Negative (sink)

• Sampling Duration: 20 ms 1 ms

Analogue Output: 1

• Configurable: 020 mA / 010 V

• Resolution: 8-bit

Discrete Outputs: 2

• Logic output LO+, LO-

• Protected relay outputs R1A, R1B, R1C (1 C/O)

• Min Switching Current: 5 mA / 24 V DC

• Max Switching Current: 2 A inductive, 34 A resistive

Communication

• Protocol: Modbus

• Connector: RJ45 (front face)

• Physical Interface: 2-wire RS485

• Transmission Frame: RTU

• Transmission Rates: 4800, 9600, 19200, 38400 bps

• Number of Addresses: 1247

• Services: Read / Write Registers, Device Identification

Protection

• Line supply overvoltage / undervoltage

• Overcurrent between output phases and earth

• Overheating protection

• Short-circuit between motor phases

• Input phase loss protection

• Thermal motor protection via It calculation

Mechanical Data

• Height Width Depth: 143 72 130 mm

• Net Weight: 0.8 kg

• Cooling: Self-cooled

• IP Degree of Protection: IP20 (top IP4X)

• Operating Position: Vertical 10

Environment & Standards

• Operating Temperature: -10 55 C (without derating)

• Derating: 2.2% per C above 55 C (protective cover removed)

• Storage Temperature: -25 70 C

• Operating Altitude: 1000 m without derating

• Relative Humidity: 595%, without condensation

• Shock Resistance: 15 gn / 11 ms

• Pollution Resistance: Class 3S2 / 3C3

• Standards / Certifications: IEC 61800-3, IEC 61800-5-1, CE, EAC, KC

• Electromagnetic Compatibility: IEC 61000-4-2/3/4/5/6/11
