About Schneider ATV320D11M3C Drive

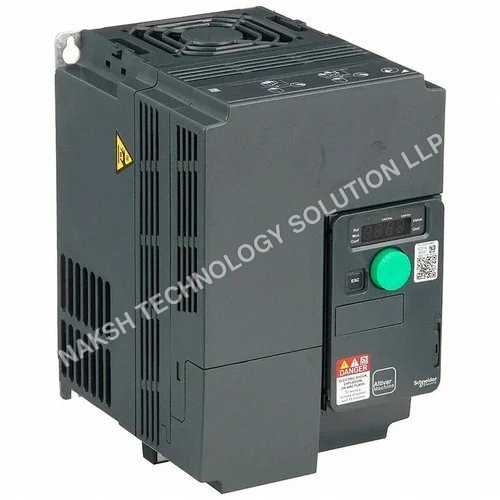

 Schneider ATV320D11M3C Drive - High-Performance VFD by Naksh Technology Solution LLP

Naksh Technology Solution LLP offers the Schneider ATV320D11M3C Variable Frequency Drive (VFD), a powerful 11kW (15HP), 380-500V AC, 3-phase drive designed for industrial motor control and automation applications. With advanced features, energy efficiency, and a robust design, this drive ensures reliable performance in demanding environments.

Key Features:

• 11kW (15HP) power rating
• Compact and durable construction for industrial applications
• Advanced motor control for optimized efficiency
• Overload protection for enhanced durability
• Ideal for pumps, conveyors, fans, and heavy-duty machinery

Get the Schneider ATV320D11M3C drive from Naksh Technology Solution LLP, your trusted partner for automation solutions. Contact us today for the best prices and expert support.

Altivar Machine ATV320 11 kW, 200240 V, 3 Phases

• Model: ATV320D11M3C
• Type: Variable Speed Drive (VSD) Compact, Wall Mount
• Application: Complex machines

Electrical Data

• Supply Voltage: 200240 V AC (-15% / +10%)

• Motor Power: 11 kW (Heavy Duty)

• Nominal Output Current: 54 A

• Line Current: 60.9 A (200 V), 51.4 A (240 V)

• Maximum Input Current per Phase: 60.9 A

• Apparent Power: 21.4 kVA (240 V)

• Prospective Line Isc: 22 kA

• Maximum Output Frequency: 0.599 kHz

• Switching Frequency: 216 kHz adjustable (Nominal 4 kHz)

• Transient Overtorque: 170200% of nominal motor torque

• Braking: By DC injection, brake chopper integrated

Motor Control

• Asynchronous Motor Profiles:

  • Voltage/Frequency ratio, 5 points

  • Energy Saving U/f (quadratic)

  • Flux Vector Control without sensor (standard & energy saving)

  • Voltage/Frequency ratio, 2 points

• Synchronous Motor Profile: Vector control without sensor

• Acceleration / Deceleration: Linear, ramp adaptation, automatic stop with DC injection

• Motor Slip Compensation: Automatic (0300% adjustable)

• 4-Quadrant Operation: Yes

Inputs / Outputs

Digital Inputs: 7

• STO safe torque off, DI1DI6 logic inputs 24 V DC, DI5 programmable as pulse 030 kHz

• Logic: Positive (source) / Negative (sink)

Digital Outputs: 3

• Open collector DQ+, DQ-, 01 kHz, 30 V DC, 100 mA

Analog Inputs: 3

• AI1: Voltage 010 V DC, 30 k

• AI2: Bipolar differential voltage 10 V DC, 30 k

• AI3: Current 020 mA (configurable), 250

Analog Output: 1

• Software configurable: 020 mA (800 ) or 010 V DC (470 ), 10 bits

Relay Outputs: Configurable R1A, R1B, R1C, R2A, R2C

• Max Switching Current: 25 A depending on load type

• Min Switching Current: 5 mA / 24 V DC

Communication

• Protocols: Modbus Serial, CANopen

• Optional Cards: CANopen, EtherCAT, Profibus DP V1, PROFINET, Ethernet Powerlink, EtherNet/IP, DeviceNet

• Method of Access: Slave CANopen

Protection

• Input phase breaks

• Overcurrent between output phases and earth

• Overheating protection

• Short-circuit between motor phases

• Thermal protection

Mechanical Data

• Dimensions (W H D): 180 330 198 mm

• Net Weight: 6.8 kg

• Operating Position: Vertical 10

• Fan Power Dissipation: 468 W

• IP Degree of Protection: IP20

• Environmental Class: 3C3 (chemical), 3S2 (dust)

Environment & Certifications

• Operating Temperature: -10 50 C (without derating), 5060 C (with derating)

• Transport Temperature: -25 70 C

• Humidity: Class 3K5

• Shock & Vibration: 150 m/s at 11 ms, 10 m/s at 13200 Hz

• Cooling Air Volume: 156 m/h

• Standards / Certifications: CE, ATEX, UL, CSA, EAC, RCM, KC; IEC 61800-5-1

• Electromagnetic Compatibility: IEC 61000-4-2/3/4/5/6/11

Schneider ATV320D11M3C Drive - High-Performance VFD by Naksh Technology Solution LLP

Naksh Technology Solution LLP offers the Schneider ATV320D11M3C Variable Frequency Drive (VFD), a powerful 11kW (15HP), 380-500V AC, 3-phase drive designed for industrial motor control and automation applications. With advanced features, energy efficiency, and a robust design, this drive ensures reliable performance in demanding environments.

Key Features:

• 11kW (15HP) power rating
• Compact and durable construction for industrial applications
• Advanced motor control for optimized efficiency
• Overload protection for enhanced durability
• Ideal for pumps, conveyors, fans, and heavy-duty machinery

Get the Schneider ATV320D11M3C drive from Naksh Technology Solution LLP, your trusted partner for automation solutions. Contact us today for the best prices and expert support.

Technical Details
