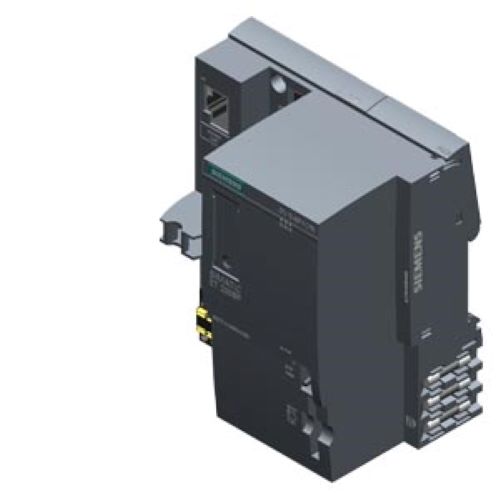

SIMATIC DP, CPU 1514SP F-2 PN for ET 200SP, central processing unit with 900 KB work memory for program and 3.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 6 ns bit performance, SIMATIC Memory Card required, Bus Adapter required for 1st interface

Siemens SIMATIC CPU 1514SP F-2 PN (6ES7514-2SN03-0AB0)

General Information:

• Product type: CPU 1514SP F-2 PN

• HW status: FS04

• Firmware: V4.0 (update possible)

• I&M data: I&M0 to I&M3

• Hot swapping: Yes (Multi-hot swapping)

• Isochronous mode: Yes (PROFINET only)

• SysLog: Yes

• Configuration: STEP 7 TIA Portal V20 (FW V4.0) / V18 (FW V3.0) or higher

• Control via dataset: Yes

Supply Voltage:

• Rated: 24 V DC

• Range: 19.2 28.8 V DC

• Reverse polarity protection: Yes

• Mains buffering: 10 ms

Power & Current:

• Rated current: 0.48 A

• Max current: 0.7 A

• Inrush current: 1.34 A (It 0.3 As)

• Power to backplane bus: 8.05 W

• Power loss: 3.5 W

Memory:

• SIMATIC memory card slot: 1 (required)

• Integrated program memory: 900 KB

• Integrated data memory: 3.5 MB

• Max load memory: 32 GB

CPU Performance:

• Bit operations: 6 ns

• Word operations: 7 ns

• Fixed-point arithmetic: 9 ns

• Floating-point arithmetic: 37 ns

Blocks & Data:

• DBs: 159999 (user), 6000060999 (system), max size 3.5 MB

• FBs/FCs: 065535, max size 900 KB each

• OBs: max 900 KB, includes cyclic, time alarm, startup, error OBs, etc.

• Retentive memory: 512 KB (timers, counters, flags, DBs, technology data)

• Flags: max 16 KB, 8 clock memories

• Local data: max 64 KB per priority class

Address Area:

• IO modules: 8192

• Inputs/Outputs: 32 KB each in process image

• Per integrated IO subsystem: 8 KB each

• Address space per module: 288 B

• Address space per station: 2560 B

Hardware Configuration:

• Distributed IO systems: 64

• DP Masters: via CM 1

• Integrated IO Controllers: 2

• Rack modules: max 82

• ET 200SP modules: max 64

• ET 200AL modules: max 16

Clock & Time:

• Hardware clock, backup 6 weeks, max deviation 10 s/day

• Clock synchronization supported via DP, AS, Ethernet (NTP)

• Operating hours counter: 16

Interfaces:

• PROFINET: 2 (1st: 2-port switch, 2nd: 1 port)

• PROFIBUS: 1 (via CM DP module)

• RS-485: 1 port (via CM DP module)

• Ethernet: 100 Mbps, autonegotiation, autrocrossing, industrial status LED

• PROFINET IO Controller & Device services: IRT, PROFIenergy, Prioritized startup, Security Class 1

Communication & Protocols:

• PG/OP, S7 routing, S7 communication (client/server)

• Open IE: TCP/IP, ISO-on-TCP, UDP, DHCP, DNS, SNMP, DCP, LLDP

• Web server: HTTP, HTTPS, web API (max 100 sessions, 4 simultaneous HTTP calls)

• OPC UA: Runtime license required, Client/Server, Security policies, Max nodes: 20,000

• MODBUS TCP supported

• S7 Message functions: max 64 login stations, 500 subscriptions, 8,000 tags/attributes

Diagnostics & Forcing:

• LEDs: RUN/STOP, ERROR, MAINT, PWR, LINK TX/RX

• Forcing supported (200 variables max)

• Diagnostic buffer: max 3200 entries, 500 powerfail-proof

• Traces: 4, max memory 512 KB per trace

Motion & Technology Objects:

• Motion Control: Yes, up to 2400 resources

• PID Controllers: PID_Compact, PID_3Step, PID-Temp

• High-speed counter: Yes

Safety & Certifications:

• Safety: PLe (ISO 13849-1), SIL 3 (IEC 61508)

• Probability of failure: PFDavg < 2.00E-05, PFH < 1.00E-09

• PROFINET Security Class 1, Signed firmware update, Secure Boot, Safe data removal

• Environmental product declaration: Global warming potential 83.2 kg CO eq

Ambient Conditions:

• Horizontal: -30 to 60 C, no condensation

• Vertical: -30 to 50 C, no condensation

• Max altitude: 5000 m (restrictions >2000 m)

Programming & Security:

• Languages: LAD, FBD, STL, SCL, GRAPH (CFC not supported)

• Know-how & access protection: user program, block, read/write, write protection for failsafe, complete protection

• Max users: 100, groups: 100, roles: 50

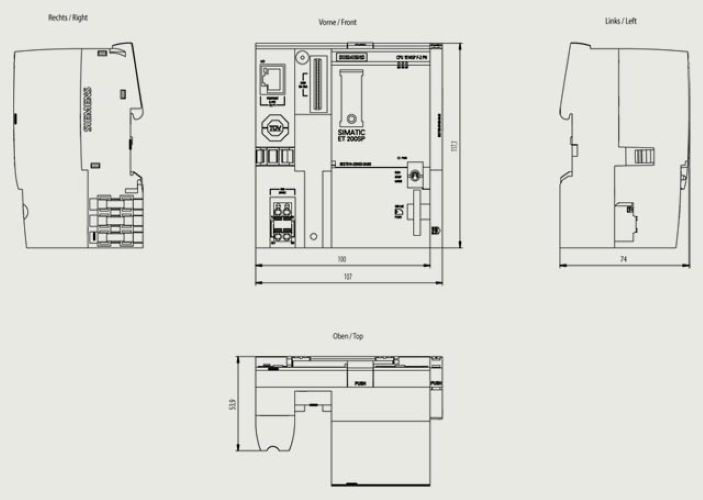

Dimensions & Weight:

• Width: 100 mm

• Height: 117 mm

• Depth: 75 mm

• Weight: 265 g
