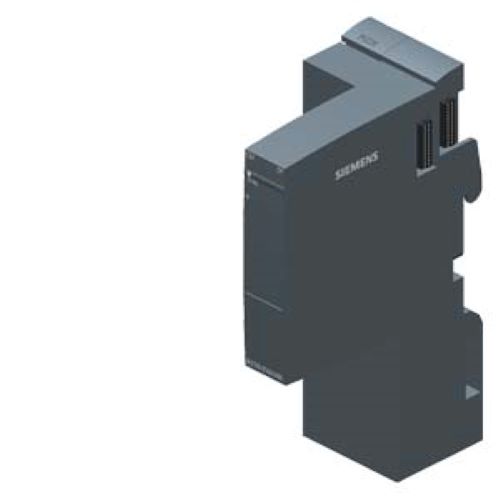

SIEMENS ET 200SP - 6ES7545-5DA00-0AB0

The SIEMENS ET 200SP - 6ES7545-5DA00-0AB0 is a high-performance automation module designed for industrial environments. With a compact dimension of 35 x 117 x 74 mm, it ensures space-efficient installation on DIN rails.

Operating within a temperature range of -25C to +60C, this module guarantees reliable performance in varying conditions. It supports a rated voltage of 24V DC, making it ideal for modern automation systems.

The unit operates seamlessly at frequencies of 50/60 Hertz and offers protection at an IP20 level, safeguarding against external contaminants. It is lightweight at just 80 grams and features a durable grey finish for professional settings.

Designed to withstand up to 95% humidity, this module is suitable for challenging environments, ensuring stability and efficiency in automation applications.

Data Sheet: 6ES7545-5DA00-0AB0

SIMATIC DP CM PROFIBUS DP for ET 200SP

A communication module with a PROFIBUS DP interface (9-pin D-sub). Supports both DP Master (up to 125 slaves) and DP Slave modes.

General Information

• Product type: CM PROFIBUS DP

• Hardware status: FS04

• Engineering software: STEP 7 TIA Portal (from V13 Update 3)

Supply Voltage

• Rated voltage: 24 V DC

• Range: 19.228.8 V DC

• Reverse polarity protection: Yes

Interface (RS-485 / PROFIBUS)

Supported Protocols

• PROFIBUS DP Master

• PROFIBUS DP Device

• SIMATIC Communication

PROFIBUS DP Master

• Max. DP devices: 125

• Services:

  • PG/OP communication

  • Activate/deactivate DP devices

  • No equidistance

  • No isochronous mode

PROFIBUS DP Device

• Max transmission rate: 12 Mbit/s

• Automatic baud rate detection: Yes

• Address area: Max. 120

• User data per area: Up to 128 bytes

Available Services

• PG/OP communication (when active)

• Routing (when active)

• S7 communication (when active)

• Slave-to-slave exchange: Only passive publisher

• DPV1 supported

Transfer Memory

• Inputs: 244 bytes

• Outputs: 244 bytes

RS-485 Interface

• Max transmission rate: 12 Mbit/s

• Max cable length: 100 m

Diagnostics

• Diagnostic functions: Yes

• LED indication: DIAG (Green/Red)

Electrical Isolation

• Isolation between backplane bus and interface: Yes

Environmental Conditions

Operating Temperature

• Horizontal: 25 C to +60 C

• Vertical: 25 C to +50 C

• No condensation allowed

Altitude

• Up to 5000 m

• For >2000 m, see manual

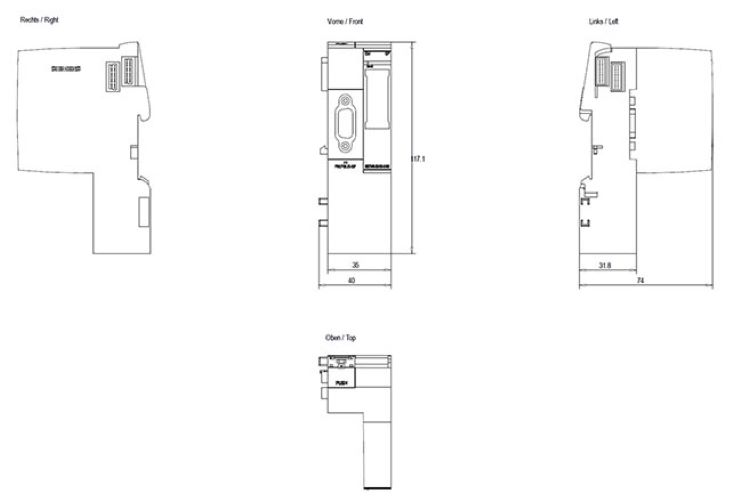

Mechanical Data

• Width: 35 mm

• Height: 117 mm

• Depth: 75 mm

• Weight: approx. 80 g
