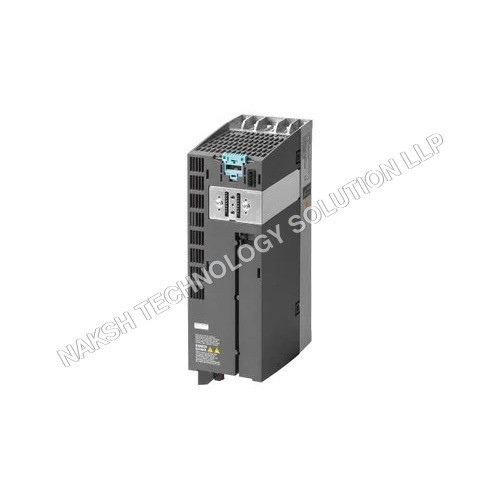

SINAMICS Power Module PM240-2 unfiltered with integrated braking chopper 380-480 V 3 AC +10/-10% 47-63 Hz Power high overload: 1.5kW at 200% 3s, 150% 57s, 100% 240 s; Ambient temperature -10 to +50 deg C; power low overload: 2.2kW at 150% 3s, 110% 57s, 100% 240 s; Ambient temperature -10 to +40 deg C 196x 73x 165 (HxWxD), FSA Degree of protection IP20 without Control Unit and operating unit Released as of CU firmware version V4.6

SINAMICS Power Module PM240-2

• Article No.: 6SL3210-1PE16-1UL1
• Type: Power Module
• Phases: 3 AC
• Cooling: Internal air cooling (IP20 / UL open type)
• Frame Size: FSA

Input Data

• Line Voltage: 380480 V 10%

• Line Frequency: 4763 Hz

• Rated Current:

  • Low Overload (LO): 7.70 A

  • High Overload (HO): 6.10 A

Output Data

• Phases: 3 AC

• Rated Voltage: 400 V IEC / 480 V NEC

• Rated Power:

  • LO: 2.2 kW / 3 hp

  • HO: 1.5 kW / 2 hp

• Rated Current:

  • LO: 5.90 A

  • HO: 4.10 A

• Maximum Output Current: 8.90 A

• Pulse Frequency: 4 kHz

• Output Frequency:

  • Vector Control: 0200 Hz

  • V/f Control: 0550 Hz

Overload Capability

General Technical Data

• Power Factor (): 0.85

• Offset Factor (cos ): 0.95

• Efficiency (): 0.96

• Sound Pressure Level: 72 dB @1m

• Power Loss: 0.10 kW

Connections

• Line Side: Plug-in screw terminals, 1.52.5 mm (AWG 1614)

• Motor Side: Plug-in screw terminals, 1.52.5 mm (AWG 1614)

• Max Motor Cable Length:

  • Shielded: 50 m

  • Unshielded: 100 m

Mechanical Data

• Dimensions (W H D): 73 196 165 mm

• Net Weight: 1.40 kg (3.09 lb)

• Degree of Protection: IP20 / UL open type

Ambient Conditions

• Operation LO: -10 40 C

• Operation HO: -10 50 C

• Storage / Transport: -25 55 C

• Relative Humidity: Max. 95% RH, no condensation

• Installation Altitude: 1,000 m
