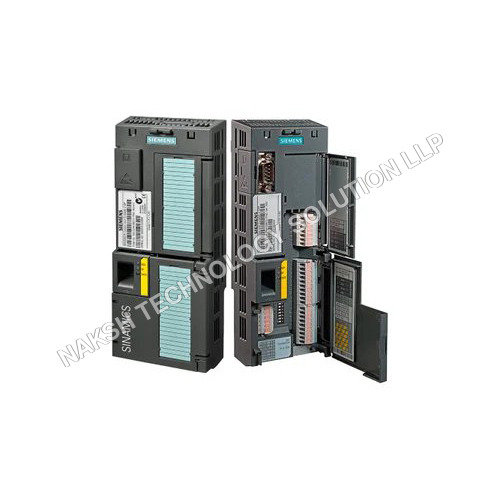

SIEMENS G120 CONTROL UNIT 6SL3244-0BB12-1BA1

The Siemens G120 Control Unit 6SL3244-0BB12-1BA1 is designed for seamless industrial automation applications, ensuring performance and durability. Engineered with a robust aluminum construct and finished with a matt black surface, this control unit is lightweight at 0.49 kg and compact with dimensions of 73 x 199 x 46 mm. It operates on a rated voltage of 24V DC and supports a 3-phase AC system. With an operating temperature range of -10C to 55C and a humidity tolerance of up to 95%, it is built for reliable operation in challenging environments. Featuring a protection level of IP20, this unit ensures safety during use. Its power efficiency is showcased by its maximum power consumption of 0.50 A and minimal power loss of 5.50 W. Covered by a 1-year warranty, the Siemens G120 Control Unit is a trusted solution for optimizing industrial processes.

Electrical Data

• Operating Voltage:

  • Via Power Module: DC 24 V

  • External Supply: DC 20 29 V

• Max. Power Consumption: 0.50 A

• Power Loss: 5.50 W

Communication

• RS485

Inputs / Outputs

• Standard Digital Inputs: 6 (01: 11 V, 10: 5 V)

• Fail-Safe Digital Inputs: 1 (can use 2 DI Standard)

• Digital Outputs: 2 (Relay changer)

• Analog / Digital Inputs: 2 (Differential input)

• Analog Outputs: 2 (Non-isolated)

Control Techniques

• V/f linear / square-law / parameterizable: Yes

• V/f with Flux Current Control (FCC): Yes

• V/f ECO linear / square-law: Yes

• Sensorless Vector Control: Yes

• Vector Control with Sensor: No

• Encoderless Torque Control: Yes

• Torque Control with Encoder: No

Ambient Conditions

• Operation Temperature: -10 55 C

• Storage Temperature: -40 70 C

• Max Relative Humidity: 95%

Connections

• Signal Cable: 0.05 1.50 mm (AWG 28 16)

Mechanical Data

• Degree of Protection: IP20 / UL open type

• Net Weight: 0.49 kg

• Dimensions (W H D): 73 199 46 mm

Technical Details
