NAKSH TECHNOLOGY We are supplier of Siemens Sinamics G120. The CU controls and monitors the PM and the connected motor in several operating modes that can be selected. It supports communications to a local control as well as to monitoring devices and equipment. Typical Uses sinamics G120 is especially suitable as universal drive in the whole of industry and the trades, in sectors such as auto mobile, textiles, printing, chemical as well as in general higher-level applications in conveyor systems.

Specifications:

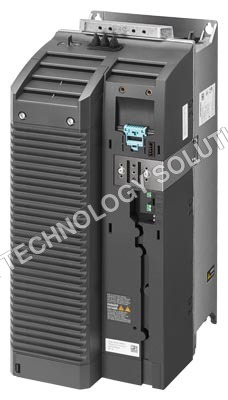

SINAMICS G120 POWER MODULE PM240-2 WITHOUT FILTER WITH BUILT IN BRAKING CHOPPER 3AC380-480V +10/-20% 47-63HZ OUTPUT HIGH OVERLOAD: 30KW FOR 200% 3S,150% 57S,100% 240S AMBIENT TEMP -20 TO +50 DEG C (HO) OUTPUT LOW OVERLOAD: 37kW FOR 150% 3S,110% 57S,100% 240S AMBIENT TEMP -20 TO +40 DEG C (LO) 472 X 200 X 237 (HXWXD), FSD PROTECTION IP20 WITHOUT CONTROL UNIT AND PANEL APPROVED FOR CU FIRMWARE- VERSION V4.7 HF8

Data Sheet SINAMICS Power Module PM240-2

MLFB: 6SL3210-1PE27-5UL0

Rated Data

• Rated Power IEC 400 V (HO): 30.00 kW

• Rated Power IEC 400 V (LO): 37.00 kW

• Rated Power NEC 480 V (HO): 40.00 hp

• Rated Power NEC 480 V (LO): 50.00 hp

• Rated Voltage: 400 V

• Efficiency (): 0.98

• Power Factor (): 0.99

• Offset Factor (cos ): 0.95

Electrical Input

• Number of Phases: 3 AC

• Line Voltage: 380 480 V 10%

• Line Frequency: 47 63 Hz

Electrical Output

• Rated Current (LO): 75.00 A

• Rated Current (HO): 60.00 A

• Max Output Current: 120.00 A

• Output Frequency (V/f Control): 0 550 Hz

• Output Frequency (Vector Control): 0 200 Hz

• Pulse Frequency: 4 kHz

• Power Loss: 1.01 kW

• Sound Pressure Level (1 m): 72 dB

Overload Capability

Low Overload (LO)

• 110% for 57 s (per 300 s cycle)

• 150% for 3 s (per 300 s cycle)

High Overload (HO)

• 150% for 57 s (per 300 s cycle)

• 200% for 3 s (per 300 s cycle)

Ambient Conditions

• Operation (LO): -20 40 C

• Operation (HO): -20 50 C

• Storage: -40 70 C

• Transport: -40 70 C

• Relative Humidity: 95% (no condensation)

• Cooling: Internal air cooling

• Cooling Air Requirement: 0.055 m/s

• Installation Altitude: 1000 m

Compliance & Standards

• CE, UL, cUL, RCM (C-Tick), SEMI F47

• Low Voltage Directive: 2006/95/EC

Mechanical Data

• Height: 472 mm

• Width: 237 mm

• Depth: 200 mm

• Net Weight: 17.00 kg

• Degree of Protection: IP20 / UL Open Type
