SIEMENS LOGO PLC 6ED1052-1HB08-0BA2

About SIEMENS LOGO PLC 6ED1052-1HB08-0BA2

LOGO! 24RCE, logic module,display power supply / I/O: 24 V AC/24 V DC/relay, 8 DI/4 DO, memory 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable cloud connection, MQTT in all LOGO! 8.4 basic units

Data Sheet: 6ED1052-1HB08-0BA2

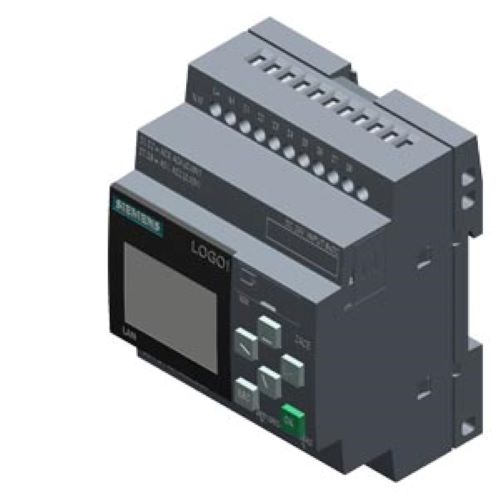

Siemens LOGO! 24RCE Logic Module

General Description

LOGO! 24RCE is a compact logic module with display. It supports 24 V AC / 24 V DC, includes 8 digital inputs, 4 relay outputs, Ethernet connectivity, integrated web server, data logging, and supports user-defined web pages. Compatible with LOGO! Soft Comfort V8.4 or higher and supports cloud connection & MQTT.

Display

• Integrated display: Yes

Mounting

• Mounting: 35 mm DIN rail

• Width: 4 spacing units

Supply Voltage

DC Supply:

• Rated value: 24 V DC

• Range: 20.4 V to 28.8 V

AC Supply:

• Rated value: 24 V AC

• Frequency range: 4763 Hz

Clock / Timer

• Time switching clocks: 400

• Power reserve: 480 hours

Digital Inputs

• Number of inputs: 8

Digital Outputs

• Number of outputs: 4 relay outputs

Relay Output Ratings:

• Inductive load: max. 3 A

• Resistive load: max. 10 A

• Short-circuit protection: No (external fuse required)

EMC

• Radio interference emission EN 55011:

  • Limit Class B (suitable for residential areas)

Approvals / Certificates

• CE: Yes

• UL: Yes

• FM: Yes

• Marine approval: Yes

• CSA: Not separately, covered under UL

• IEC 61131 compliant: Yes

• VDE 0631 compliant: Yes

Environmental Data

• Environmental product declaration: Yes

Global warming potential (CO equivalent):

• Total: 51.5 kg

• Production: 9.64 kg

• Operation: 42.1 kg

• End of life: 0.364 kg

Ambient Conditions

Operating temperature:

• Min: 20C (no condensation)

• Max: 55C

Storage temperature:

• Min: 40C

• Max: 70C

Altitude:

• 1000 m to +2000 m (1080 hPa to 795 hPa)

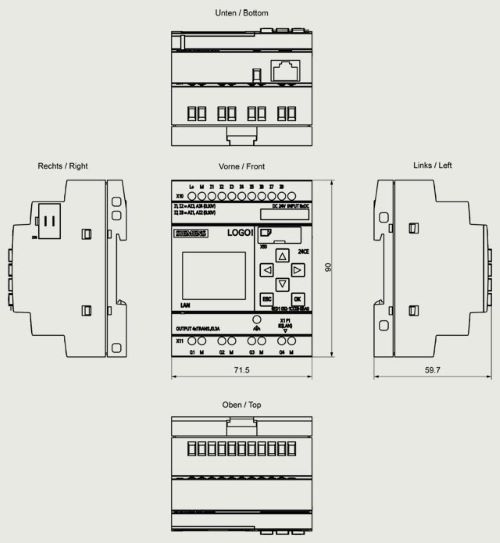

Dimensions

• Width: 71.5 mm

• Height: 90 mm

• Depth: 60 mm
