SIEMENS LOGO PLC 6ED1052-2CC08-0BA2

About SIEMENS LOGO PLC 6ED1052-2CC08-0BA2

LOGO! 24CEo, logic module, without display, power supply / I/O: 24 V/24 V/24 V trans., 8 DI (4 AI)/4 DO, SP. 400 blocks, modularly expandable, Ethernet, integrated web server, data log, user-defined web pages, standard microSD card for LOGO! Soft Comfort V8.4 or higher, older projects executable, cloud connection, MQTT in all LOGO! 8.4 basic units

Data Sheet: 6ED1052-2CC08-0BA2

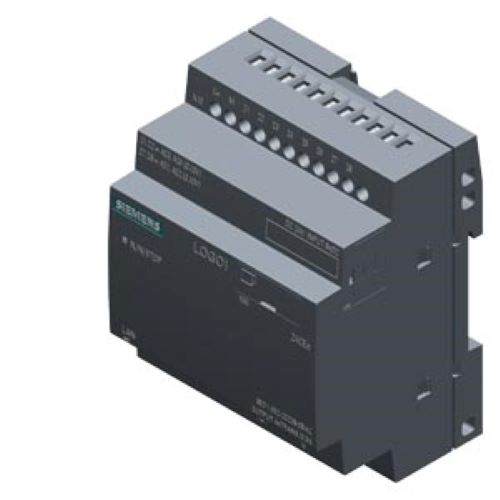

Siemens LOGO! 24CEo Logic Module (Without Display)

General Description

LOGO! 24CEo is a compact logic module without display. It supports 24 V DC supply, 8 digital inputs (4 can be used as analog 010 V), 4 transistor outputs, Ethernet, integrated web server, data logging, user-defined web pages, and supports cloud & MQTT. Compatible with LOGO! Soft Comfort V8.4 or higher.

Mounting

• 35 mm DIN rail

• Width: 4 spacing units

Supply Voltage

• Rated value: 24 V DC

• Operating range: 20.4 V to 28.8 V

Clock / Timer

• Time switching clocks: 400 max

• Power reserve: 480 hours

Digital Inputs

• Total inputs: 8

• Analog-capable inputs: 4 (010 V)

Digital Outputs

• Outputs: 4 transistor outputs

• Short-circuit protection: Yes (electronic, 1 A)

Output Current:

• Signal "1": max. 0.3 A (055C)

EMC

• EN 55011 radio interference

  • Limit Class B (suitable for residential areas)

Approvals / Certifications

• CE: Yes

• UL: Yes

• FM: Yes

• CSA: Covered under UL

• Marine approval: Yes

• IEC 61131 compliant: Yes

• VDE 0631 compliant: Yes

Environmental Data

• Environmental product declaration: Yes

Global Warming Potential (CO equivalent):

• Total: 51.5 kg

• Production: 9.64 kg

• Operation: 42.1 kg

• End of life: 0.364 kg

Ambient Conditions

Operating temperature:

• Min: 20C (no condensation)

• Max: 55C

Storage temperature:

• Min: 40C

• Max: 70C

Altitude range:

• 1000 m to +2000 m (1080 hPa to 795 hPa)

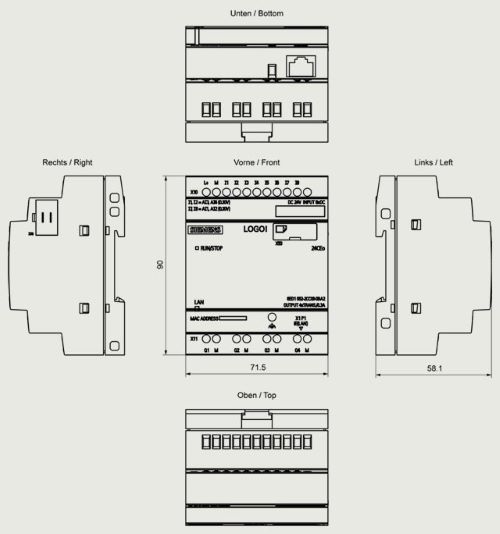

Dimensions

• Width: 71.5 mm

• Height: 90 mm

• Depth: 58 mm
