SIEMENS LOGO PLC 6ED1055-5MC08-0BA2

About SIEMENS LOGO PLC 6ED1055-5MC08-0BA2

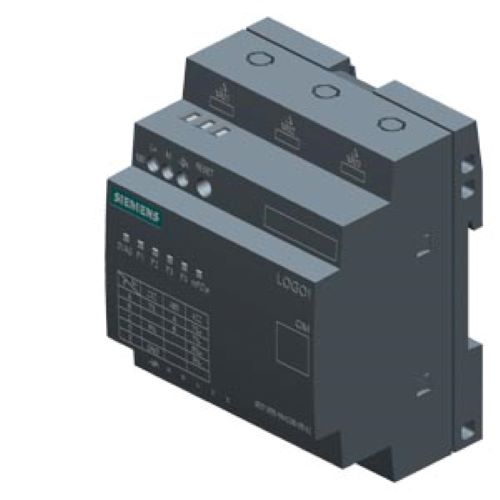

LOGO! CIM Communication Interface Module for LOGO! 8 Modbus RTU interface (RS232/485) 4-port switch; without 4G/LTE/GPS engine; without antennas; web configurator

Data Sheet 6ED1055-5MC08-0BA2

LOGO! CIM Communication Interface Module For LOGO! 8, Modbus RTU interface (RS232/485), 4-port switch Without 4G/LTE/GPS engine or antennas; Web configurator included

General Information

• Firmware version: V1.1

• FW update possible: Yes

Installation / Mounting

• Mounting on 35 mm DIN rail

• Width: 4 spacing units

Supply Voltage

• Rated value: 24 V DC; 12 V DC; 12/24 V AC/DC

• Permissible range: 10.2 28.8 V DC

• Input current: max. 1 A

Memory

• Flash: 2 MB NOR flash

Time of Day

• Clock synchronization supported: Yes

Interfaces

• Industrial Ethernet interfaces: 4 (4-port switch)

• Other interfaces: 1 mini PCIe for 4G module

Protocols / Communication

• Web server supported: Yes

• S7 basic communication: Yes

• LOGO! communication: Yes

Diagnostics / Status

• RUN/STOP LED: Yes

EMC

• Emission of radio interference: EN 55011, Limit Class B (residential areas)

Standards / Approvals

• CE mark: Yes

• UL / cULus approval: Yes

• FM approval: Yes

• RCM (formerly C-TICK): Yes

• KC approval: Yes

• EAC (formerly GOST-R): Yes

• IEC 61131 compliant: Yes

• VDE 0631 compliant: No

• Marine approval: No

Ecological Footprint

• Environmental product declaration: Yes

• Global warming potential (CO eq):

  • Total: 208 kg

  • Production: 6.99 kg

  • Operation: 201 kg

  • End of life: -0.124 kg

Ambient Conditions

• Operating temperature: -20 C to 55 C

• Storage/transport temperature: -40 C to 70 C

• Relative humidity: max. 95% (no condensation)

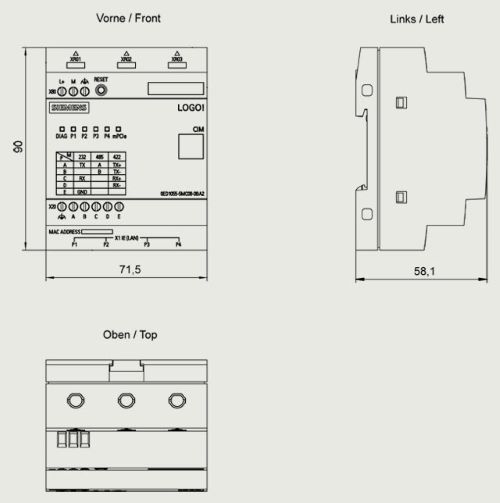

Dimensions

• Width: 71.5 mm

• Height: 90 mm

• Depth: 58.5 mm (without antenna sockets)

• Weight: approx. 200 g
