SIEMENS S7-1200 PLC MODULE 6ES7223-1BH32-0XB0

About SIEMENS S7-1200 PLC MODULE 6ES7223-1BH32-0XB0

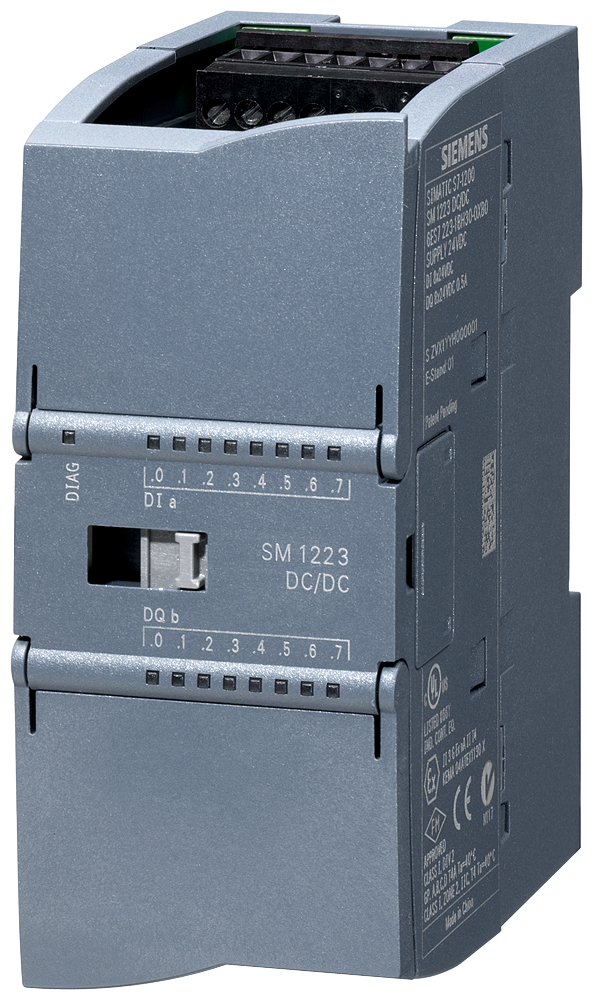

Siemens S7-1200 Digital I/O Module SM 1223

Product Code: 6ES7223-1BH32-0XB0

General Information:

• Type: SM 1223

• Digital Inputs: 8 DI, 24 V DC, Sink/Source

• Digital Outputs: 8 DO, transistor 0.5 A

• Input Groups: 2

• Output Groups: 1

Supply Voltage & Power:

• Rated Value: 24 V DC

• Permissible Range: 20.4 28.8 V DC

• Backplane Bus Current: Max. 145 mA

• Power Loss (typical): 2.5 W

Digital Inputs:

• Number of Inputs: 8

• Parallel Switching: Yes

• Input Voltage:

  • Signal "0": 5 V DC at 1 mA

  • Signal "1": 15 V DC at 2.5 mA

• Input Current:

  • Signal "0" max: 1 mA

  • Signal "1" min: 2.5 mA, typ: 4 mA

• Input Delay (parameterizable): 0.2 ms, 0.4 ms, 0.8 ms, 1.6 ms, 3.2 ms, 6.4 ms, 12.8 ms

• Number of Controllable Inputs: Max. 8 (all mounting positions, horizontal up to 50 C, vertical up to 40 C)

• Cable Length: Shielded max. 500 m, Unshielded max. 300 m

Digital Outputs:

• Number of Outputs: 8

• Current-Sinking/Sourcing: Not specified (external short-circuit protection required)

• Switching Capacity:

  • Resistive load: Max. 0.5 A

  • Lamp load: Max. 5 W

• Output Voltage:

  • Signal "0": Max. 0.1 V (with 10 k load)

  • Signal "1": Min. 20 V DC

• Output Current: Signal "1" rated: 0.5 A; Signal "0" residual max: 10 A

• Output Delay: "0""1" max. 50 s; "1""0" max. 200 s

• Total Current per Group: Max. 4 A (horizontal installation up to 50 C)

• Cable Length: Shielded max. 500 m, Unshielded max. 150 m

Diagnostics & Status:

• Diagnostic Alarm: Yes

• LED Indicators: Inputs and outputs status

Potential Separation & Isolation:

• Digital Inputs: Between channels (groups of 2)

• Digital Outputs: Between channels (groups of 1)

• Between Channels & Backplane Bus: 500 V AC

Degree of Protection:

• IP Rating: IP20

Environmental / Ecological:

• Environmental Product Declaration: Yes

• Global Warming Potential (CO2 eq):

  • Total: 123 kg

  • Production: 12.1 kg

  • Operation: 111 kg

  • End-of-life: -0.434 kg

Ambient Conditions:

• Operating Temperature: -20 C to 60 C (horizontal), -20 C to 50 C (vertical)

• Temperature Change: 3 C/min, permissible range 555 C

• Storage/Transport Temperature: -40 C to 70 C

• Air Pressure: 660 1080 hPa

• Relative Humidity: Max. 95% (25 C, no condensation)

• Free Fall: Max. 0.3 m, 5 times in package

Connection & Mechanics:

• Front Connector Required: Yes

• Enclosure Material (Front): Plastic

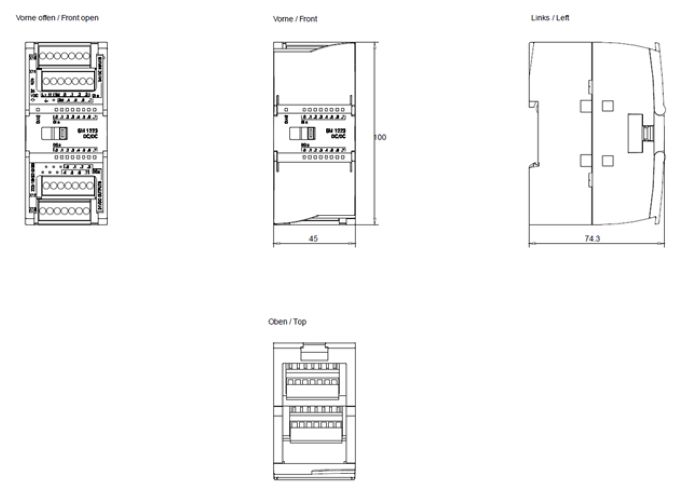

• Dimensions: 45 100 75 mm (W H D)

• Weight: 210 g
