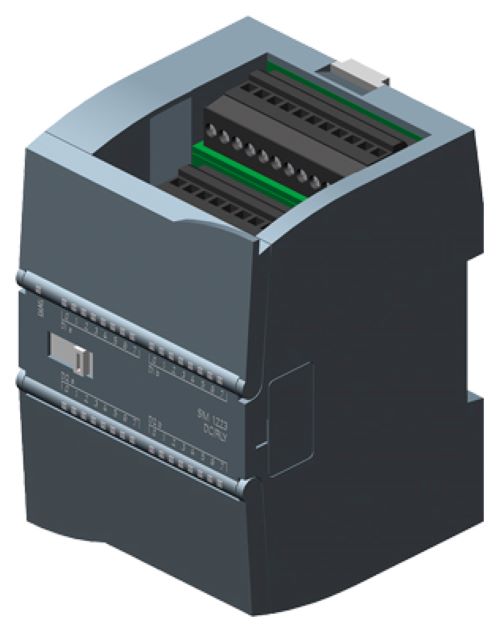

SIEMENS S7-1200 PLC MODULE 6ES7223-1PL32-0XB0

About SIEMENS S7-1200 PLC MODULE 6ES7223-1PL32-0XB0

Siemens S7-1200 Digital I/O Module SM 1223 (Relay)

Product Code: 6ES7223-1PL32-0XB0

General Information:

• Type: SM 1223

• Digital Inputs (DI): 16 24 V DC, Sink/Source

• Digital Outputs (DO): 16 Relay, 2 A

Supply Voltage & Power:

• Rated Value: 24 V DC

• Permissible Range: 20.4 28.8 V DC

• Input Current (from backplane bus 5 V DC): Max. 180 mA

• Power Loss (typical): 10 W

Digital Inputs (DI):

• Number of Inputs: 16, in groups of 2

• Input Voltage: 24 V DC

  • Signal "0": 5 V DC at 1 mA

  • Signal "1": 15 V DC at 2.5 mA

• Input Current:

  • Signal "0" max: 1 mA

  • Signal "1" min: 2.5 mA, typ: 4 mA

• Input Delay: 0.2 ms 12.8 ms, selectable

• Cable Length: Shielded max 500 m, unshielded max 300 m

Digital Outputs (DO Relay):

• Number of Outputs: 16, in groups of 4

• Switching Capacity:

  • Resistive load: 2 A

  • Lamp load: 30 W DC, 200 W AC

  • Inductive load: 2 A

• Output Voltage:

  • DC: 530 V

  • AC: 5250 V

• Output Delay: 01: 10 ms, 10: 10 ms

• Total Current per Group (horizontal installation): Max. 8 A

• Relay Coil Rated Voltage: 24 V DC

• Number of Operating Cycles: Mechanical: 10 million, Electrical: 100,000

Diagnostics & Status:

• Diagnostic Alarm: Yes

• LED Indication: Inputs and outputs

Potential Separation:

• Between Digital Inputs: Groups of 2

• Between Digital Outputs: Groups of 4

• Between Channels & Backplane Bus: 1,500 V AC, 1 min

• Permissible Potential Difference (between circuits): 750 V AC, 1 min

Mechanical & Environmental:

• IP Rating: IP20

• Front Connector: Required

• Enclosure Material: Plastic

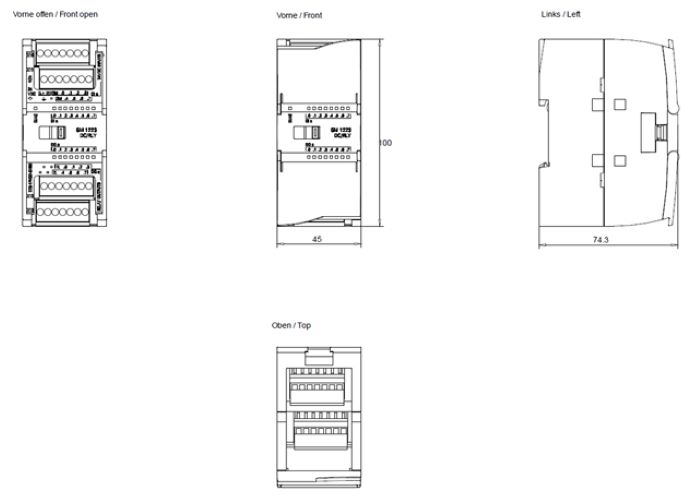

• Dimensions: W 70 H 100 D 75 mm

• Weight: 350 g

• Ambient Temperature: -20 C to 60 C (operation), -40 C to 70 C (storage)

• Relative Humidity: Max 95% (non-condensing)
