About SIEMENS S7-1200 PLC MODULE 6ES7232-4HA30-0XB0

Data Sheet: 6ES7232-4HA30-0XB0

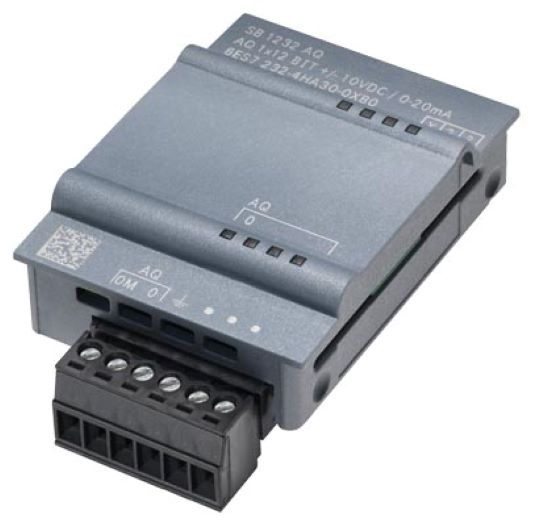

SIMATIC S7-1200 Analog Output Module (SB 1232) 1 AO, 10 V DC (12-bit) or 020 mA (11-bit resolution)

General Information

• Product type designation: SB 1232, AQ 1x12 bit

Input Current

• From backplane bus (5 V DC): typ. 15 mA

Output Voltage / Header

• Supply current (max.): 25 mA

Power Loss

• Typical power loss: 1.5 W

Analog Inputs

• Number of analog inputs: 0

Analog Outputs

• Number of analog outputs: 1

• Cycle time (all channels):

  • Voltage: 300 s (R), 750 s (1 F)

  • Current: 600 ms (1 mH), 2 ms (10 mH)

Output Ranges

Voltage

• 10 V to +10 V: Yes

Current

• 0 to 20 mA: Yes

Load Impedance

• Voltage outputs (min.): 1000

• Current outputs (max.): 600

Cable Length

• Shielded, max. 100 m (shielded, twisted pair)

Analog Value Generation

• Conversion principle: Differential

Integration & Conversion Time / Resolution

• Resolution with overrange (bit incl. sign), max.: 12 bit

Errors / Accuracies

• Temperature error relative to output range:

  • 0.5% at +25C

  • 1% up to +55C

Interrupts / Diagnostics / Status

• Alarms: Yes

• Diagnostics function: Yes

• Diagnostics LED for output status: Yes

Standards, Approvals, Certificates

• CE mark: Yes

• CSA approval: Yes

• UL approval: Yes

• cULus: Yes

• FM approval: Yes

• RCM (formerly C-TICK): Yes

• KC approval: Yes

• Marine approval: Yes

Ambient Conditions

Free Fall

• Max. 0.3 m (five times) in product package

Temperature (operation)

• Min: 20 C

• Max: +60 C

• Vertical installation max: +50 C

Temperature (storage/transport)

• Min: 40 C

• Max: +70 C

Air Pressure (IEC 60068-2-13)

• Storage/transport: 660 to 1080 hPa

Humidity

• Operation at 25C, without condensation: max. 95%

Pollutant Concentration

• SO < 0.5 ppm

• HS < 0.1 ppm

• RH < 60%, condensation-free

Mechanics / Material

• Enclosure material (front): Plastic

Dimensions

• Width: 38 mm

• Height: 62 mm

• Depth: 21 mm

Weight

• Approx.: 40 g
