SIMATIC S7-1500 compact CPU CPU 1512C-1 PN, central processing unit with work memory: 400 KB for program and 2 MB for data, 32 digital inputs, 32 digital outputs, 5 analog inputs, 2 analog outputs, 6 high-speed counters, 4 high-speed outputs for PTO/PWM/frequency output, 1st interface: PROFINET IRT with 2-port switch, 25 ns bit performance, including push-in front connector, SIMATIC Memory Card required

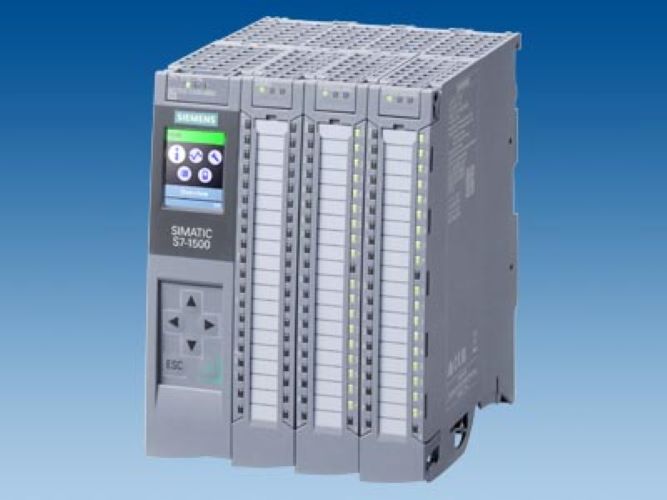

Siemens SIMATIC S7-1500 Compact CPU 1512C-1 PN

Overview:
Compact central processing unit with:

• Work memory: 400 KB for program, 2 MB for data

• 32 digital inputs, 32 digital outputs

• 5 analog inputs, 2 analog outputs

• 6 high-speed counters, 4 high-speed outputs for PTO/PWM/frequency output

• PROFINET IRT interface with 2-port switch

• Push-in front connector, SIMATIC Memory Card required

General Information

• Product type: CPU 1512C-1 PN

• HW functional status: FS01

• Firmware version: V4.0 (FW update possible)

• I&M data: Yes (I&M0 to I&M3)

• Isochronous mode: Yes (minimal OB 6x cycle of 500 s distributed)

• SysLog: Yes

• Engineering: STEP 7 TIA Portal V20 (FW V4.0) / V19 (FW V3.1) or higher

Display & Control

• Screen diagonal: 3.45 cm

• Keys: 8

• Mode buttons: 2

Power Supply

• Rated voltage: 24 V DC

• Permissible range: 19.228.8 V DC

• Reverse polarity protection: Yes

• Mains buffering: 5 ms

• Current consumption: 0.66 A (typ.), max. 1 A

• Inrush current: max. 1.22 A

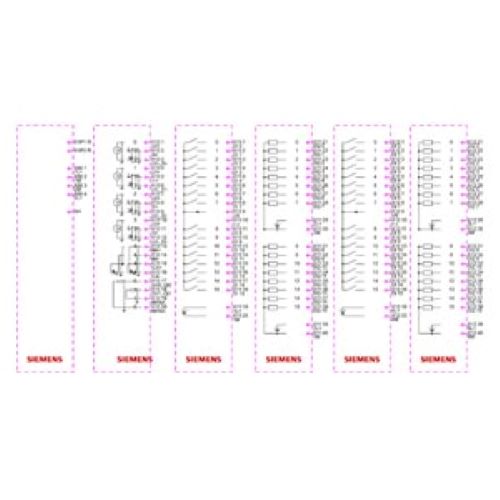

Digital Inputs & Outputs

• Digital Inputs: 32 channels, DC 24 V

• Parameterizable inputs: Yes

• Digital Outputs: 32 channels, transistor, push-pull, short-circuit protected

• High-speed output: Yes, 0.10.5 A depending on load

• PWM & frequency outputs: Parameterizable

• Cable length: Shielded max. 1000 m (600 m for tech. functions)

Analog Inputs & Outputs

• Analog Inputs: 5 (4x U/I, 1x R/RTD)

• Analog Outputs: 2 (voltage/current, short-circuit protected)

• Input voltage limits: 28.8 V max

• Input current limits: 40 mA max

• Cycle time (all channels): min. 1 ms

• Cable length: Shielded up to 800 m for U/I, 200 m for R/RTD

Encoder Support

• Supported connections: 2/3/4-wire sensors, incremental encoders

• Max counting frequency: 400 kHz (quadruple evaluation)

• Input voltage: 24 V

Interfaces

• PROFINET: 1 interface, 2 ports, integrated switch

• Protocols: IPv4, PROFINET IO Controller/Device, SIMATIC communication, Open IE, Web server, OPC UA

• Media redundancy: MRP/MRPD supported

• Number of connectable IO devices: up to 512 distributed devices

CPU Performance

• Processing times: Bit: 6 ns, Word: 7 ns, Fixed-point: 9 ns, Floating-point: 37 ns

• CPU blocks: OB, FB, FC, DB up to 400 kB each

• Counters/Timers: S7: 2048, IEC: unlimited (memory limited)

• Data blocks: Retentive memory up to 2 MB

Motion & Technology

• Motion control resources: 1120

• Positioning axes (typical 4 ms cycle): 11

• PID controllers: Compact PID, 3Step PID, PID-Temp

Security & Protection

• PROFINET Security Class 1

• Signed firmware update: Yes

• Secure Boot: Yes

• User/password protection: Yes (up to 100 users, 100 groups, 50 roles)

• Access levels: Read/write, write-only, full protection

Ambient Conditions

• Operating temperature (horizontal): -30C to 60C

• Operating temperature (vertical): -30C to 40C

• Storage/transport: -40C to 70C

• Altitude: max. 5000 m

• Relative humidity: max. 95%

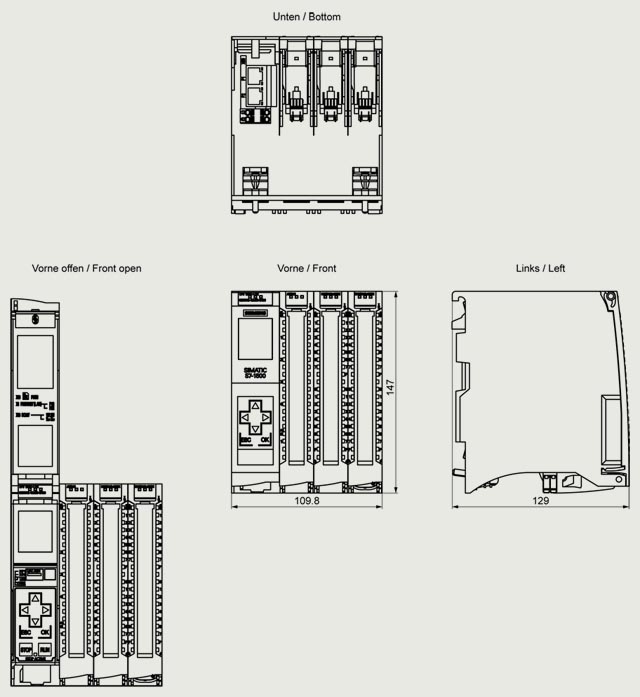

Dimensions & Weight

• Width: 110 mm

• Height: 147 mm

• Depth: 129 mm

• Weight: 1235 g
