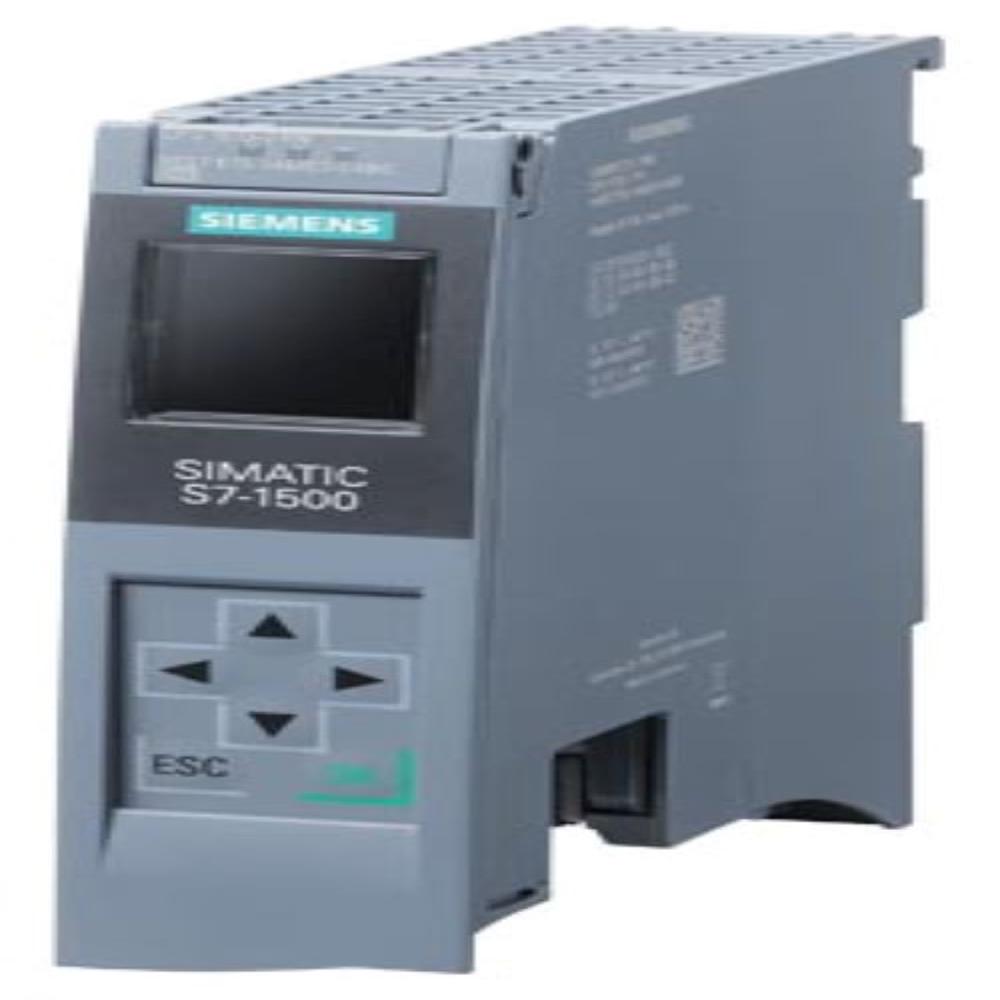

SIMATIC S7-1500, CPU 1513-1 PN, central processing unit with work memory 600 KB for program and 2.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 25 ns bit performance, SIMATIC Memory Card required - - approvals and certificates according to entry 109815653 at support.industry. siemens.com to be considered!

Data Sheet 6ES7513-1AM03-0AB0

SIMATIC S7-1500 CPU 1513-1 PN

Central processing unit with:

• Work memory: 600 KB (program), 2.5 MB (data)

• Interface: PROFINET IRT, 2-port switch

• Bit performance: 25 ns

• SIMATIC Memory Card required

General Information

• Product type: CPU 1513-1 PN

• HW status: FS04

• Firmware version: V4.0

• FW update: Yes

Product Functions

• I&M data: Yes (I&M0 to I&M3)

• Isochronous mode: Yes

• SysLog: Yes

Engineering

• STEP 7 TIA Portal: V20 (FW V4.0) / V18 (FW V3.0) or higher

• Compatible with older versions as 6ES7513-1AL02-0AB0

Display & Controls

• Display size: 3.45 cm

• Keys: 8

• Mode buttons: 2

Supply Voltage

• Rated value: 24 V DC

• Range: 19.2 28.8 V

• Reverse polarity protection: Yes

Mains Buffering

• Stored energy time: 5 ms

• Repeat rate: 1/s

Input Current

• Rated current: 0.56 A

• Max current: 0.9 A

• Inrush current: 1.15 A

• It: 0.6 As

Power

• Infeed to backplane: 10 W

• Consumption from backplane: 5.5 W

• Power loss (typ.): 3.4 W

Memory

• SIMATIC Memory Card slots: 1

• Memory card required: Yes

Work Memory

• Program: 600 KB

• Data: 2.5 MB

Load Memory

• With SIMATIC memory card: Up to 32 GB

Backup

• Maintenance-free: Yes

CPU Processing Times

• Bit operations: 6 ns

• Word operations: 7 ns

• Fixed-point arithmetic: 9 ns

• Floating-point arithmetic: 37 ns

Blocks

• Total blocks: 4000

• DB range: 160999 (user: 159999)

• DB size: max 2.5 MB

• FB/FC size: max 600 KB

• OB size: max 600 KB

Retentivity

• Retentive area: Max 256 KB (standard)

• Extended retentive: Max 2.5 MB (with PS 60W)

Local Data

• Max per priority class: 64 KB

• Max per block: 16 KB

Address Area

• IO modules: 2048

• Input process image: 32 KB

• Output process image: 32 KB

Hardware Configuration

• Distributed IO systems: 32

• DP masters via CM: 6

• IO controllers:

  • Integrated: 1

  • Via CM: 6

• Modules per rack: 32

Time of Day

• Hardware clock

• Backup time: 6 weeks

• Drift: max 10 s/day

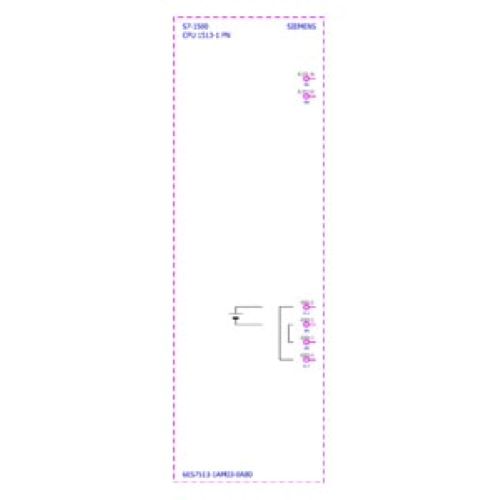

Interfaces

PROFINET (X1)

• Ports: 2

• Switch: Integrated

• PROFINET IO Controller/Device: Yes

• Web server: Yes

• Media redundancy: Yes

PROFINET IO Controller

• Isochronous mode: Yes

• IRT: Yes

• PROFIenergy: Yes

• Max IO Devices: 128

• IRT devices: 64

Update Times (IRT)

• 250 s cycle: 250 s 4 ms

• 500 s cycle: 500 s 8 ms

• 1 ms cycle: 1 16 ms

PROFINET IO Device

• IRT: Yes

• Shared device: Yes

• Max IO Controllers: 4

Communications

• TCP/IP, UDP, ISO-on-TCP

• DHCP, DNS, SNMP, LLDP

• Routing: Yes

• Web server (HTTP/HTTPS): Yes

OPC UA

• Client & Server supported

• Security policies: Full range (AES, RSA, SHA256)

• Server sessions: 32

• Accessible variables: 50,000

Diagnostics

• RUN/STOP LED

• ERROR LED

• MAINT LED

• STOP ACTIVE

• LINK TX/RX

Diagnostic Buffer

• Max entries: 1000 (500 power-fail-proof)

Motion Control

• Supported

• Total MC resources: 1120

• Positioning axes (typical):

  • 4 ms cycle: 11 axes

  • 8 ms cycle: 14 axes

Controllers

• PID_Compact

• PID_3Step

• PID-Temp

Ambient Conditions

• Operating temp (horizontal): 30C to 60C

• Operating temp (vertical): 30C to 40C

• Storage: 40C to 70C

• Max altitude: 5000 m

Programming Languages

LAD, FBD, STL, SCL, CFC, GRAPH

Security

• Secure Boot

• Signed firmware

• Role-based access

• Copy protection, block protection

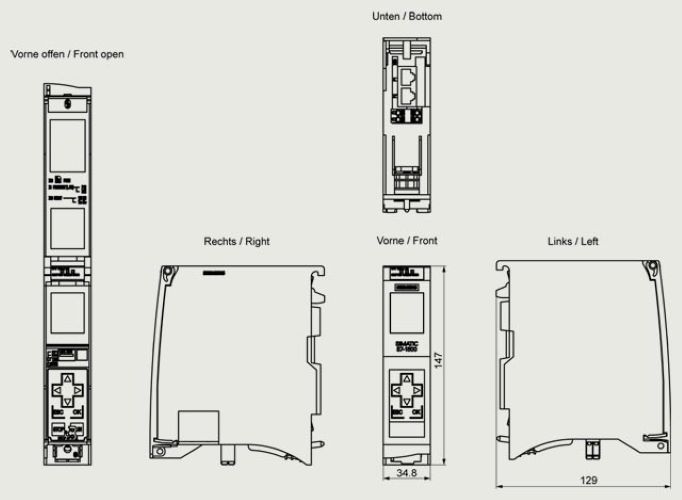

Dimensions & Weight

• Width: 35 mm

• Height: 147 mm

• Depth: 129 mm

• Weight: 336 g
