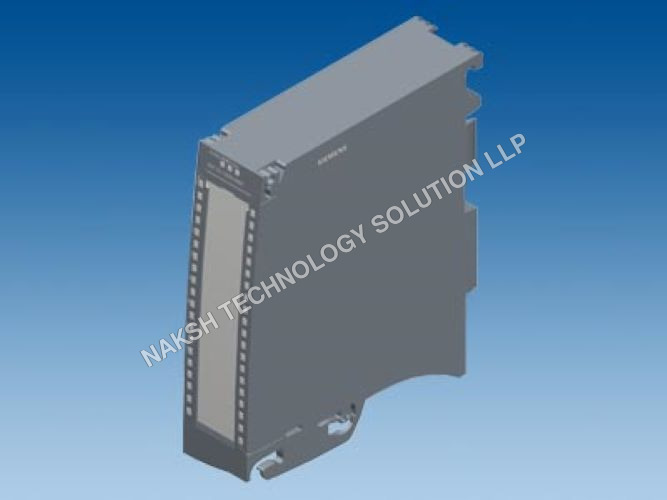

SIEMENS S7 1500 ANALOG INPUT MODULE-6ES7531-7LH00-0AB0

About SIEMENS S7 1500 ANALOG INPUT MODULE-6ES7531-7LH00-0AB0

SIMATIC S7-1500, analog input module AI 16xU BA, 16-bit resolution accuracy 0.5%, 16 channels in groups of 16, common mode voltage 4 V DC, diagnostics, hardware interrupts; delivery including infeed element, shield bracket and shield terminal: front connector (screw terminals or push-in) to be ordered separately

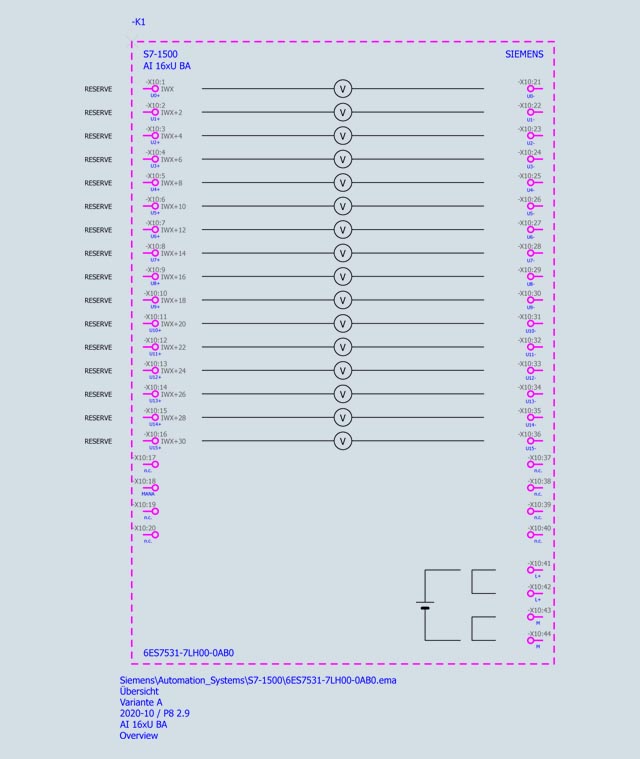

Siemens SIMATIC S7-1500 AI 16xU BA Module

Product Code: 6ES7531-7LH00-0AB0
Type: Analog Input Module (Voltage), 16 channels, 16-bit resolution

Description:

• 16 analog input channels in groups of 16

• 16-bit resolution with 0.5% accuracy

• Common mode voltage: 4 V DC

• Diagnostics and hardware interrupts

• Delivery includes infeed element, shield bracket, and shield terminal

• Front connector (screw terminals or push-in) to be ordered separately

General Information:

• HW Functional Status: FS01

• Firmware Version: V1.0.0 (updatable)

• I&M Data: Yes (I&M0 to I&M3)

• Isochronous Mode: No

• Measuring Range Scalable: No

• Engineering:

  • STEP 7 TIA Portal V16/V17

  • STEP 7 V5.5 SP3

  • PROFIBUS GSD V1.0/V5.1

  • PROFINET GSD V2.3

Operating Mode:

• Oversampling: No

• MSI: Yes

Configuration in RUN:

• Reparameterization: Yes

• Calibration: No

Power:

• Power consumption from backplane bus: 0.85 W

• Power loss: Typ. 0.75 W

Analog Inputs:

• Number of Inputs: 16 (Voltage measurement)

• Permissible Input Voltage: Max. 12 V; 12 V continuous, 30 V for max. 1 s

Input Ranges (Rated):

• Cable Length: Shielded, max. 200 m

• Measurement Principle: Integrating

• Resolution: 16 bit (including sign)

• Integration Time (parameterizable): 2.5 / 16.67 / 20 / 100 ms

• Basic Conversion Time: 10 / 24 / 27 / 107 ms

• Additional Time for Wire-break: 4 ms

• Interference Voltage Suppression: 400 / 60 / 50 / 10 Hz

Smoothing of Measured Values: Parameterizable (None, Low, Medium, High)

Accuracy & Errors:

• Linearity Error: 0.1%

• Temperature Error: 0.006 %/K

• Crosstalk: Max. -50 dB

• Repeat Accuracy: 0.1%

• Operational Error Limit: 0.5%

• Basic Error Limit (25 C): 0.3%

• Series Mode Interference Suppression: Min. 40 dB

• Common Mode Interference: Min. 60 dB

• Max Common Mode Voltage: 4 V

Diagnostics & Status:

• Diagnostic Alarm: Yes

• Limit Value Alarm: Yes (2 upper & 2 lower per channel)

• Wire-break Monitoring: Yes (15 V only)

• Overflow/Underflow: Yes

LED Indicators:

• RUN LED: Green

• ERROR LED: Red

• Channel Status: Green

• Channel Diagnostics: Red

• Module Diagnostics: Red

Potential Separation & Isolation:

• Between channels: No

• Between channels (in groups of 16): Yes

• Between channels & backplane bus: Yes

• Permissible Potential Difference:

  • Inputs (UCM): 8 V DC

  • Inputs to MANA (UCM): 4 V DC

• Isolation Test: 707 V DC

Environmental & Mechanical:

• Operating Temp: Horizontal: -30 C to 60 C, Vertical: -30 C to 40 C

• Max Installation Altitude: 5,000 m (restrictions above 2,000 m)

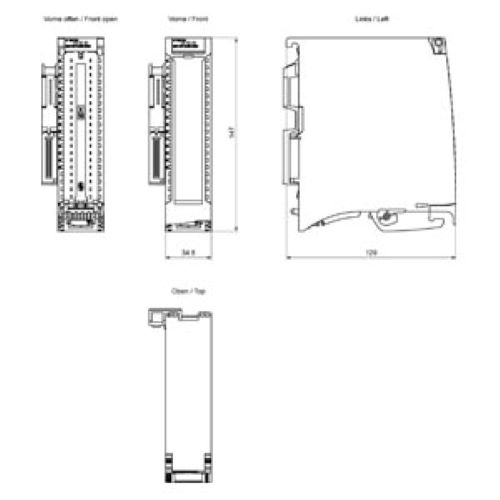

• Dimensions: W 35 mm H 147 mm D 129 mm

• Weight: Approx. 250 g
