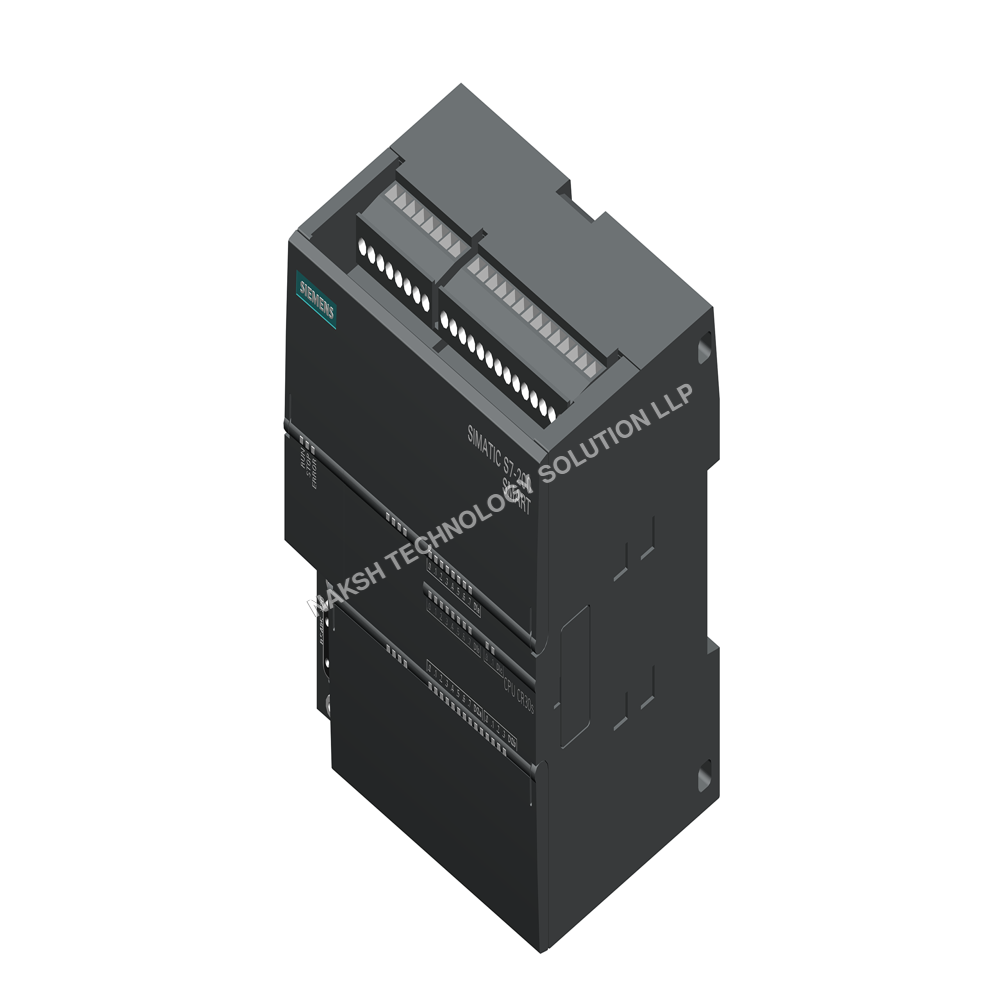

Siemens S7-200 Smart 4ai 2ao Module

About Siemens S7-200 Smart 4ai 2ao Module

Data sheet 6ES7288-3AM06-0AA0

SIMATIC S7-200 SMART, Analog I/O SM AM06, 4 AI / 2 AO, 0..10 V, 0..5 V, 0/4..20 mA, 5 V, 2.5 V

General information

• Product type designation: SM AM06, AI 4x12 bit, AQ 2x11 bit

• Configuration in RUN: CiR supported

• Reparameterization possible in RUN: No

Supply voltage

• Rated value: 24 V DC (-15 / +20 %)

• Permissible range: 20.4 28.8 V DC

Input current

• Typical: 60 mA

• From backplane bus 5 V DC: 80 mA

Power loss

• Typical: 2 W

Analog inputs

• Number: 4

• Input types: Voltage (10 V, 5 V, 2.5 V), Current (0 20 mA)

• Input resistance:

  • Voltage: 9 M

  • Current: 250

Integration and conversion

• Resolution: Max 12 bit; voltage mode: 11 bit + sign bit; current mode: 11 bit

• Interference voltage suppression: 10 / 50 / 60 / 400 Hz

• Smoothing of measured values (4 stages): 1x, 4x, 16x, 32x

Analog outputs

• Number: 2 (Current or Voltage)

• Output ranges:

  • Voltage: -10 V to +10 V

  • Current: 0 20 mA

• Load impedance:

  • Voltage: min 1 k

  • Current: max 500

Integration and conversion

• Resolution: Max 11 bit; voltage: 11 bit + sign, current: 11 bit

• Isochronous mode resolution: Voltage 10 bit + sign, Current 10 bit

Diagnostics / Status

• Supply voltage monitoring: Yes

• Wire-break detection: Yes

• Short-circuit detection: Yes

• LED indicators: Inputs and Outputs

Degree and class of protection

• IP20

Dimensions

• Width: 45 mm

• Height: 100 mm

• Depth: 81 mm

• Weight: approx. 173.4 g
