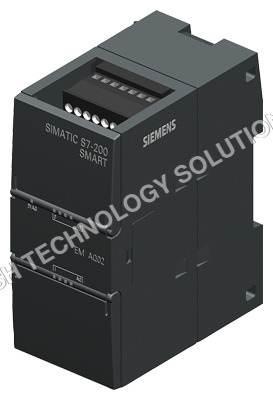

About Siemens S7-200 Smart 4ai TC Module

NAKSH TECHNOLOGY We are offeringSiemens S7 200 Smart PLC MODULESto our client.SIMATIC S7-200 SMART PLC is designed to suit the needs of developing markets that have higher pressures of price and demands on performance. Providing an excellent performance-to-price ratio, SIMATIC S7-200 SMART PLC when combined with other SMART drive products from Siemens helps in building extremely cost effective efficient automation solutions.

Data Sheet 6ES7288-3AE04-0AA0

SIMATIC S7-200 SMART | Analog Input Module SM AI04 4 AI | 010 V, 05 V, 5 V, 2.5 V, 0/420 mA | 11-bit + sign (12-bit ADC)

General Information

• Product type designation: SM AI04, AI 412 bit

• CiR (Configuration in RUN): Reparameterization not possible

Supply Voltage

• Type: DC

• Rated value: 24 V (15% / +20%)

• Permissible range: 20.4 V to 28.8 V

Input Current

• Current consumption (typical): 40 mA

• Backplane bus (5 V DC): approx. 80 mA

Power Loss

• Typical: 1.5 W

Analog Inputs

• Number of inputs: 4

Supported Input Ranges

• Voltage: 10 V, 5 V, 2.5 V

• Current: 020 mA

• Thermocouple: No

• RTD: No

• Resistance: No

Input Range Details (Rated Values)

Voltage Ranges

Current Range

Analog Value Generation

• Resolution (max): 12-bit (voltage mode: 11-bit + sign; current mode: 11-bit)

• Interference suppression frequencies: 10 / 50 / 60 / 400 Hz

Value Smoothing (Filter Settings)

• Parameterizable: Yes (4 levels)

  • 1 (None)

  • 4 (Low)

  • 16 (Medium)

  • 32 (High)

Diagnostics / Status

• Diagnostics available: Yes

• Monitoring:

  • Supply voltage monitoring: Yes

  • Wire break: No

  • Short-circuit: No

• Status LED for inputs: Yes

Protection

• IP rating: IP20

Approvals

• CE: Yes

Dimensions

• Width: 45 mm

• Height: 100 mm

• Depth: 81 mm

Weight

• Approx.: 147 g

Technical Details
