Siemens S7-200 SMART Analog Input Module SM AI08

Product Code: 6ES7288-3AE08-0AA0

General Information:

• Type: SM AI08

• Analog Inputs: 8 channels

• Input Ranges:

  • Voltage: 010 V, 05 V, 5 V, 2.5 V

  • Current: 0/420 mA

• Resolution: 11-bit + sign (12-bit ADC)

• Configuration in RUN: Not possible

Supply Voltage & Power:

• Type: DC

• Rated Value: 24 V DC (-15% / +20%)

• Permissible Range: 20.4 28.8 V DC

• Current Consumption:

  • Typical: 60 mA

  • Maximum: 80 mA

• Backplane Bus (5 V DC): Typ. 61 mA, Max. 80 mA

• Power Loss (typical): 2 W

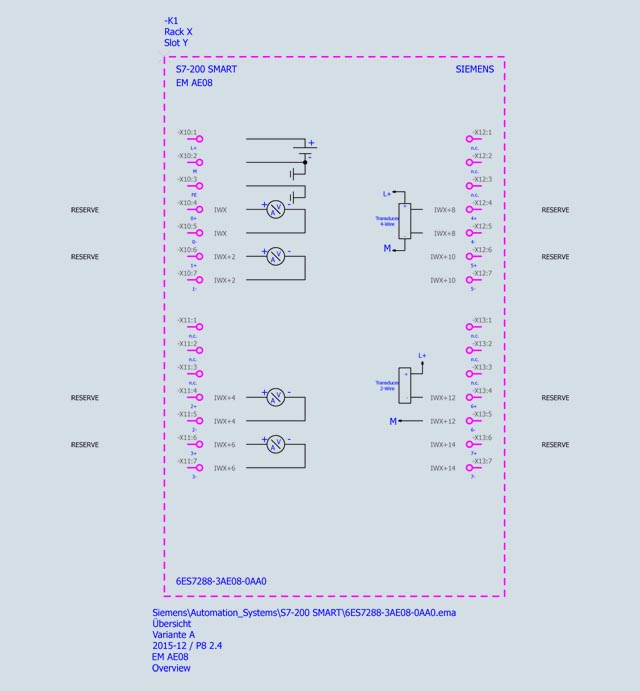

Analog Inputs:

• Number of Inputs: 8

• Supported Input Types: Voltage, Current

• Unsupported Input Types: Thermocouple, Resistance Thermometer, Resistance

• Resolution: 12-bit including sign (with overrange)

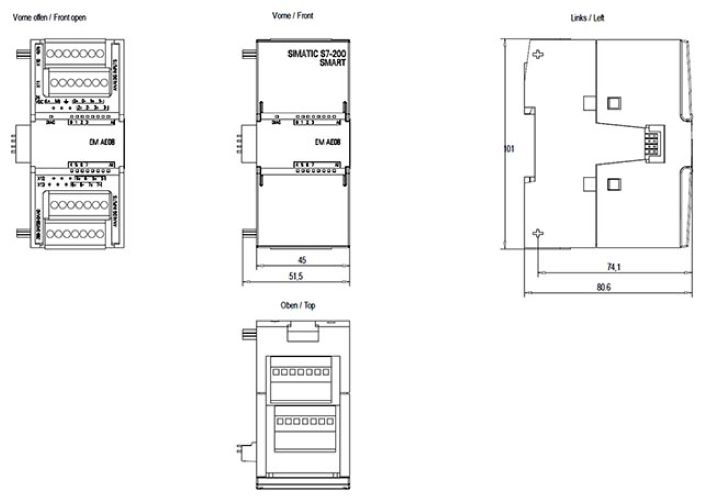

Mechanics & Dimensions:

• Width: 45 mm

• Height: 100 mm

• Depth: 81 mm

• Weight: 186 g

Technical Details
