SIEMENS S7-200 SMART ANALOG SIGNAL BOARD-6ES7288-5AQ01-0AA0

About SIEMENS S7-200 SMART ANALOG SIGNAL BOARD-6ES7288-5AQ01-0AA0

Siemens S7-200 SMART SB AQ01

Product Code: 6ES7288-5AQ01-0AA0
Type: Analog Output (1 AO)

Output Type:

• Voltage: 10 V DC (12-bit resolution)

• Current: 020 mA (11-bit resolution)

General Information:

• Product Type Designation: SB AQ01, AQ 112 bit

• Configuration in RUN (CiR): Not supported

• Reparameterization in RUN: No

Supply & Power:

• Input current (typical): 40 mA

• From backplane bus 5 V DC (typical): 15 mA

• Power loss: 1.5 W

Analog Outputs:

• Number of outputs: 1

• Output ranges:

  • Voltage: -10 V to +10 V

  • Current: 0 to 20 mA

• Resolution:

  • With overrange: 12-bit

  • Voltage mode: 11-bit + sign bit

  • Current mode: 11-bit

Diagnostics & Status:

• Diagnostics function: Yes

• Monitored conditions: Wire-break, Short-circuit

• Status LED: Yes

Physical & Environmental:

• IP Degree of Protection: IP20

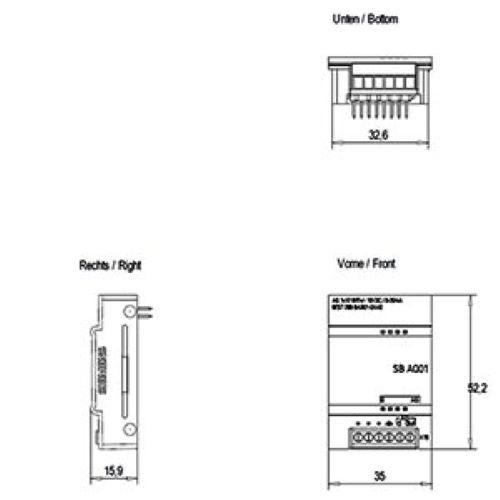

• Dimensions (W H D): 35 52.2 16 mm

• Weight: 17.4 g

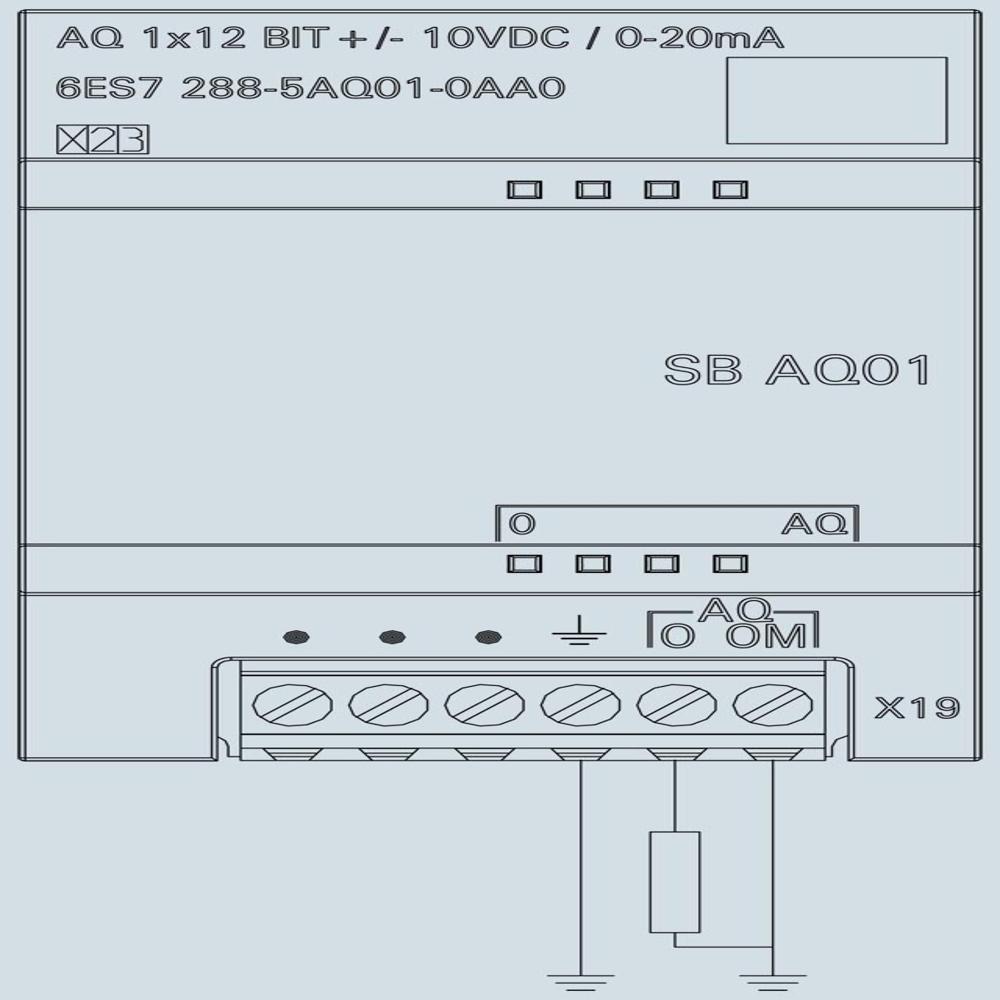

SIMATIC S7-200 SMART, Analog output SB AQ01, 1 AO, +/-10 V DC (12 bit resol.) or 0-20mA (11 bit resol.)
