Siemens Simatic HMI

About Siemens Simatic HMI

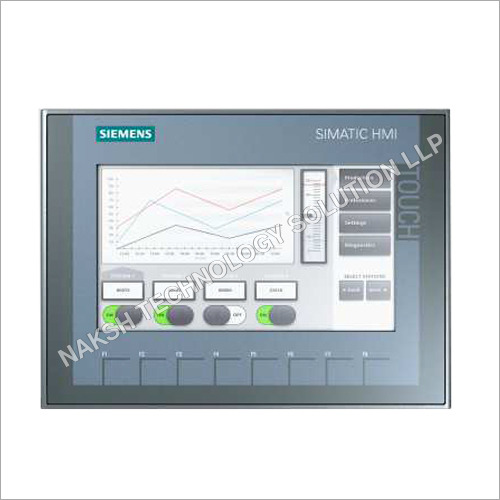

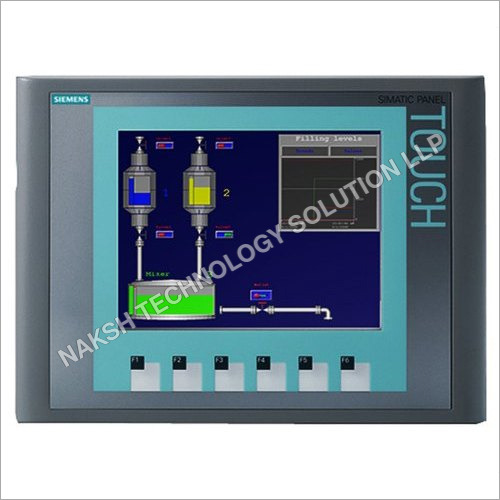

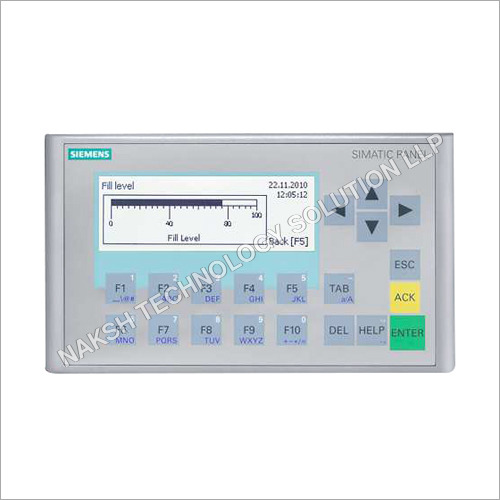

For reliable performance in simple automation environments, SIMATIC HMI Basic Panels 2nd Generation offer an effective entry point for a wide range of HMI applications. The panels are available with 4, 7, 9, and 12 display sizes; they provide high-resolution widescreen displays, intuitive touch or key operation, and flexible installation options such as portrait mode. Due to their advanced yet economical design, these panels are ideal for compact plants, machine-level automation, and basic monitoring tasks where dependable operator interfaces are crucial.

Thanks to their engineering in the TIA Portal, these panels are easily configured and can be scaled up at any moment with little effort. Users will be able to start with a basic system and scale up at any moment by increasing tags or simply migrating to another HMI performance range. Compatibility with SIMATIC HMI Comfort Panels and previous Basic Panels (4" and 6") simplifies migration and reduces installation effort. High-resolution displays in 64,000 colors with fully dimmable brightness provide even better process visualization and clearer legibility during operation. An innovative user interface means new controls, enhanced graphics, and easy-to-use operation via touch-sensitive screens and programmable function keys. Every panel has basic HMI functionality, including alarm logging, recipe handling, trend display, and multiple languages-all standard across all sizes.

Connection flexibility remains a main strength, with PROFIBUS or PROFINET interfaces enabling communication with various PLC systems. Integration with the SIMATIC S7-1200 controllers creates added value for machine builders. A USB interface supports keyboard, mouse, and barcode scanner peripherals and allows for easy data archiving directly to a USB stick. Manufactured for durable industrial use and dependable SIMATIC quality, the Basic Panels 2nd Generation are an excellent value at an attractive price point, though performance across the entire product range remains consistent.

Siemens KTP1200 Basic DP

Data Sheet 6AV2123-2MA03-0AX0

General Information

• Product Name: KTP1200 Basic Color DP

• Type: Basic HMI Panel

• Operation: Key + Touch

• Display Size: 12" TFT

• Colors: 65,536

• Configuration Software: WinCC Basic V13 / STEP 7 Basic V13

Display

• Type: TFT widescreen, LED backlight

• Diagonal: 12"

• Resolution: 1280 800 pixels

• Display Area: 261.1 163.2 mm

• Backlight MTBF: 20,000 h

• Backlight Dimmable: Yes

Control Elements

• Function Keys: 10

• Keys with LEDs: No

• Numeric Keypad: On-screen

• Alphanumeric Keypad: On-screen

• Touch Type: Analog-resistive

Mounting

• Mounting Position: Vertical

• Portrait / Landscape: Both supported

• Max Tilt without ventilation: 35

Power Supply

• Supply Voltage: 24 V DC

• Range: 19.2 28.8 V DC

• Current Consumption: 550 mA

• Power Consumption: 13.2 W

• Inrush Current (It): 0.2 As

Processor & Memory

• CPU: ARM

• Flash & RAM: Yes

• User Memory: 10 MB

• Buzzer: Yes

• Speaker: No

Time

• Real-Time Clock: Yes

• Backup Time: ~6 weeks

• Synchronizable: Yes

Communication Interfaces

• Industrial Ethernet: 0

• RS-485: 1

• RS-422: 1

• USB: 1 (up to 16 GB)

• SD Card Slot: No

• TTY: No

• Parallel Ports: 0

Supported Protocols

• PROFIBUS: Yes

• MPI: Yes

• Modbus RTU: Yes

• EtherNet/IP: No

• TCP/IP / DHCP / SNMP: No

Protection & EMC

• Front Protection: IP65

• Rear Protection: IP20

• NEMA Type 4 / 4X: Yes

• EMC: EN 55011 Class A

Approvals

• CE, cULus, RCM, KC: Yes

• Marine Approvals: GL, ABS, BV, DNV, LRS, NK

• ATEX / IECEx: Not supported

Environmental Conditions

• Indoor Use Only: Yes

• Operating Temperature:

  • Vertical: 0 50 C

  • Tilted: 0 40 C

• Storage Temperature: -20 60 C

• Humidity: Max 90%, non-condensing

Supported Software

• WinCC Basic / Comfort / Advanced / Professional (TIA Portal): Yes

• STEP 7 Basic / Professional: Yes

• WinCC Flexible: No

Runtime Features

• Languages: 10 online, 32 project

• Recipes:

  • Recipes: 50

  • Records/recipe: 100

  • Entries/record: 100

  • Memory: 256 KB

• Messages:

  • Bit messages: 1000

  • Analog messages: 25

  • System messages: Yes

  • Buffer entries: 256 (retentive)

• Images:

  • Screens: 250

  • Objects/screen: 100

  • Complex objects/screen: 10

  • Trend view, Alarm view, Recipe view, System diagnostics: Yes

• Archiving:

  • Archives: 2

  • Entries/archive: 10,000

  • Storage: USB (TXT format)

Security

• User Groups: 50

• User Rights: 32

• Users: 50

• Password Import/Export: Yes

Device Connections

• Upload/Download: PROFIBUS / MPI

• USB/Ethernet Transfer: No

• External Storage: Yes (USB memory)

Dimensions & Weight

• Front Width: 330 mm

• Front Height: 245 mm

• Cutout Size: 310 221 mm

• Overall Depth: 54.9 mm

• Weight: 1.71 kg

FAQs:

1. What makes the SIMATIC HMI Basic Panels suitable for entry-level applications?

They provide essential HMI functions, high-resolution displays, touch/key operation, and flexible configuration via TIA Portal. This puts them in a position to offer solid performance with regard to simple automation tasks at a cost-effective price.

2. Can these panels be expanded for larger or more complex projects?

Yes, the scalable software in TIA Portal enables users to start small and expand tags, features, or migrate to different panel types as project requirements grow.

3. Do the SIMATIC Basic Panels offer compatibility with previously released models?

They offer mounting compatibility with earlier SIMATIC Basic Panels (4 and 6) and Comfort Panels, making transitions and upgrades easier without major redesigns.

4. What communication interfaces do these panels support?

All panels are optionally available with PROFIBUS or PROFINET, allowing integration into a wide range of PLC systems, up to optimized visualization with SIMATIC S7-1200 controllers.

5. How does the USB interface enhance usability?

The USB port supports peripherals like a barcode scanner, keyboard, or mouse, while enabling users to quickly and safely archive data to a USB stick without additional hardware.
