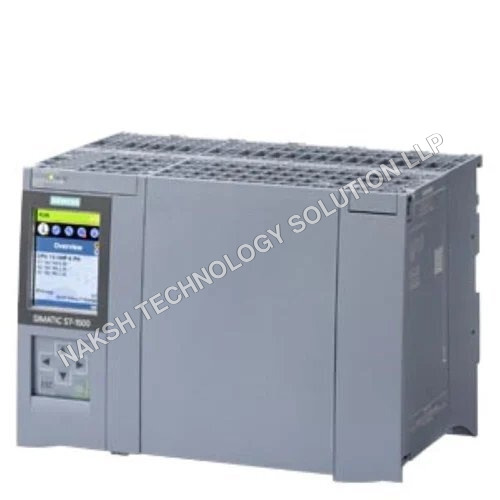

About SIEMENS SIMATIC S7 1500F CPU 1511F 1 PN

The SIEMENS SIMATIC S7 1500F CPU 1511F 1 PN is a high-quality industrial automation solution designed for reliable performance. With a mounting type of Rack Mount, this CPU operates at a frequency of 50/60 Hertz (Hz). It offers a 1-year warranty, ensuring peace of mind for users. Ideal for exporters, manufacturers, suppliers, and traders, this versatile CPU caters to a wide range of industrial automation applications.

Siemens SIMATIC S7-1500F

CPU 1511F-1 PN

Article No: 6ES7511-1FL03-0AB0
HW Status: FS03
Firmware Version: V4.0 (FW update possible)
Memory: 450 KB program, 1.5 MB data

General Information

• SIMATIC Memory Card required: Yes

• I&M Data: Yes, I&M0 to I&M3

• Isochronous mode: Yes, distributed & central (OB cycle 500 s distributed, 1 ms central)

• SysLog: Yes

• Engineering with: STEP 7 TIA Portal V20 (FW V4.0) / V18 (FW V3.0)

Display & Control

• Screen diagonal: 3.45 cm

• Keys: 8

• Mode buttons: 2

Supply Voltage

• Rated value: 24 V DC

• Permissible range: 19.2 28.8 V

• Reverse polarity protection: Yes

• Mains buffering: 5 ms

• Current consumption: 0.56 A typical, 0.9 A max

• Inrush current: 1.15 A

Power

• Infeed power to backplane bus: 10 W

• Power consumption (balanced): 5.5 W

• Typical power loss: 3.4 W

Memory

• SIMATIC memory card slots: 1

• Work memory: 450 KB (program), 1.5 MB (data)

• Load memory (max): 32 GB

• Backup: Maintenance-free

CPU Processing Times (typical)

• Bit operations: 6 ns

• Word operations: 7 ns

• Fixed-point arithmetic: 9 ns

• Floating-point arithmetic: 37 ns

CPU Blocks

• DBs: 160,999 (user: 159,999)

• FBs / FCs / OBs: 065,535

• Max block size: 450 KB (program), 1.5 MB (DBs)

• Free cycle OBs: 100

• Time alarm OBs: 20

• Delay alarm OBs: 20

• Cyclic interrupt OBs: 20

• Process alarm OBs: 50

• Isochronous mode OBs: 2

Counters, Timers & Retentivity

• S7 counters: 2,048 (retentive adjustable)

• IEC counters: Any (limited by memory)

• S7 timers: 2,048 (retentive adjustable)

• IEC timers: Any (limited by memory)

• Retentive memory: 256 KB

• Extended retentive data: 1.5 MB

I/O & Address Areas

• I/O modules max: 2,048

• Distributed I/O systems max: 32

• Inputs: 32 KB

• Outputs: 32 KB

• Subprocess images max: 32

Interfaces

• PROFINET interfaces: 1 (RJ45, 2 ports, integrated switch)

• IP protocol: IPv4

• PROFINET IO Controller: Yes

• PROFINET IO Device: Yes

• Web server: Yes (HTTP/HTTPS)

• OPC UA: Client & Server, Small license required

• MODBUS: MODBUS TCP

Motion Control

• Number of technology objects: 1,120

• Positioning axes (4 ms cycle): 11

• Positioning axes (8 ms cycle): 14

PID Controllers

• PID_Compact

• PID_3Step

• PID-Temp

Standards / Safety

• Performance level: ISO 13849-1 PLe

• SIL: SIL 3

• PFDavg: < 2.00E-05

• PFH: < 1.00E-09

• PROFINET Security Class: 1

• Signed firmware update: Yes

• Secure Boot: Yes

Operating Conditions

• Ambient temperature (operation): -30 to 60 C horizontal, -30 to 40 C vertical

• Storage temperature: -40 to 70 C

• Altitude: Up to 5,000 m

Programming

• Languages: LAD, FBD, STL, SCL, GRAPH

• Know-how protection: Password, copy, block protection

• Users / Groups / Roles: 100 / 100 / 50

Dimensions & Weight

• Width: 35 mm

• Height: 147 mm

• Depth: 129 mm

• Weight: 336 g
