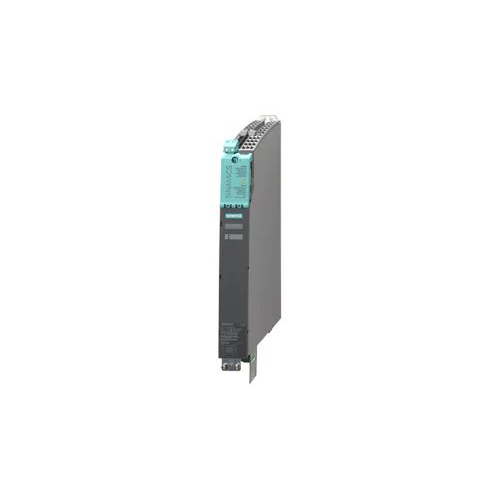

Siemens Smart Line Module Booksize

Article No: 6SL3130-6AE21-0AB1

• Type: Booksize module
• Degree of protection: IP20 / UL open type
• Net weight: 4.8 kg
• Dimensions: W 50 mm H 380 mm D 270 mm

Electrical Data

Input:

• Phases: 3 AC

• Line voltage: 342528 V

• Line frequency: 4763 Hz

• Short-circuit strength: 65 kA

• Fundamental power factor: 0.96

• Total power factor: 0.650.90

• Overvoltage category: Class III

• DC link voltage: 1.35 line voltage

• Electronics power supply: 24 V DC (-15% / +20%)

Connections Line Side:

• Terminal type: Screw-type (X1)

• Conductor cross-section: 2.56 mm (AWG 1410)

• PE conductor: M5 screw

• Shield connection: Integrated cable shield plate

• Max line length: Shielded 350 m / Unshielded 560 m

Rated Data

Infeed Power:

• Rated: 10 kW (10 hp)

• S6 duty: 13 kW

• Maximum: 20 kW

Regenerative Feedback Power:

• Rated: 10 kW (10 hp)

• S6 duty: 13 kW

• Maximum: 20 kW

DC-Link Current:

• At 540 V DC: 18.5 A

• At 600 V DC: 16.6 A

• S6 duty: 22.0 A

• Maximum: 33.2 A

Input Current:

• At 380 V AC 3-phase: 17.0 A

• At 400 V AC 3-phase: 16.2 A

• At 480 V AC 3-phase: 12.8 A

• At 400 V S6 duty: 21.1 A

• Maximum at 400 V: 31.2 A

Electronics Power Supply Current (24 V DC): max 0.9 A

Ampacity of Busbars:

• Electronics supply (24 V DC): 20 A

• DC-link connection: 100 A

DC Link Capacitance:

• Module: 330 F

• Drive system max: 6,000 F

Mechanical & Acoustic Data

• Sound pressure level: 60 dB

• Power losses: 0.14 kW

Ambient Conditions

• Operating temperature: 040 C

• Cooling: Internal air cooling, airflow 0.008 m/s

• Installation altitude: max 1,000 m
