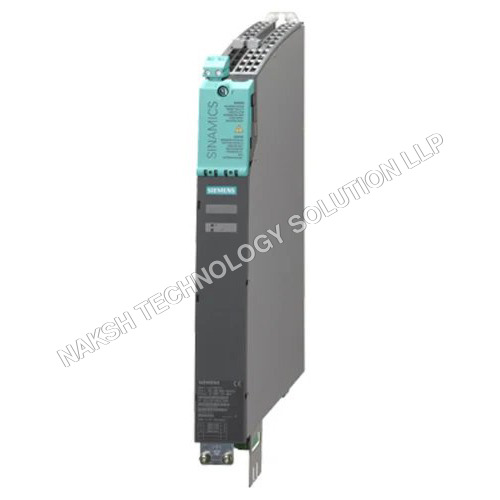

About Siemens Smart Line Module-6SL3130-6TE25-5AA3

DESCRIPTION Smart Line Module (Booksize) with internal air cooling 55 kW NET WEIGHT 17,00Kg SINAMICS S120 SMART LINE MODULE INPUT: 3AC 380-480V, 47-63/60HZ OUTPUT: DC 600V, 90A, 55KW FRAME SIZE: BOOKSIZE INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

Smart Line Module Booksize

Article No.: 6SL3130-6TE25-5AA3

Electrical Data

Input:

• Phases: 3 AC

• Line Voltage: 342 528 V

• Line Frequency: 47 63 Hz

• Short-circuit Strength: 65 kA

• Line Power Factor:

  • Fundamental (min.): 0.96

  • Total: 0.65 0.90

• Overvoltage Category: Class III

• DC Link Voltage: 1.35 line voltage

• Electronics Power Supply: 24 V DC (-15 % / +20 %)

Connections:

• Line Side: M6 bolt (X1)

• Conductor Cross-section: 2.5 95 mm (AWG 14 AWG -2)

• PE Conductor: M6 screw

• Maximum Cable Length:

  • Shielded: 1,000 m

  • Unshielded: 1,500 m

Mechanical Data

• Degree of Protection: IP20 / UL open type

• Type of Construction: Booksize

• Net Weight: 17.0 kg (37.48 lb)

• Dimensions (W H D): 200 380 270 mm (7.87 14.96 10.63 in)

Standards

• Compliance: CE, cULus

Rated Data

Infeed Power:

• Rated Value: 55.0 kW (60.0 hp)

• S6 Duty: 71.0 kW

• Maximum: 91.0 kW

Regenerative Feedback Power:

• Rated Value: 55.0 kW (60.0 hp)

• S6 Duty: 71.0 kW

• Maximum: 91.0 kW

DC-Link Current:

• At 540 V DC: 105.0 A

• At 600 V DC: 92.0 A

• S6 Duty: 138.0 A

• Maximum: 178.0 A

Input Current:

• 380 V AC 3-phase: 94.0 A

• 400 V AC 3-phase: 90.0 A

• 480 V AC 3-phase: 77.0 A

• 400 V S6 Duty: 106.0 A

• Maximum 400 V: 130.0 A

Current Requirement (24 V DC): Max. 1.90 A

Ampacity of Busbars:

• Electronics Power Supply (24 V DC): 20 A

• DC-Link Connection: 200 A

DC Link Capacitance:

• Smart Line Module: 1,880 F

• Drive System Maximum: 20,000 F

General Technical Specifications

• Sound Pressure Level: 60 dB

• Losses: 0.666 kW

Ambient Conditions

• Ambient Temperature: 0 40 C (32 104 F)

• Cooling Air Throughput: 0.044 m/s (1.554 ft/s)

• Installation Altitude: 1,000 m (3,280 ft)

• Cooling Type: Internal Air Cooling
