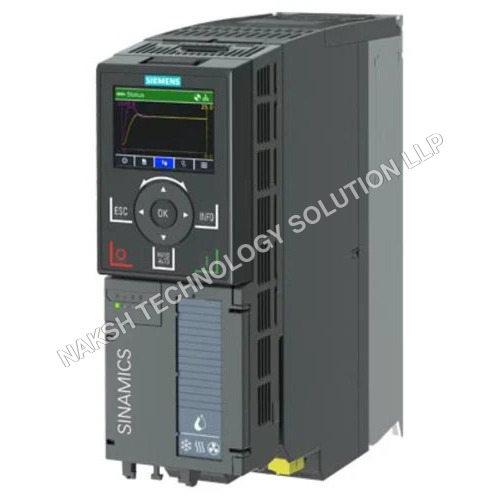

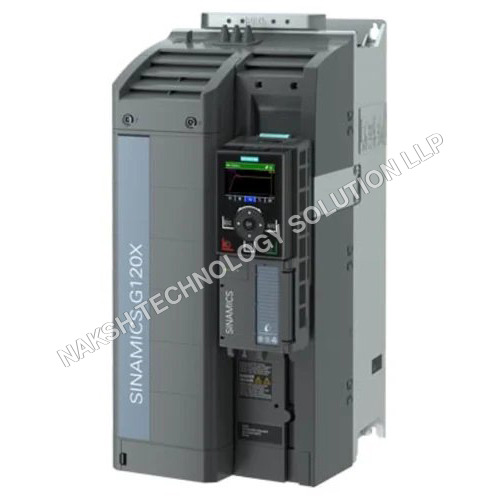

About SIEMENS VFD G120X 6SL3220-2YE26-0UF0

The Siemens VFD G120X 6SL3220-2YE26-0UF0 is a robust variable frequency drive suitable for industrial applications. With a rated voltage of 380-480V and IP20 protection level, this VFD ensures reliable and efficient operation in challenging environments. It operates within a frequency range of 47-63Hz and features a digital display for easy monitoring. Backed by a 1-year warranty, this VFD is a dependable choice for industrial settings.

SINAMICS G120X

Article No.: 6SL3220-2YE26-0UF0

Rated Data

Input:

• Phases: 3 AC

• Line Voltage: 380 480 V +10% / -20%

• Line Frequency: 47 63 Hz

• Rated Voltage: 400V IEC / 480V NEC

• Rated Current (LO): 24.5 A / 21.3 A

• Rated Current (HO): 18.25 A / 14.0 A

Output:

• Phases: 3 AC

• Rated Voltage: 400V IEC / 480V NEC

• Rated Power (LO): 11.0 kW / 15 hp

• Rated Power (HO): 7.5 kW / 10 hp

• Rated Current (LO): 26 A / 21 A

• Rated Current (HO): 18 A / 14 A

• Rated Current (IN): 27 A

• Max Output Current: 35 A

• Pulse Frequency: 4 kHz

• Output Frequency: Vector Control 0 200 Hz, V/f Control 0 550 Hz

Overload Capability

• Low Overload (LO): 110% for 60 s (cycle 300 s)

• High Overload (HO): 150% for 60 s (cycle 600 s)

General Specifications

• Power Factor : 0.70 0.85

• Offset Factor cos : 0.96

• Efficiency : 0.98

• Sound Pressure Level (1 m): 67 dB

• Power Loss: 0.344 kW

• Filter Class: Unfiltered

• EMC Category: Without

• Safety Function: Safe Torque Off (without SIRIUS device)

• Communication: PROFINET, Ether Net/IP

Inputs / Outputs

• Standard Digital Inputs: 6 (0 1: 11 V, 1 0: 5 V, max inrush 15 mA)

• Fail-safe Digital Inputs: 1

• Digital Outputs: 2 relay changeover contacts (DC 30 V, 5 A)

• Analog/Digital Inputs: 2 (Differential, 10 bit, switching threshold 0 1: 4 V, 1 0: 1.6 V)

• Analog Outputs: 1 (Non-isolated)

• PTC/KTY Interface: 1 motor temperature sensor input, sensors PTC, KTY, Thermo-Click, 5 C accuracy

Closed-loop Control Techniques

• V/f linear / square-law / parameterizable: Yes

• V/f with Flux Current Control (FCC): Yes

• V/f ECO linear / square-law: Yes

• Sensorless Vector Control: Yes

• Vector Control with Sensor: No

• Encoderless Torque Control: No

• Torque Control with Encoder: No

Ambient Conditions

• Standard Board Coating: Class 3C2 (IEC 60721-3-3)

• Cooling: Air cooling with integrated fan (0.018 m/s)

• Installation Altitude: 1,000 m

• Operation Temp: -20 45 C

• Transport Temp: -40 70 C

• Storage Temp: -25 55 C

• Max Relative Humidity: 95% (no condensation)

Connections

• Signal Cable: 0.15 1.50 mm

• Line Side: Screw-type terminals, 1.5 16 mm

• Motor End: Screw-type terminals, 1.5 16 mm

• DC Link PE Connection: On housing, M4 screw

• Max Motor Cable Length: Shielded 150 m / Unshielded 300 m

Mechanical Data

• Degree of Protection: IP20 / UL open type

• Frame Size: FSC

• Net Weight: 7.14 kg

• Dimensions (W H D): 140 295 218 mm

Standards & Approvals

• Compliance: UL, cUL, CE, C-Tick (RCM), EAC, KCC, SEMI F47, REACH

• CE Marking: EMC Directive 2004/108/EC, Low-Voltage Directive 2006/95/EC

Converter Losses (IEC61800-9-2)

• Efficiency Class: IE2

• Losses (90% / 100% load): 36.4%

• Typical Losses: 127 340 W depending on load

Operator Panel (BOP-2)

• Display: LCD, monochrome

• Degree of Protection: IP55 / UL type 12

• Net Weight: 0.140 kg

• Dimensions (W H D): 70 106.85 19.6 mm

• Operation Temp: 0 50 C

• Storage / Transport Temp: -40 70 C

• Max Relative Humidity: 95%

• Approvals: CE, cULus, EAC, KCC, RCM
