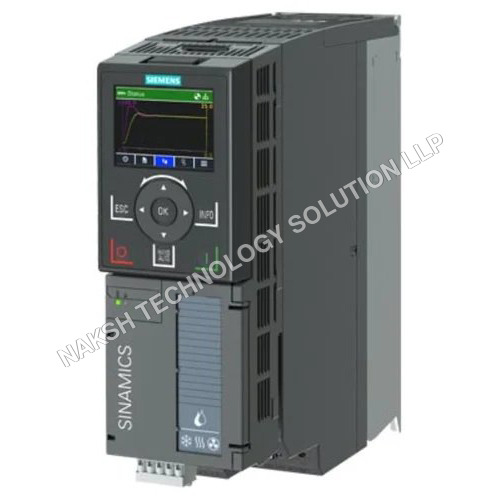

SIEMENS VFD G120XA 6SL3220-3YD42-0UB0

About SIEMENS VFD G120XA 6SL3220-3YD42-0UB0

SINAMICS G120XA Rated power 75kW 3AC 380V -20% to 440V +10% unfiltered 110% 60s per 600s with integrated IOP-2 Integrated Fieldbus: MODBUS RTU, BACnet MS/TP, USS 6DI, 4DQ, 2AI, 2AQ, 1Mot_t Protection: IP20 Frame Size: FSF 709x305x360 (HxWxD)

SINAMICS G120XA

Article No.: 6SL3220-3YD42-0UB0 Technical data are subject to change. Values may differ from rating plate.

Rated Data

Input

• Phases: 3 AC

• Line voltage: 380440 V (+10% / -20%)

• Line frequency: 4763 Hz

• Rated current (LO): 143 A

Output

• Phases: 3 AC

• Rated voltage: 400 V

• Rated power IEC 400V (LO): 75 kW

• Rated current 400 V: 136 A

• Rated current 380 V: 144 A

• Max. output current: 150 A

• Pulse frequency: 4 kHz

• Output frequency (vector control): 0240 Hz

• Output frequency (V/f control): 0550 Hz

Overload capability (LO)

• 110% of base load current (IL) for 60 s in 600 s cycle

General Technical Specifications

• Power factor : 0.750.93

• Power factor cos : 0.991

• Efficiency : 0.98

• Sound pressure level (1 m): 73.1 dB

• Power loss (typ.): 1.720 kW

• Filter class (integrated): Unfiltered

• Safety function Safe Torque Off: Without SIRIUS device

Communication

• Supported protocols: USS, Modbus RTU, BACnet MS/TP

Digital Inputs / Outputs

• Standard digital inputs: 6 (0 1: 11 V, 1 0: 5 V, max inrush 15 mA)

• Fail-safe digital inputs: 0

• Relay outputs: 4 (DC 30 V, 1 A resistive)

• Transistor outputs: 0

• Analog/digital inputs: 2 differential, 12-bit resolution

• Analog outputs: 2 (non-isolated)

PTC/KTY interface

• 1 motor temperature sensor input (PTC, KTY, PT1000, Thermo-Click)

• Accuracy: 5 C

Closed-loop Control Techniques

• V/f linear / square-law / parameterizable: Yes

• V/f with flux current control (FCC): Yes

• V/f ECO linear / square-law: Yes

• Sensorless vector control: Yes

• Vector control with sensor: No

• Encoderless torque control: Yes

• Torque control with encoder: No

Ambient Conditions

• Standard board coating: Class 3C2 (IEC 60721-3-3:2002)

• Cooling: Air-cooled with integrated fan

• Cooling air requirement: 0.153 m/s

• Installation altitude: 1,000 m max

• Operating temperature: -20 60 C

• Storage/transport temperature: -40 70 C

• Max relative humidity: 95% (no condensation or icing)

Connections

• Signal cable: 0.151.50 mm (AWG 2416)

• Line side: M10 screw, 352 x 120 mm (AWG 12 x 4/0)

• Motor end: M10 screw, 352 x 120 mm

• DC link (braking resistor): PE connection M10 screw

• Max motor cable length: Shielded 300 m, Unshielded 450 m

Mechanical Data

• Degree of protection: IP20 / UL open type

• Frame size: FSF

• Net weight: 60.3 kg

• Dimensions: W 305 mm H 709 mm D 360 mm
