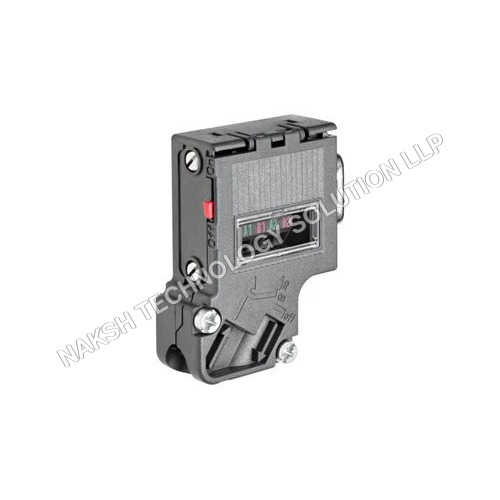

About SIMATIC DP, Connection plug for PROFIBUS 6ES7972-0BA42-0XA0

Power Rating5voltShapeLTemperatureduring operation. -25MaterialPlasticPitch Size39.5 mmSIMATIC DP, Connection plug for PROFIBUS up to 12 Mbit/s with inclined cable outlet, 15.8x 54x 39.5 mm (WxHxD), terminating resistor with isolating function, without PG socket

Data Sheet 6ES7972-0BA42-0XA0

Product Information

Product type designation: PROFIBUS connector

Product description:

PROFIBUS bus connector, RS 485, screw, without programming port, 35.

SIMATIC DP connection plug for PROFIBUS up to 12 Mbit/s with inclined cable outlet.Dimensions: 15.8 54 39.5 mm (WHD). Terminating resistor with isolating function.Without PG socket.

Suitability for use: For connecting PROFIBUS stations to the PROFIBUS bus cable.

Transfer Rate

• PROFIBUS DP: 9.6 kbit/s 12 Mbit/s

Interfaces

Number of electrical connections

• For PROFIBUS cables: 2

• For network components or terminal equipment: 1

Type of electrical connection

• For PROFIBUS cables: Screw

• For network components/terminal equipment: 9-pin Sub-D connector

• FastConnect: No

Mechanical Data

• Terminating resistor design: Resistor combination integrated, connectable via slide switch

• Enclosure material: Plastic

• Locking mechanism: Screwed joint

Design, Dimensions & Weights

• Cable outlet type: 35 cable outlet

• Width: 15.8 mm

• Height: 54 mm

• Depth: 39.5 mm

• Net weight: 29 g

Ambient Conditions

Ambient temperature

• Operation: 25 +60 C

• Storage: 40 +70 C

• Transport: 40 +70 C

Protection class: IP20
