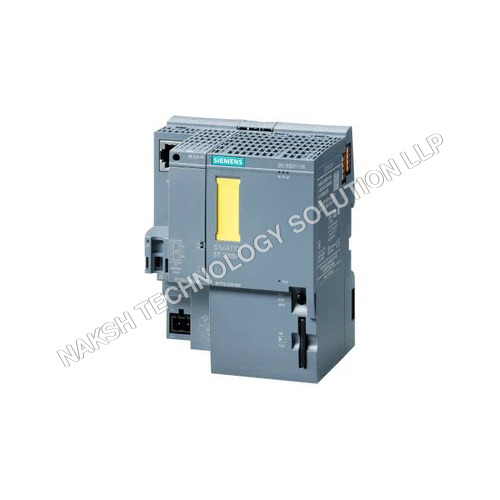

SIMATIC DP CPU 1514SP-2 PN for ET 200SP (6ES7514-2DN03-0AB0)

The SIMATIC DP CPU 1514SP-2 PN is designed for advanced automation tasks, offering high efficiency and reliable performance in industrial processes.

Key Specifications:

• Rated Voltage: 24V DC

• Rated Current: 1.34A

• Power Rating: 8.05W

• Frequency: 50/60 Hz

• Dimensions (L W H): 100 117 75 mm

• Weight: 265 g

• Mounting: DIN rail

• Operating Temperature: -30C to +60C

• Humidity Tolerance: Up to 95%

• Protection Level: IP20

• Color: Grey

Features:

• Compact and lightweight design for easy DIN-rail installation

• Energy-efficient and robust for demanding industrial environments

• IP20 protection ensures reliability under challenging conditions

• Seamless integration with ET 200SP network

This CPU is ideal for industrial automation, combining durability, versatility, and precision.

SIMATIC CPU 1514SP-2 PN for ET 200SP

Product Code: 6ES7514-2DN03-0AB0

General Information

• HW Functional Status: FS04

• Firmware Version: V4.0 (Update possible)

• Product Function: I&M data (I&M0 to I&M3), Hot swapping, Isochronous mode (with PROFINET), SysLog

• Engineering: STEP 7 TIA Portal V20 (FW V4.0) / V18 (FW V3.0) or higher

• Mode Selector Switch: 1

Power Supply

• Rated Voltage: 24 V DC

• Permissible Range: 19.2 28.8 V DC

• Reverse Polarity Protection: Yes

• Mains Buffering: 10 ms

• Current Consumption: 0.48 A (typ.), 0.7 A (max)

• Inrush Current: 1.34 A

• Power Loss: 3.5 W (typ.)

Memory

• Work Memory: 600 KB (program), 3.5 MB (data)

• SIMATIC Memory Card: Required, Max. 32 GB

• CPU Processing Times:

  • Bit: 6 ns

  • Word: 7 ns

  • Fixed Point: 9 ns

  • Floating Point: 37 ns

CPU Blocks

• Total Elements: 8,000 (OB, FB, FC, DB, UDTs)

• Data Blocks (DB): 1 59,999 (user), max 3.5 MB

• Function Blocks (FB): 0 65,535, max 600 KB

• Function Calls (FC): 0 65,535, max 600 KB

• Organization Blocks (OB): max 600 KB, various OB types for cyclic, delay, startup, errors, diagnostics

Counters & Timers

• S7 Counters: 2,048 (retentive adjustable)

• IEC Counters: Any (limited by main memory)

• S7 Timers: 2,048 (retentive adjustable)

• IEC Timers: Any (limited by main memory)

Data Areas

• Retentive Memory: max 512 KB

• Flags: max 16 KB

• Clock Memories: 8 bits

I/O and Addressing

• Number of I/O Modules: 8,192

• Inputs/Outputs (Process Image): 32 KB each

• Max Modules per Rack: 82

• Distributed I/O Systems: max 64

• Subprocess Images: max 32

Interfaces

1. PROFINET IRT (X1 P1 & P2 via BusAdapter)

   • 2 Ports, integrated switch

   • Max IO Devices: 256 (IRT: 64)

   • Update Time: 250 s 4 ms

2. PROFINET RT (X2)

   • 1 Port, no switch

   • Max IO Devices: 32

   • Update Time: 1 ms 512 ms

3. RS485 (via CM DP Module)

   • PROFIBUS DP Master/Device

   • Max Devices: 125

• Ethernet Speed: 100 Mbps

• Media Redundancy: MRP, MRPD via Bus Adapter

Communication & Protocols

• S7 Communication: Server/Client, PG/OP

• Open IE (TCP/IP, UDP, ISO-on-TCP, DHCP, DNS, SNMP, LLDP)

• Web Server: HTTP/HTTPS, Web API

• OPC UA: Client/Server, Security Policies, Max Sessions: 48, Max Variables: 100,000

• MODBUS TCP Supported

Diagnostics & Forcing

• LEDs: RUN/STOP, ERROR, MAINT, PWR, LINK TX/RX

• Diagnostic Buffer: 3,200 entries (500 powerfail-proof)

• Traces: 4 configurable, 512 KB per trace

• Forcing: Yes, up to 200 variables

Motion Control & Technology Objects

• Motion Control Resources: 2,400

• Positioning Axes: 11 (4 ms cycle), 20 (8 ms cycle)

• PID Controllers: PID_Compact, PID_3Step, PID-Temp

• High-Speed Counter: Yes

Standards & Security

• PROFINET Security Class 1

• Signed Firmware Update: Yes

• Secure Boot: Yes

• User Administration: 100 Users, 100 Groups, 50 Roles

• Program Protection/Password Protection: Yes

Operating Conditions

• Temperature: -30 C 60 C (horizontal), -30 C 50 C (vertical)

• Altitude: Max 5,000 m

• Weight: 265 g

• Dimensions: W100 x H117 x D75 mm

Technical Details
