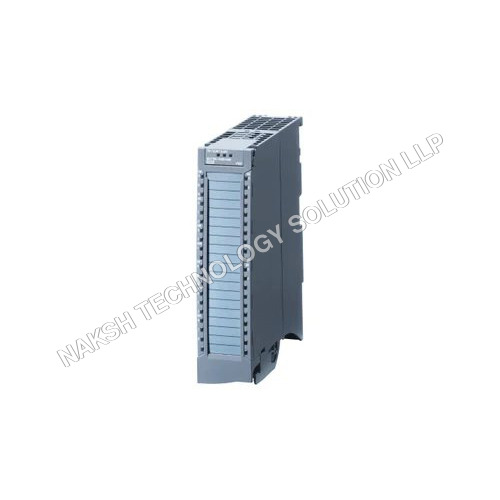

Siemens PLC Module 6ES7553-1AA00-0AB0

The Siemens PLC Module 6ES7553-1AA00-0AB0 is designed for advanced automation tasks, offering seamless integration and reliable performance.

Key Specifications:

• Rated Voltage: 24V DC

• Current Capacity: 70 mA

• Power Rating: 1.3 W

• Frequency: 5060 Hz

• Dimensions (L W H): 35 147 129 mm

• Weight: 300 g

• Mounting: DIN rail

• Operating Temperature: 0C to 60C

• Humidity Tolerance: Up to 95%

• Protection Level: IP20

• Color: Grey

Features:

• Compact and lightweight, ideal for space-saving DIN-rail installation

• Operates efficiently in harsh industrial environments

• Robust design provides protection against solid objects

• Energy-efficient with stable performance in dynamic applications

This Siemens PLC module is a durable and precise solution for industrial automation control systems.

SIMATIC S7-1500 TM PTO 4 Stepper Drive Interface Module

Article No: 6ES7553-1AA00-0AB0

General Information

• Product type: TM PTO 4

• HW status: FS02

• Number of channels (axes): 4

• I&M data: Yes (I&M0 to I&M3)

• Isochronous mode: Yes

• Engineering: STEP 7 TIA Portal V14+, STEP 7 V5.5 SP3 with GSDML V2.32

• Mounting: S7-1500 mounting rail

Supply Voltage

• Rated value (DC): 24 V

• Permissible range: 19.2 28.8 V

• Reverse polarity protection: Yes

Power

• Max current consumption (without load): 70 mA

• Power from backplane bus: 1.3 W

• Power loss (typical): 4 W

Address Area

• Inputs per module: 18 byte

• Outputs per module: 10 byte

Digital Inputs

• Number: 12 (3 per channel, including 1 DIQ)

• Parameterizable: Yes

• Input functions: Synchronization, Probe, Drive ready

• Voltage rating: 24 V DC

  • Signal 0: 5 +5 V

  • Signal 1: 11 30 V

• Input delay (parameterizable): 0 20 ms

• Max cable length: Shielded 1,000 m / Unshielded 600 m

Digital Outputs

• Number: 12 (3 per channel, including 1 DIQ)

• Current type: Sinking (DQn.0/DQn.1), Sourcing (DIQn.2)

• Parameterizable: Yes

• Short-circuit protection: Yes (electronic/thermal)

• Output voltage: DC

  • Signal 1 min: 23.2 V (L+ 0.8 V), DIQn.2: L+ 1.3 V

• Rated output current: 0.1 A (DIQn.2: 0.5 A)

• Switching frequency:

  • 24 V asymmetrical: 200 kHz

  • RS-422 symmetrical: 1 MHz

  • TTL (5 V) asymmetrical: 200 kHz

• Max cable length RS-422/TTL: 32 600 m (depending on frequency)

Isochronous Mode

• Min bus cycle time (TDP): 250 s (375 s if all 4 channels used)

• Max jitter: 1 s

Diagnostics / Status

• Diagnostic function: Yes

• Alarms: Diagnostic alarm

• Monitoring: Supply voltage, short-circuit, group error

• LEDs:

  • RUN: green

  • ERROR: red

  • MAINT: yellow

  • PWR: green

  • Channel status: green

  • Channel diagnostics: red

  • Module diagnostics: green/red

Potential Separation

• Between channels: No

• Channels Backplane bus: Yes

• Channels Load voltage L+: No

• Isolation test: 707 V DC

Ambient Conditions

• Operation temperature: Horizontal 0 60 C (derating above 60 C), Vertical 0 40 C

• Max installation altitude: 5,000 m (derate >2,000 m)

Decentralized Operation

• Compatible with:

  • SIMATIC S7-300 / S7-400 / S7-1200 / S7-1500 / Standard PROFINET controller

Dimensions & Weight

• Width: 35 mm

• Height: 147 mm

• Depth: 129 mm

• Weight: 300 g

Technical Details
