Simatic ET200SP DP 1512SP 1 PN CPU

About Simatic ET200SP DP 1512SP 1 PN CPU

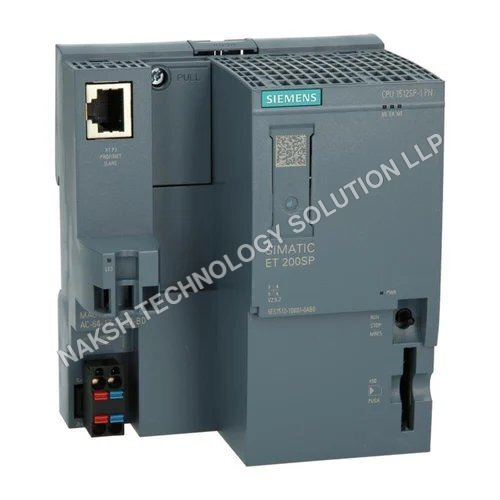

The Siemens SIMATIC ET 200SP CPU 1512SP-1 PN (Part Number: 6ES7512-1DM03-0AB0) is a central processing unit designed for medium to high-performance applications within the ET 200SP distributed I/O system.

Key Features:

• Memory Capacity: 200 KB for program data and 1 MB for user data, accommodating complex control tasks.
• Communication Interface: Integrated PROFINET IRT with a 3-port switch, enabling efficient data exchange and network integration.
• Performance: Achieves a bit performance of 48 ns, ensuring rapid processing of control operations.
• Compatibility: Requires a SIMATIC Memory Card for data storage and a BusAdapter for connecting additional modules.

Applications:

This CPU is ideal for applications requiring robust and scalable control solutions, including:

• Manufacturing automation
• Process control systems
• Building automation

General Information

• Product Type: CPU 1512SP-1 PN

• Functional Status: FS04

• Firmware Version: V4.0 (FW update possible)

• I&M Data: I&M0 I&M3

• Hot Swapping: Yes (Multi hot swap)

• Isochronous Mode: Yes (with PROFINET)

• SysLog: Supported

Engineering

• Supported in TIA Portal V20 (FW V4.0) / V18 (FW V3.0)

• Older versions configurable as 6ES7 512-1DK01-0AB0

Supply Voltage

• Rated Voltage: 24 V DC

• Range: 19.2 28.8 V

• Reverse Polarity Protection: Yes

• Mains Failure Backup: 10 ms

Current & Power

• Rated Current: 0.48 A

• Max Current: 0.7 A

• Inrush Current: 1.34 A

• Infeed Power: 8.05 W

• Power Loss (typ.): 3.5 W

Memory

• SIMATIC Memory Card: 1 slot (required)

• Work Memory:

  • Program: 400 KB

  • Data: 2 MB

• Load Memory (MMC): up to 32 GB

• Backup: Maintenance-free

CPU Processing Times

• Bit operations: 6 ns

• Word operations: 7 ns

• Fixed point: 9 ns

• Floating point: 37 ns

Blocks

• Total elements: 4000

• DB: 159999 (up to 1 MB)

• FB/FC/OB: Max 400 KB each

• 100 free cycle OBs

• Multiple alarm and interrupt OBs

Retentive Memory

• Total retentive area: 256 KB

• Flags: 16 KB

• Clock memory bits: 8

• Timers/Counters: 2048 each (adjustable retention)

Address Areas

• Inputs: 32 KB

• Outputs: 32 KB

• Max IO modules: 2048

• Subprocess images: up to 32

Hardware Configuration

• Distributed IO systems: 32

• Max modules:

  • ET 200SP: 64

  • ET 200AL: 16

Time Features

• Hardware clock with 6-week backup

• Max deviation: 10 s/day (typ. 2 s)

• Clock synchronization supported (NTP, DP, AS)

Interfaces

PROFINET Interface (1)

• 3-port switch (RJ45, via BusAdapter)

• Supported BusAdapters: RJ45, M12, LC, FC, SCRJ

• Supports PROFINET IO Controller & Device

• Webserver, SIMATIC communication, Open IE comm.

PROFIBUS (via CM DP)

• DP Master/Slave supported

• Up to 125 DP devices

Communication

• Connections: Max 128

• Protocols: TCP/IP, ISO-on-TCP, UDP, DHCP, DNS, SNMP, LLDP

• Encryption: Optional

• Web server: HTTP/HTTPS

OPC UA

• Requires runtime license

• Client + Server supported

• Up to 50,000 variables, 32 sessions

• Method calls, alarms & conditions supported

Diagnostics

• LEDs: RUN/STOP, ERROR, MAINT, PWR

• Diagnostic buffer: 1000 entries (500 retentive)

• Traces: 4 (512 KB each)

Technology Functions

• Motion Control

  • 1120 MC resources

  • Up to 11 axes (4 ms cycle) / 14 axes (8 ms)

• PID control: PID_Compact, PID_3Step, PID-Temp

• High-speed counters supported

Security

• Secure Boot

• Signed firmware

• Protection levels: Write, Read/Write, Complete

• User/Role management

Environmental Conditions

• Operating temperature:

  • Horizontal: -30C to +60C

  • Vertical: -30C to +50C

• Max altitude: 5000 m

Dimensions & Weight

• W H D: 100 117 75 mm

• Weight: 265 g

The Siemens SIMATIC ET 200SP CPU 1512SP-1 PN (Part Number: 6ES7512-1DM03-0AB0) is a central processing unit designed for medium to high-performance applications within the ET 200SP distributed I/O system.

Key Features:

• Memory Capacity: 200 KB for program data and 1 MB for user data, accommodating complex control tasks.
• Communication Interface: Integrated PROFINET IRT with a 3-port switch, enabling efficient data exchange and network integration.
• Performance: Achieves a bit performance of 48 ns, ensuring rapid processing of control operations.
• Compatibility: Requires a SIMATIC Memory Card for data storage and a BusAdapter for connecting additional modules.

Applications:

This CPU is ideal for applications requiring robust and scalable control solutions, including:

• Manufacturing automation
• Process control systems
• Building automation
