About SIMATIC S7-1500 6ES7511-1FL03-0AB0

Data Sheet: 6ES7511-1FL03-0AB0

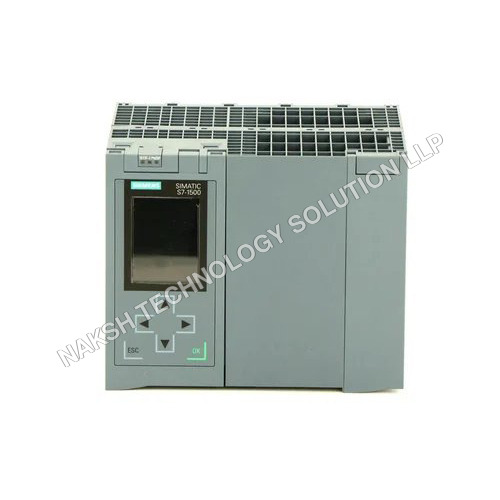

SIMATIC S7-1500F CPU 1511F-1 PN

Central processing unit with:

• Program memory: 450 KB

• Data memory: 1.5 MB

• Interface: PROFINET IRT with 2-port switch

• Bit performance: 25 ns

• SIMATIC Memory Card required

• Approvals/certificates as per entry 109815653 on Siemens Support.

General Information

• Product type: CPU 1511F-1 PN

• HW status: FS03

• Firmware version: V3.1

• FW update: Yes

Product Functions

• I&M data: Yes (I&M0 to I&M3)

• Isochronous mode: Yes (Distributed: 500 s, Central: 1 ms)

• SysLog: Yes

Engineering

• TIA Portal from V19 (FW 3.1) / V18 (FW 3.0)

• Older versions: Configure as 6ES7511-1FK02-0AB0

Display & Controls

• Screen: 3.45 cm

• Keys: 8

• Mode buttons: 2

Supply Voltage

• Rated: 24 V DC

• Range: 19.2 28.8 V DC

• Reverse polarity protection: Yes

Mains Buffering

• Stored energy time: 5 ms

• Repeat rate: 1/s

Input Current

• Rated consumption: 0.56 A

• Max consumption: 0.9 A

• Inrush current: 1.15 A

• It: 0.5 As

Power

• Backplane bus feed: 10 W

• Backplane consumption: 5.5 W

• Typical power loss: 3.4 W

Memory

• SIMATIC Memory Card slot: 1

• Memory card required: Yes

• Program memory: 450 KB

• Data memory: 1.5 MB

• Load memory via card: Up to 32 GB

• Maintenance-free backup: Yes

CPU Processing Times

• Bit ops: 25 ns

• Word ops: 32 ns

• Fixed-point: 42 ns

• Floating-point: 170 ns

Blocks & Addressing

Blocks

• Total elements: 4000 (OB, FB, FC, DB, UDT)

• DB range: 159999 (User), 6000060999 (System)

• DB size: Max 1.5 MB / 64 KB for absolute addressing

• FB/FC size: Max 450 KB

• OB size: Max 450 KB

OB Resources

• Cycle OBs: 100

• Time alarms: 20

• Delay alarms: 20

• Cyclic interrupts: 20

• Process alarms: 50

• DPV1 alarms: 3

• Isochronous OBs: 2

• Startup OBs: 100

• Error OBs: 6

Retentivity

• Total retentive area: 256 KB

• Extended retentive area (with PS 6): 1.5 MB

• Adjustable retentivity: Yes for DBs, timers, counters

Address Areas

• Max IO modules: 2048

• Inputs: 32 KB

• Outputs: 32 KB

• Subprocess images: up to 32

Hardware Configuration

• Distributed IO systems: 32

• DP masters via CM: 4

• IO controllers: 1 integrated + 4 via CM

Time of Day Clock

• Backup: 6 weeks @ 40C

• Deviation: 10 s/day (typ. 2 s)

Interfaces

PROFINET (X1)

• Ports: 2 (RJ45)

• Protocols: PROFINET IO Controller/Device, TCP/IP, UDP, Web server, etc.

• Media redundancy: MRP, MRPD

• Max IO devices: 128

PROFIsafe: Yes (V2.4 / V2.6)

Communication

• Max connections: 128

• Reserved for ES/HMI/Web: 10

• OPC UA server & client supported

• Modbus TCP supported

Diagnostics & Tools

• Diagnostic buffer: 1000 entries (500 power-fail proof)

• Traces: 4, each 512 KB

• Forcing/status: Yes (non-failsafe)

Motion Control

• Motion resources: 1120

• Positioning axes:

  • 4 ms cycle: 11

  • 8 ms cycle: 14

Safety Performance

• PL: PLe (ISO 13849-1)

• SIL: SIL 3 (IEC 61508)

• PFDavg < 210

• PFH < 110

Environmental Conditions

• Operating temperature:

  • Horizontal: -30C to +60C

  • Vertical: -30C to +40C

• Storage: -40C to +70C

• Altitude: Up to 5000 m

Dimensions & Weight

• Width: 35 mm

• Height: 147 mm

• Depth: 129 mm

• Weight: 336 g
