The SIMATIC S7-1500R, CPU 1513R-1PN is a ruggedized PLC designed for extreme industrial environments. It is part of the SIMATIC S7-1500 series, offering advanced control and communication functions.

Key Features:

• Rugged design: Resistant to extreme temperatures, vibrations, and humidity

• High-performance processing: Fast execution of complex control algorithms

• PROFINET communication: Reliable and fast connectivity with other devices

• Integrated safety functions: Supports advanced safety protocols

Technical Specifications:

• CPU Type: CPU 1513R-1PN

• Processing Power: High-performance

• Memory: Large program and data memory

• Communication: PROFINET, PROFIBUS, and other protocols

• Compatibility: SIMATIC S7-1500 systems

Applications:

• Industrial automation in harsh environments

• Safety-critical control systems

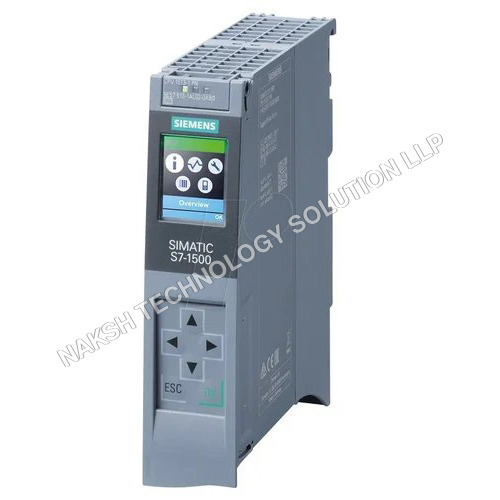

SIMATIC S7-1500R CPU 1513R-1 PN

Article No.: 6ES7513-1RM03-0AB0
Type: Central Processing Unit (Redundant)
Memory: 600 KB program, 2.5 MB data

General Information

• HW Functional Status: FS04

• Firmware Version: V4.0 (FW update possible)

• I&M Data: I&M0 to I&M3

• Isochronous Mode: No

• SysLog: Yes

• Engineering: STEP 7 TIA Portal V20 (FW V4.0) / V18 (FW V3.0)

Redundancy & Display

• Stand-alone Operation: Yes

• Screen Diagonal: 3.45 cm

• Control Elements: 8 keys, 2 mode buttons

Supply Voltage & Power

• Rated Voltage: 24 V DC (19.2 28.8 V)

• Reverse Polarity Protection: Yes

• Mains Buffering: 5 ms

• Rated Current: 0.56 A (max 0.87 A)

• Inrush Current: 1.15 A, It = 0.6 As

• Power from Backplane Bus: 5.5 W

• Power Loss: 3.4 W

Memory & Data

• SIMATIC Memory Card: Required (1 slot, max 32 GB)

• Work Memory: 600 KB (program), 2.5 MB (data)

• Backup: Maintenance-free

• DB, FB, FC, OB: Supports up to 4,000 elements

• Retentive Data Area: 256 KB (standard), 2.5 MB (extended)

• Flags: Max. 16 KB

• Clock Memories: 8

CPU Performance

• Bit Operations: 20 ns

• Word Operations: 24 ns

• Fixed-point Arithmetic: 32 ns

• Floating-point Arithmetic: 128 ns

• Counters: S7 = 2,048; IEC = unlimited (memory-limited)

• Timers: S7 = 2,048; IEC = unlimited (memory-limited)

I/O & Addressing

• Max I/O Modules: 2,048

• I/O Address Area: 32 KB inputs, 32 KB outputs

• Subprocess Images: Max. 31

• Distributed I/O Systems: Max. 16

Clock & Time

• Hardware Clock Backup: 6 weeks

• Clock Deviation: Max 10 s/day (typ. 2 s)

• Operating Hours Counter: 16

• NTP Synchronization: Supported

Interfaces

• PROFINET RT: 1 interface, 2 ports, integrated switch

• IP Protocol: IPv4

• PROFINET IO Controller: Yes (max 64 devices)

• Web Server: HTTPS only, Web API (max 50 sessions)

• OPC UA: Server (data access), runtime license required

• MODBUS TCP: Supported

Diagnostics & Status

• LEDs: RUN/STOP, ERROR, MAINT, STOP ACTIVE, LINK TX/RX

• Diagnostic Buffer: 1,000 entries (500 powerfail-proof)

• Traces: 4, max 512 KB per trace

• Forcing: Supported (max 200 variables)

Programming & Control

• Languages: LAD, FBD, STL, SCL, CFC, GRAPH

• Know-how Protection: User program protection, block protection

• User Administration: Max 100 users, 100 groups, 50 roles

• PID Controllers: Universal, 3-Step, Temperature

• Counting & Measuring: Supported

Ambient Conditions

• Operating Temperature: Horizontal -30 60C (Display max 50C), Vertical -30 40C

• Storage Temperature: -40 70C

• Installation Altitude: Max. 5,000 m above sea level

Mechanics / Material

• Dimensions: 35 147 129 mm (W H D)

• Weight: 336 g
