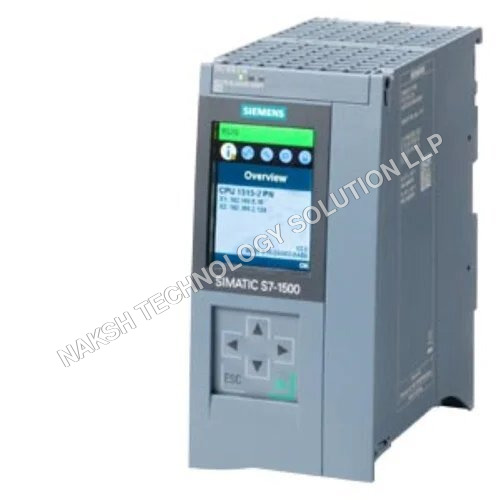

SIMATIC S7-1500T, CPU 1516T-3 6ES7515-2UN03-0AB0

About SIMATIC S7-1500T, CPU 1516T-3 6ES7515-2UN03-0AB0

Manufacturer SeriesS7 1500Communication Protocols Profibus Mounting Type Rack Mount Output Type PLC Pulse Transmission Output1.5 MB work memory for program and 4.5 MB for data SIMATIC S7-1500T, CPU 1515TF-2 PN, central processing unit with 1.5 MB work memory for program and 4.5 MB for data, 1st interface: PROFINET IRT with 2-port switch, 2nd interface: PROFINET RT, 6 ns bit performance, SIMATIC Memory Card required

General Information

• Product type: CPU 1516T-3 PN/DP

• HW status: FS11

• Firmware: V3.1 (update possible)

• Memory card required: Yes

Product Functions

• I&M data: Yes (I&M0 to I&M3)

• Isochronous mode: Yes (distributed and central)

• SysLog: Yes

• Engineering: STEP 7 TIA Portal V19 (FW V3.1) / V15 (FW V2.5) or higher

Display & Controls

• Screen: 6.1 cm diagonal

• Keys: 6

• Mode selector switch: 1

Supply Voltage

• Rated: 24 V DC (range 19.228.8 V)

• Reverse polarity protection: Yes

• Mains buffering: 5 ms

• Current: 1.2 A (typ.), 1.5 A (max)

• Inrush current: 1.9 A

• Power consumption: 30 W (backplane bus), 24 W (typical loss)

Memory

• Work memory: 3 MB (program), 7.5 MB (data)

• Load memory: Up to 32 GB (SIMATIC Memory Card)

• Slots for memory card: 1

• Backup: maintenance-free

CPU Processing Times

• Bit: 6 ns

• Word: 7 ns

• Fixed point: 9 ns

• Floating point: 37 ns

CPU Blocks

• DB: 159999 (user), max 7.5 MB

• FB/FC: 065535, max 1 MB

• OB: max 1 MB, includes various cycle and alarm OBs

Counters & Timers

• S7 counters: 2048 (retentive adjustable)

• IEC counters: Any (limited by main memory)

• S7 timers: 2048 (retentive adjustable)

• IEC timers: Any (limited by main memory)

Data Areas

• Retentive: 512 KB

• Extended retentive: 7.5 MB

• Flags: 16 KB, 8 clock memories

I/O

• Max modules: 8192

• Input/Output address: 32 KB each

• Subprocess images: max 32

• Distributed IO systems: 64

Interfaces

• PROFINET: 2 (X1: 2 ports, X2: 1 port)

• PROFIBUS DP: 1 (RS-485)

• Ethernet: 100 Mbps, autonegotiation & autoclrossing

• OPC UA: Client & Server supported (medium license required)

• MODBUS TCP supported

Isochronous Mode & Motion Control

• Equidistance: Yes

• Motion Control axes: 6400 resources

• Positioning axes: 55 (4 ms cycle), 80 (8 ms cycle)

• Extended Motion Control resources: 192

Controller Functions

• PID_Compact, PID_3Step, PID_Temp

• High-speed counters supported

Standards & Approvals

• EMV, FM, CCC-Ex, Marine, NK, CCS

• Environmental product declaration (CO2 eq: 570 kg total)

Ambient Conditions

• Operating temp: 060 C horizontal, 040 C vertical

• Storage temp: -4070 C

• Max altitude: 5000 m

Programming Languages

• LAD, FBD, STL, SCL, CFC, GRAPH

Security & Protection

• User program protection, copy protection, block protection

• Passwords, write/read protection, device-wide user administration

Physical Specifications

• Dimensions: 175 147 129 mm

• Weight: 1929 g
