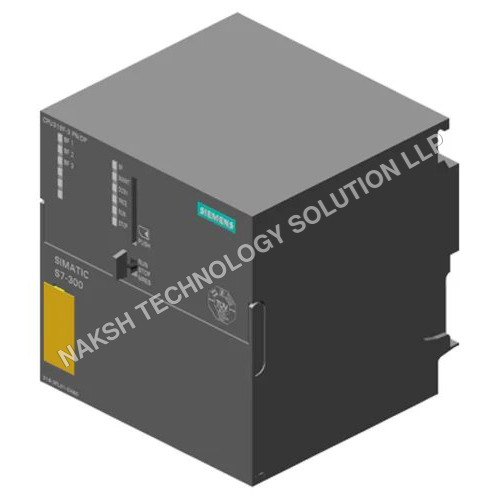

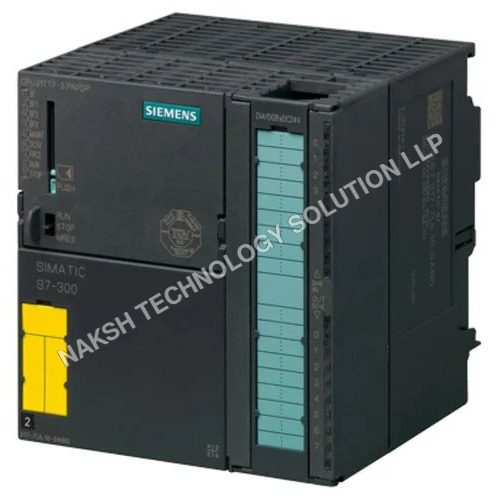

SIMATIC S7-300 6ES7317-7UL10-0AB0

The SIMATIC S7-300 6ES7317-7UL10-0AB0 is a high-performance programmable logic controller designed for advanced automation applications. Its robust IP20 protection level and compact dimensions (120 x 125 x 130 mm) make it ideal for installation on DIN rails, ensuring maximum space efficiency. With a rated voltage of 24V DC and a power rating of 8.5W, it delivers reliable energy efficiency for demanding environments. This device operates efficiently within temperatures ranging from 0C to 60C and accommodates up to 95% humidity, making it suitable for diverse industrial settings. Featuring an isolation capacity of up to 500V DC, it promotes safe and secure operations. Its sleek black design ensures sophistication, while weighing only 640 grams for easy handling. Multi-frequency support (50/60Hz) allows global compatibility. Whether used in factory automation or process control, the SIMATIC S7-300 6ES7317-7UL10-0AB0 stands as a trusted solution.

Basic Details

• Product Type: CPU 317TF-3 PN/DP

• HW Status: 01

• Firmware: CPU V3.2, Technology V4.1.5

• Work Memory: 1.5 MB

• Load Memory: Micro Memory Card (MMC) up to 8 MB required

• Integrated I/O: Yes

• Front Connector: 1 40-pole

• Interfaces:

  • MPI/DP (12 Mbit/s)

  • PROFIBUS DP (Drive)

  • PROFINET (2-port switch)

Power Supply

• Rated Voltage: 24 V DC

• Range: 19.228.8 V

• Current Consumption: 1100 mA

• No-Load Current: 270 mA

• Inrush Current: 6.5 A

• Power Loss: 8.5 W

• Reverse Polarity Protection: Yes (L+)

Memory

• Work Memory: 1536 kB (integrated)

• Load Memory: MMC (max 8 MB)

• Backup: MMC (maintenance-free)

CPU Performance

• Bit Operations: 0.025 s

• Word Operations: 0.03 s

• Fixed-Point: 0.04 s

• Floating-Point: 0.16 s

Blocks

• Total Blocks: 2048 (DB, FB, FC)

• DB/FB/FC Size: Max 64 kB

• OB Support: OB1, OB10, OB20/21, OB3235, OB40, OB5557, OB61, OB65, OB80/82/83/85/86/87, OB100, OB121/122

Timers & Counters

• S7 Counters: 512

• S7 Timers: 512

• IEC Timers/Counters: Unlimited (depends on RAM)

Address Areas

• Inputs: 8192 bytes

• Outputs: 8192 bytes

• Process Image: 1 KB default (expandable to 8 KB)

Digital I/O

Digital Inputs

• Quantity: 4

• Voltage: 24 V DC

• Input Current: 7 mA

• Cable Length: Up to 1000 m

Digital Outputs

• Quantity: 8 (all high-speed)

• Voltage: 24 V DC

• Output Current: 0.5 A per channel

• Short-Circuit Protection: Yes

• Switching Frequency: 100 Hz (resistive)

Interfaces

PROFIBUS / MPI

• RS485 Ports: 2

• MPI Support: Yes (1st Interface)

• PROFIBUS DP Master/Slave: Yes

• Max Baud Rate: 12 Mbit/s

• DP Devices: Up to 124

PROFINET

• Ports: 2 (RJ45)

• Functions: IO Controller + IO Device

• Speed: 10/100 Mbit/s

• IRT, MRP, Web Server: Supported

• IO Devices Supported: Max 128

Communication

• Routing: Yes

• S7 Communication: Client/Server

• Open IE (TCP/IP, ISO-on-TCP, UDP): Yes

• Web Server: Yes

• Global Data: Supported

Clock

• Real-Time Clock: Yes

• Backup Time: 6 weeks (at 40 C)

Mechanical Data

• Width: 120 mm

• Height: 125 mm

• Depth: 130 mm

• Weight: Approx. 640 g

Technical Details
