Siemens SIMATIC S7-300

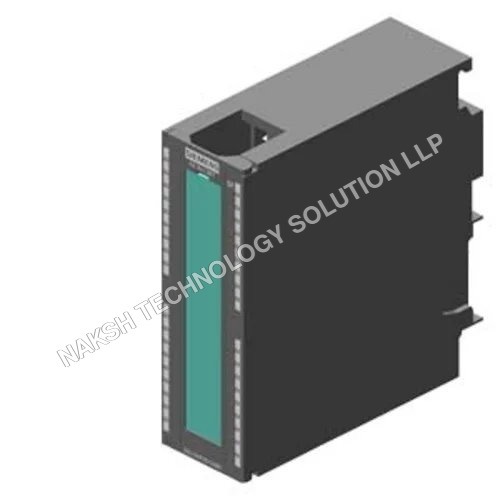

Digital Input Module SM 321
Spare Part Isolated 16 DI, 120/230 V AC, 120-pole

Supply Voltage

• Load Voltage (L1): 120/230 V AC (all load voltages must have same phase)

• Input Current (backplane bus 5 V DC): Max. 29 mA

• Power Loss (typical): 4.9 W

Digital Inputs

• Number of Inputs: 16

• Input Type: AC

• Rated Voltage: 120/230 V AC, 4763 Hz

• Signal Levels:

  • 0: 040 V

  • 1: 79264 V

• Input Current:

  • 16 mA (230 V, 50 Hz)

  • 6.5 mA (120 V, 60 Hz)

• Input Characteristic: IEC 61131 Type 1

• Number of Controllable Inputs:

  • Horizontal installation: Max 16 (up to 60 C)

  • Vertical installation: Max 16 (up to 40 C)

• Input Delay (for rated voltage):

  • 0 1: 25 ms

  • 1 0: 25 ms

• Cable Length:

  • Shielded: Max 1,000 m

  • Unshielded: Max 600 m

Encoder

• Connectable Encoders: 2-wire sensor

• Permissible Quiescent Current: Max 2 mA

Diagnostics / Status

• Alarms / Diagnostic Function: No

• LED Indicators:

  • Digital input status: Green

  • Group error SF: No

Potential Separation & Isolation

• Between Channels: No

• Between Channels (groups of 4): Yes

• Between Channels and Backplane Bus: Yes, via Optocoupler

• Isolation Tested: 4,000 V DC

Connection Method

• Required Front Connector: 20-pin

Dimensions & Weight

• Width: 40 mm

• Height: 125 mm

• Depth: 120 mm

• Weight: 240 g
