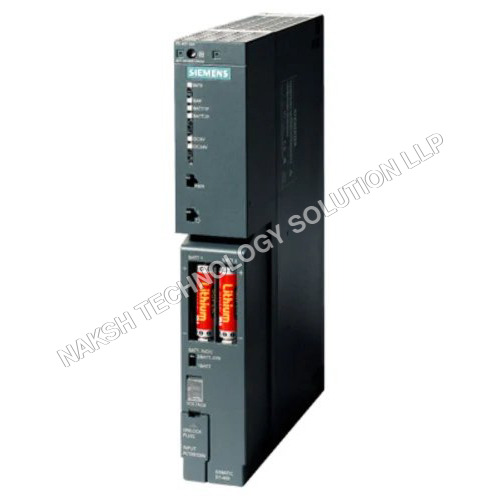

SIMATIC S7-400 6ES7405-0DA02-0AA1

The SIMATIC S7-400 6ES7405-0DA02-0AA1 is a robust and versatile automation solution designed for demanding industrial applications.

Key Specifications:

• Rated Voltage: 24V DC

• Rated Current: 18 A

• Power Rating: 48 W

• Dimensions (L W H): 25 290 217 mm

• Weight: 800 g

• Operating Temperature: 0C to +70C

• Humidity Tolerance: Up to 95%

• Frequency: 50/60 Hz

• Mounting: DIN rail

• Protection Level: IP20

• Color: Grey

Features:

• Compact and lightweight design for easy installation

• Reliable performance under varied temperature and humidity conditions

• Energy-efficient operations with stable power handling

• DIN-rail mountable for convenient integration

• Suitable for manufacturing, process automation, and monitoring environments

This unit provides a dependable and efficient control system for modern industrial automation applications.

SIMATIC PCS 7 PS 405 Wide Range Power Supply

Product Code: 6ES7405-0DA02-0AA1

• Type: 4A XTR S7-400 Power Supply
• Voltage Range: 24 / 48 / 60 V DC
• Output: 5 V DC / 4 A
• Features: Extended temperature range, conformal coating

Supply Voltage

• Rated Values: 24 V DC / 48 V DC / 60 V DC

Mains Buffering

• Stored Energy Time: 20 ms

• NAMUR-compliant buffering: Yes

Input Current

• 24 V DC: 2 A

• 48 V DC: 1 A

• 60 V DC: 0.8 A

• Inrush Current (max): 18 A, FWHM 20 ms

Output Voltage

• Type: DC

• Rated Values: 5 V DC / 24 V DC

• Output Current:

  • 5 V DC (backplane bus): max. 4 A, no base load required

  • 24 V DC (backplane bus): max. 0.5 A, idling-proof

• Short-circuit protection: Yes

Power

• Active Power Input (typ.): 48 W

• Power Loss (typ.): 16 W

Battery (Optional)

• Backup Battery: 1x Lithium AA, 3.6 V / 2.2 Ah

Hardware Configuration

• Required Slots: 1

Potential Separation & Isolation

• Primary / Secondary: Yes

• Isolation: 1/2

• Overvoltage Category: II

• Equipment Protection Class: I, with protective conductor

Standards / Approvals

• FM Approval: Yes (Ta: 0 C to 70 C, T4)

Ambient Conditions

• Operating Temperature: 0 70 C

Connection Method

• Electrical Connection: 3x 1.5 mm, solid or stranded wire with end sleeve

• External Diameter: 3 9 mm

Dimensions & Weight

• Width: 25 mm

• Height: 290 mm

• Depth: 217 mm

• Weight: 800 g

Technical Details
