About SIMATIC S7-400 6ES7460-0AA01-0AB0

The SIMATIC S7-400 6ES7460-0AA01-0AB0 is a high-quality industrial automation device with a smooth black finish. It comes with a 1-phase configuration, operating at a frequency of 50/60 Hertz (HZ). Its standard size and IP20 rating make it suitable for various industrial automation applications, ensuring reliable performance.

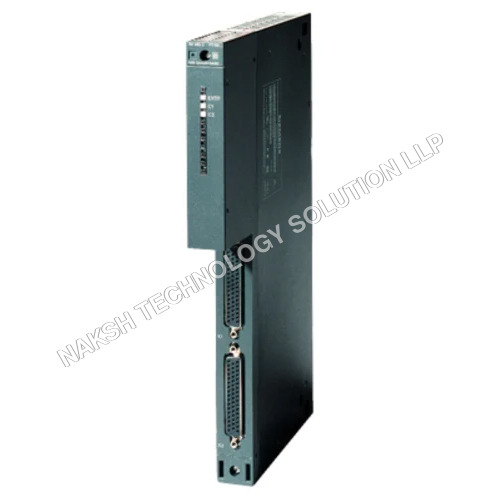

SIMATIC S7-400 Interface Module Send IM 460-0 (6ES7460-0AA01-0AB0)

Type: Interface Module for central coupling without PS transfer
Bus type: C-bus

Electrical Data

• Input current (from backplane bus 5 V DC): max. 140 mA

• Power loss: max. 700 mW

Hardware Configuration

• Max cable length between first and last interface module: 5 m

• Connection method: termination plug 6ES7461-0AA0-7AA0

Dimensions

• Width: 25 mm

• Height: 290 mm

• Depth: 280 mm

• Weight: approx. 600 g

Classifications

• eClass: 14 / 12 / 9.1 / 9 / 8 / 7.1 / 6 27-24-22-08

• ETIM 9 / 8 / 7: EC001423

• IDEA 4: 3564

• UNSPSC 15: 32-15-17-05

Approvals / Certificates

• General Product Approval

• KC, FM (for use in hazardous locations)

• Marine / Shipping: NK, CCS
