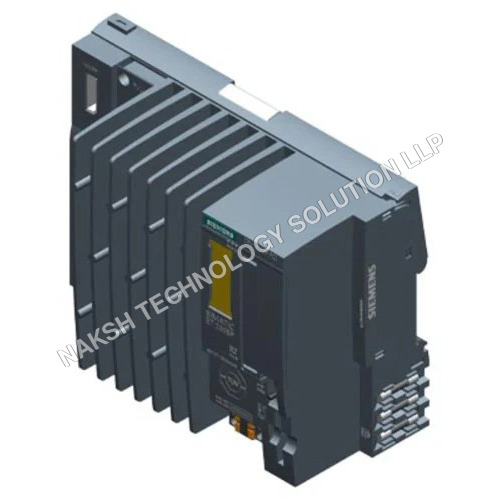

CPU1515SP PC2 (SIMATIC Industrial OS) 6ES7677-2DB43-0GB1

CPU1515SP PC2 (SIMATIC Industrial OS) Model 6ES7677-2DB43-0GB1

The CPU1515SP PC2 is an advanced automation controller designed for demanding industrial applications.

Key Specifications:

• Processor: Intel Atom E3940, 4 cores, 1.6 GHz

• Rated Voltage: 24 V DC

• Rated Current: 2.9 A

• Power Consumption: 8.75 W

• Power Loss: 16 W

• Operating Temperature: -20C to +60C

• Humidity Tolerance: Up to 95%

• Protection Level: IP20

• Dimensions (L W H): 160 117 75 mm

• Weight: 0.83 kg

• Mounting: DIN rail

Features:

• Compact and lightweight design for easy DIN-rail installation

• Robust performance for continuous industrial operation

• High durability under extreme humidity and varied conditions

• Energy-efficient with minimal power loss

• Suitable for reliable and precise automation processes

Ideal for industrial environments requiring consistent and high-performance automation solutions.

SIMATIC ET 200SP Open Controller CPU1515SP PC2

Model: 6ES7677-2DB43-0GB1
Operating System: SIMATIC Industrial OS V3.x
Preinstalled Software: S7-1500 Software Controller CPU 1505SP V3.x

General Information

• Product Type: CPU1515SP PC2 IndOS

• Firmware Version: V30.1

• I&M Data: Yes, I&M0 to I&M3

• Isochronous Mode: Yes (with PROFINET, minimum OB cycle 500 s)

• SysLog: Yes

• Engineering Software: STEP 7 TIA Portal V19 or later

Hardware Specifications

• Processor: Intel Atom E3940, 4 cores, 1.6 GHz

• Memory:

  • Main: 8 GB DDR3L RAM

  • Work memory: 2 MB (program), 7.5 MB (data), 20 MB (CPU runtime)

  • Load memory: 320 MB

  • CFast: 128 GB

• Supply Voltage: 24 V DC (19.2 28.8 V DC)

• Current Consumption: 1.8 A (full load), 0.5 A (no-load), max 2.9 A

• Power: Max 43 W (incl. ET 200SP modules & USB), Backplane 8.75 W, Loss 16 W

• UPS Backup: Yes

• Protection Level: IP20

• Dimensions (L W H): 160 117 75 mm

• Weight: 0.83 kg

• Mounting: DIN-rail

Interfaces

• Ethernet: 1 10/100/1000 Mbps, 1 PROFINET via BusAdapter

• USB: 2 USB 3.0, 2 USB 2.0

• Video: 1 DisplayPort

• SD/MMC Slot: 1

• Bus Connections: ET 200SP BusAdapter

• PROFIBUS: via CM DP, RS-485

I/O & Memory

• Number of I/O Modules: 8192

• Inputs: 32 kB

• Outputs: 32 kB

• Data Blocks (DB): Max 7,999, 5 MB each

• Function Blocks (FB): Max 7,998, 1024 kB each

• Function Calls (FC): Max 7,999, 1024 kB each

• Organization Blocks (OB): Various types, up to 100 free cycle OBs

• Retentive Data: Up to 410 kB

PROFINET & Ethernet

• PROFINET IO Controller: Yes, up to 128 IO devices

• Isochronous Mode: Yes

• IRT Support: Yes

• PROFINET Security: Class 1

• Ethernet Ports: 1 1 Gbps RJ45

Protocols & Communication

• TCP/IP, UDP, ISO-on-TCP, MODBUS TCP

• Open IE communication, Web server (HTTP/HTTPS), OPC UA client/server

• S7 communication (client/server), PG/OP, S7 routing

Motion Control & PID

• Motion Control: 2400 technology objects

• PID Controllers: PID_Compact, PID_3Step, PID-Temp

• High-Speed Counters: Yes

Environmental Conditions

• Operating Temperature: -20C to +60C (horizontal)

• Vertical Installation Max: 50C

• Storage/Transport: -40C to +70C

• Humidity: up to 95%

• Shock & Vibration Tested: IEC 60068-2-6, -27, -29

Standards & Approvals

• CE, CSA, cULus, FM, RCM

• Marine / Shipping compliance

Key Features

• Compact DIN-rail mounting, robust design

• High-performance automation for industrial environments

• Energy-efficient operation, minimal power loss

• Supports complex I/O and distributed systems

• Preinstalled software and Industrial OS for seamless integration

Technical Details
