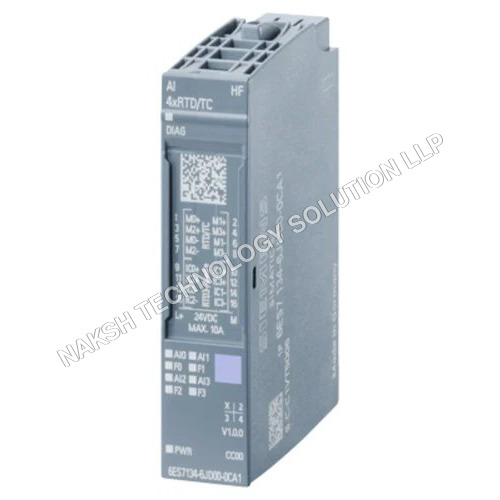

SIEMENS ET 200SP, AI 4xRTDTC 2-3-4-Wire HF 6ES7134-6JD00-0CA1

The SIEMENS ET 200SP AI 4xRTD/TC High Feature (6ES7134-6JD00-0CA1) analog input module is a compact and high-performing solution for precise temperature measurement and industrial automation. Designed for ease of installation using DIN Rail mounting, it supports 2-/3-/4-wire configurations for RTD/TC sensors. The module operates on a steady 24V DC power supply and handles input current of up to 35mA, ensuring reliable functionality. Built with durable aluminium material and featuring a matt grey surface finish, it guarantees a robust yet sleek design. With IP20 protection level and operating temperatures ranging between -30C to +60C, this module is effective in diverse environments. The devices small dimensions (15 x 73 x 58 mm) coupled with channel diagnostics and 16-bit resolution ensure seamless integration within your system. It offers exceptional precision with a tolerance of +/-0.1%, making it suitable for demanding industrial setups. Backed by a 1-year warranty, this module is a reliable and efficient solution for your automation needs.

General Information

• Product Type: AI 8xRTD/TC 2-wire HF

• Hardware Status: From FS05

• Firmware Version: V2.1 (FW update possible)

• BaseUnits Supported: A0, A1

• Color Code: CC00

Product Functions

• I&M Data: Yes (I&M0 to I&M3)

• Isochronous Mode: No

• Measuring Range Scalable: Yes

Engineering

• TIA Portal: V16, V17, V18

• STEP 7: V5.5 SP3 / V5.5 SP4

• PCS 7: V8.1 SP1

• PROFIBUS: GSD Revision 3, 5, or higher

• PROFINET: GSDML V2.35

Operating Mode

• Oversampling: No

• MSI: No

• Reparameterization in RUN: Yes

• Calibration in RUN: Yes

Supply Voltage

• Rated: 24 V DC

• Range: 19.2 V to 28.8 V

• Reverse Polarity Protection: Yes

Input Current

• Max Consumption: 35 mA

Power Loss

• Typical: 0.75 W

Address Area

• Max Address Space: 16 bytes + 1 byte QI info

Hardware Configuration

• Mechanical Coding: Yes (Type A)

• Supported BaseUnits: A0, A1 (2-wire connection)

Analog Inputs

• Channels: 8

• Max Input Voltage (destruction): 30 V

• Measurement Current (resistance): 2 mA

• Temperature Unit Selectable: C / F / K

Voltage Input Ranges

• 1 V / 250 mV / 50 mV / 80 mV (all 16-bit, 1 M input resistance)

Thermocouple Types Supported

TC Types: B, C, E, J, K, L, N, R, S, T, U, TXK/TXK(L) (GOST)

• Input Resistance: 1 M

• Temperature Compensation:

  • Parameterizable

  • Internal reference with BU A1

  • 4 reference channel groups

Max Cable Length:

• Shielded: 200 m

• TC: 50 m

Resistance Thermometers (RTD)

Supported Types:
Ni100, Ni1000, LG-Ni1000, Ni120, Ni200, Ni500, Pt100, Pt1000, Pt200, Pt500

• Input resistance: 1 M

Resistance Ranges:

• 0150, 0300, 0600, 03000, 06000, PTC (15-bit)

Analog Value Processing

• Conversion Principle: Sigma-Delta

• Resolution: 16-bit

• Integration Time: Parameterizable

• Conversion Times: 180 / 60 / 50 / 67.5 / 22.5 / 18.75 ms

• Smoothing: 4 levels (None / 4 / 8 / 16)

Error & Accuracy

• Linearity Error: 0.01%

• Temperature Error: 0.0009%/K

• Repeatability: 0.05%

• Voltage & Resistance Error (full range): 0.1%

• Crosstalk: -50 dB

Diagnostics / Alarms

• Diagnostic Alarm: Yes

• Limit Value Alarms: 2 high + 2 low

• Wire-break: Yes (per channel)

• Group Error: Yes

• Overflow/Underflow: Yes

LED Indicators:

• PWR LED (green)

• Channel Status (green)

• Channel Diagnostics (red)

• Module Diagnostics (green/red)

Isolation / Potential Separation

• Channel-to-Bus: Yes

• Channel-to-Power: Yes

• Channel-to-Channel: No

• Tested With: 707 V DC

• Max Potential Difference Between Inputs: 10 V DC

Ambient Conditions

• Operating Temperature:

  • Horizontal: -30C to +60C

  • Vertical: -30C to +50C

• Altitude: Up to 2000 m (higher on request)

Dimensions

• Width: 15 mm

• Height: 73 mm

• Depth: 58 mm

Technical Details
