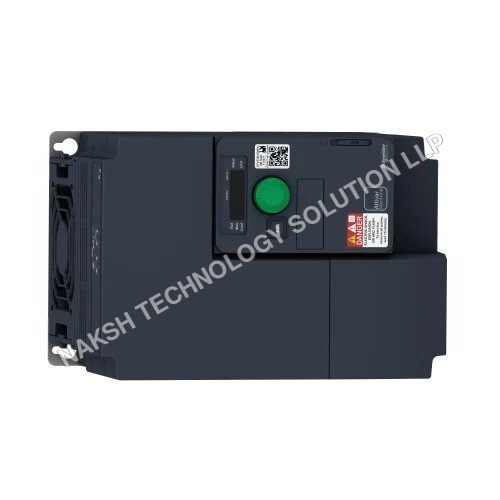

Schneider ATV320U75M3C Drive - Reliable and Efficient VFD by Naksh Technology Solution LLP

Naksh Technology Solution LLP offers the Schneider ATV320U75M3C Variable Frequency Drive (VFD), a high-performance 7.5kW (10HP), 380-500V AC, 3-phase drive designed for industrial automation and motor control applications. This drive provides smooth operation, energy efficiency, and robust protection, making it ideal for demanding environments.

Key Features:

• 7.5kW (10HP) power rating
• Compact and durable design for industrial use
• Advanced motor control for enhanced efficiency
• Overload protection and long-lasting performance
• Suitable for pumps, conveyors, fans, and various machinery

Buy the Schneider ATV320U75M3C drive from Naksh Technology Solution LLP, your trusted supplier of automation solutions. Contact us today for the best prices and expert support

Altivar Machine ATV320 7.5 kW, 200240 V, 3 Phases

• Model: ATV320U75M3C
• Type: Variable Speed Drive (VSD) Compact, Wall Mount
• Application: Complex machines

Electrical Data

• Supply Voltage: 200240 V AC (-15% / +10%)

• Motor Power: 7.5 kW (Heavy Duty)

• Nominal Output Current: 33 A

• Line Current: 45.3 A (200 V), 38.2 A (240 V)

• Maximum Input Current per Phase: 45.3 A

• Apparent Power: 15.9 kVA (240 V)

• Prospective Line Isc: 22 kA

• Maximum Output Frequency: 0.599 kHz

• Switching Frequency: 216 kHz adjustable (Nominal 4 kHz)

• Transient Overtorque: 170200% of nominal motor torque

• Braking: By DC injection, brake chopper integrated

Motor Control

• Asynchronous Motor Profiles:

  • Voltage/Frequency ratio, 5 points

  • Energy Saving U/f (quadratic)

  • Flux Vector Control without sensor (standard & energy saving)

  • Voltage/Frequency ratio, 2 points

• Synchronous Motor Profile: Vector control without sensor

• Acceleration / Deceleration: Linear, ramp adaptation, automatic stop with DC injection

• Motor Slip Compensation: Automatic (0300% adjustable)

• 4-Quadrant Operation: Yes

Inputs / Outputs

Digital Inputs: 7

• STO safe torque off, DI1DI6 logic inputs 24 V DC, DI5 programmable as pulse 030 kHz

• Logic: Positive (source) / Negative (sink)

Digital Outputs: 3

• Open collector DQ+, DQ-, 01 kHz, 30 V DC, 100 mA

Analog Inputs: 3

• AI1: Voltage 010 V DC, 30 k

• AI2: Bipolar differential voltage 10 V DC, 30 k

• AI3: Current 020 mA (configurable), 250

Analog Output: 1

• Software configurable: 020 mA (800 ) or 010 V DC (470 ), 10 bits

Relay Outputs: Configurable R1A, R1B, R1C, R2A, R2C

• Max Switching Current: 25 A depending on load type

• Min Switching Current: 5 mA / 24 V DC

Communication

• Protocols: Modbus Serial, CAN open

• Optional Cards: CAN open, EtherCAT, Profibus DP V1, PROFI NET, Ethernet Power link, Ether Net/IP, Device Net

• Method of Access: Slave CAN open

Protection

• Input phase breaks

• Over current between output phases and earth

• Overheating protection

• Short-circuit between motor phases

• Thermal protection

Mechanical Data

• Dimensions (W H D): 150 232 178 mm

• Net Weight: 3.6 kg

• Operating Position: Vertical 10

• Fan Power Dissipation: 293 W

• IP Degree of Protection: IP20

• Environmental Class: 3C3 (chemical), 3S2 (dust)

Environment & Certifications

• Operating Temperature: -10 50 C (without derating), 5060 C (with derating)

• Transport / Storage Temperature: -25 70 C

• Humidity: Class 3K5

• Shock & Vibration: 150 m/s at 11 ms, 10 m/s at 13200 Hz

• Cooling Air Volume: 60 m/h

• Overvoltage Category: III

• Standards / Certifications: CE, ATEX, UL, CSA, EAC, RCM, KC; IEC 61800-5-1

• Electromagnetic Compatibility: IEC 61000-4-2/3/4/5/6/11
