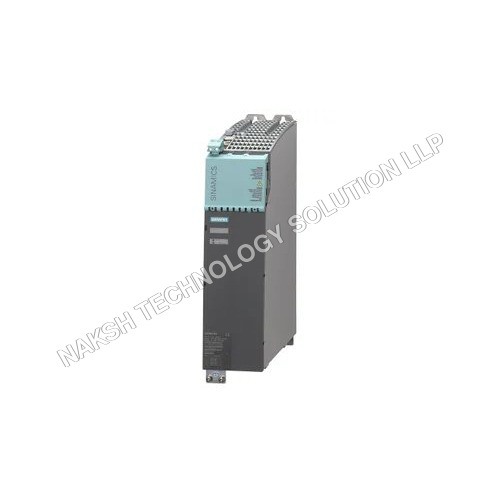

About Siemens Active Line Module-6SL3130-7TE21-6AA4

DESCRIPTION Active Line Module (Book size) with internal air cooling 16 kW NET WEIGHT 7,000 Kg SINAMICS S120 ACTIVE LINE MODULE INPUT: 3-PH 380-480V, 47/63HZ OUTPUT: DC 600V, 27A, 16KW FRAME SIZE: BOOK SIZE INTERNE LUFTKUEHLUNG IN KL. DRIVE-CLIQ LEITUNG

Data Sheet Active Line Module

Article No.: 6SL3130-7TE21-6AA4

Electrical Data

Input

• Number of phases: 3 AC

• Line voltage: 342 528 V

• Line frequency: 47 63 Hz

• Short-circuit strength: 65 kA

• Power factor

  • Active Mode (fundamental): cos = 1

  • Active Mode (total): 1

  • Smart Mode (fundamental): 0.96

  • Smart Mode (total): 0.65 0.90

• Overvoltage category: Class III

• DC Link Voltage

  • At 380400 V AC: 600 V (factory setting)

  • At 400415 V AC: 625 V (factory setting)

  • Smart Mode: 1.35 line voltage

• Electronics power supply: DC 24 V (-15% / +20%)

Connections

Line Side

• Terminal type: Screw-type terminal (X1)

• Conductor cross-section: 2.5 10 mm (AWG 14 8)

• PE conductor: M5 screw

• Shield connection: Integrated connecting plug

• Max. line length:

  • Shielded: 630 m

  • Unshielded: 850 m

Mechanical Data

• Degree of protection: IP20 / UL open type

• Construction: Booksize

• Net weight: 7.0 kg

• Dimensions

  • Width: 100 mm

  • Height: 380 mm

  • Depth: 270 mm

Rated Data

Infeed Power

• Rated: 16 kW (18 hp)

• S6 duty: 21 kW

• Maximum: 35 kW

Regenerative Feedback Power

• Rated: 16 kW (18 hp)

• S6 duty: 21 kW

• Maximum: 35 kW

DC-Link Current

• At 600 V DC: 27 A

• S6 duty: 35 A

• Maximum: 59 A

Input Current

• 380 V AC (3-phase): 26 A

• 400 V AC (3-phase): 25 A

• 480 V AC (3-phase): 21 A

• At 400 V S6 duty: 32 A

• Maximum: 54 A

24 V DC Electronics Supply

• Current requirement: 1.1 A

Busbar Ampacity

• 24 V supply: 20 A

• DC-link connection: 100 A

Capacitance

• Active Line Module: 710 F

• System max: 20,000 F

General Technical Specifications

• Sound pressure level: 60 dB

• Power losses: 0.28 kW

• Cooling type: Internal air cooling

• Cooling air flow: 0.016 m/s

Ambient Conditions

• Operating temperature: 0 40C

• Installation altitude: Up to 1,000 m

Technical Details
