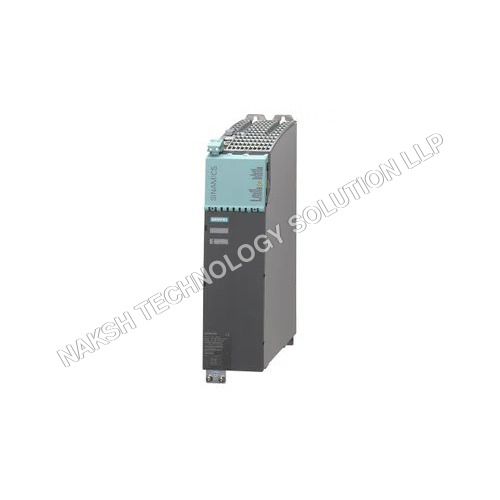

About Siemens Active Line Module-6SL3130-7TE25-5AA3

DESCRIPTIONActiveLine Module (Booksize) with internal air cooling 55 kW NET WEIGHT16,000 Kg SINAMICS S120 ACTIVE LINE MODULE INPUT: 3AC 380-480V, 50/60HZ OUTPUT: DC 600V, 92A, 55KW FRAME SIZE: BOOK SIZE INTERNAL AIR COOLING INCL. DRIVE-CLIQ CABLE

Data Sheet Active Line Module

Article No.: 6SL3130-7TE25-5AA3

Technical data are subject to change. There may be discrepancies between calculated and rating plate values.

Electrical Data

Input

• Number of phases: 3 AC

• Line voltage: 342 528 V

• Line frequency: 47 63 Hz

• Short-circuit strength: 65 kA

Line Power Factor

Active Mode

• Fundamental power factor cos : 1

• Total: 1

Smart Mode

• Fundamental power factor, minimal: 0.96

• Total: 0.65 0.90

• Overvoltage category: Class III

DC Link Voltage

• At 380 400 V AC (factory setting): 600 V

• At 400 415 V AC (factory setting): 625 V

• Smart Mode: 1.35 line voltage

Electronics Power Supply

• DC 24 V (15% / +20%)

Connections

Line Side

• Design: M8 bolt (X1)

• Conductor cross-section: 2.50 95.00 mm (AWG 14 AWG -2)
  (Alternatively 2 35 mm)

• PE conductor: M6 screw

Line Length (max.)

• Shielded: 1,000 m (3,280.84 ft)

• Unshielded: 1,500 m (4,921.26 ft)

Mechanical Data

• Degree of protection: IP20 / UL open type

• Type of construction: Booksize

• Net weight: 17.0 kg (37.48 lb)

Dimensions

• Width: 200 mm (7.87 in)

• Height: 380 mm (14.96 in)

• Depth: 270 mm (10.63 in)

Rated Data

Infeed Power

• Rated value: 55 kW (60 hp)

• For S6 duty: 71 kW

• Maximum: 91 kW

Regenerative Feedback Power

• Rated value: 55 kW (60 hp)

• For S6 duty: 71 kW

• Maximum: 91 kW

DC-Link Current

• At 600 V DC: 92 A

• For S6 duty: 121 A

• Maximum: 152 A

Input Current

• At 380 V AC 3-phase: 88 A

• At 400 V AC 3-phase: 84 A

• At 480 V AC 3-phase: 70 A

• At 400 V S6 duty: 108 A

• At 400 V, maximum: 139 A

24 V DC Power Requirement

• Current requirement (maximum): 1.9 A

Ampacity of Busbars

• Electronics power supply at 24 V DC: 20 A

• DC-link connection: 200 A

DC Link Capacitance

• Active Line Module: 1,880 F

• Drive system, maximum: 20,000 F

General Technical Specifications

• Sound pressure level: 60 dB

• Losses: 0.95 kW

Ambient Conditions

• Ambient temperature (operation): 0 40 C (32 104 F)

• Cooling air throughput: 0.044 m/s (1.554 ft/s)

• Installation altitude: 1,000 m (3,280.84 ft)

• Type of cooling: Internal air cooling

Technical Details
