About Siemens CPU 6ES7288-1SR30-0AA1

Communication Protocols
Profibus

Mounting Type
DIN Rail

Output Type
PLC

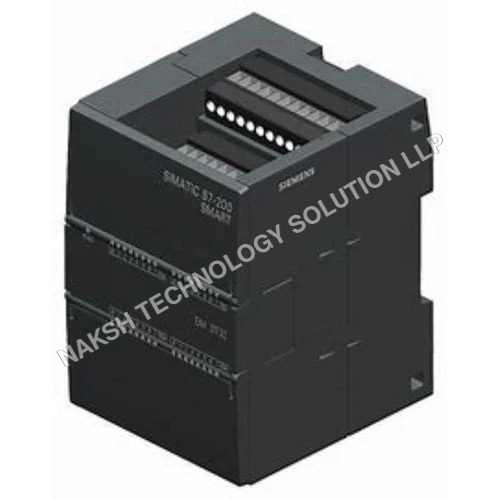

Elevate your industrial automation systems with the Siemens CPU 6ES7288-1SR30-0AA1, a high-performance central processing unit designed to deliver superior processing power and reliability. Part of the Siemens S7-1200 series, the Siemens CPU 6ES7288-1SR30-0AA1 offers exceptional flexibility, scalability, and seamless integration with other Siemens automation products.

It is ideal for industries such as manufacturing, process control, and machine automation, ensuring efficient control and high-speed communication in complex applications.

The Siemens CPU 6ES7288-1SR30-0AA1 is engineered to handle demanding tasks with its fast processing capabilities and energy-efficient design. It supports a wide range of I/O modules and is easily expandable to meet your growing automation needs. With high-speed data processing and extensive connectivity options, the Siemens CPU 6ES7288-1SR30-0AA1 ensures smooth and reliable operations in even the most challenging environments.

At Naksh Technology Solution LLP, we provide expert integration and support for the Siemens CPU 6ES7288-1SR30-0AA1, ensuring a seamless fit within your existing automation systems. Enhance your control and monitoring capabilities with the reliable, scalable, and high-performing Siemens CPU 6ES7288-1SR30-0AA1, designed to optimize your industrial automation processes.

Data Sheet SIMATIC S7-200 SMART CPU SR30

Article No.: 6ES7288-1SR30-0AA1

Type: AC/DC/Relay CPU with onboard I/O

General Information

• Product type: CPU SR30 AC/DC/Relay

• Onboard I/O: 18 DI (24 V DC), 12 Relay DQ (2 A)

• Power supply: AC 85264 V, 4763 Hz

• Program/Data memory: 30 KB

• Engineering: STEP 7 Micro/WIN SMART

• Mounting: DIN rail

Supply Voltage

• Rated values: 120 V AC / 230 V AC

• Permissible range: 85264 V AC

• Frequency range: 4763 Hz

• Rated current: 72 mA at 240 V AC

• Max. current: 136 mA at 120 V AC

• Inrush current: 8.9 A at 264 V AC

Output Current

• Sensor power: 300 mA at 24 V DC

• Backplane bus (5 V DC): max. 1.4 A

Power Loss

• Max.: 14 W

Memory

• Memory type: DDR

• Flash: Yes

• RAM: Yes

• User memory: 12 KB

• Program memory: 18 KB

• Memory card: microSDHC (optional)

• Backup: Maintenance-free (RTC backup 7 days)

CPU Processing Times

• Bit operations: 150 ns

• Word operations: 1.2 s

• Floating point: 3.6 s

Address Areas

• Inputs: 144 bytes
  (256 DI bits + 56 analog input words)

• Outputs: 144 bytes
  (256 DO bits + 56 analog output words)

Clock

• Type: Hardware RTC (no battery)

• Backup time: 7 days

• Max deviation: 120 s/day (120 s/month at 25C)

Digital Inputs

• Quantity: 18

• Usable for tech functions: 6 HSC inputs

• Input voltage: 24 V DC

  • Signal "0": 5 V

  • Signal "1": 15 V

• Input current:

  • Signal "0": 1 mA

  • Signal "1": 4 mA

• Input delay: 0.212.8 ms (selectable)

• Cable length:

  • Shielded: 500 m

  • HSC shielded: 50 m

  • Unshielded: 300 m

Digital Outputs (Relay)

• Quantity: 12 relay outputs

• Relay switching capacity:

  • Resistive load: 2 A

  • Lamp load: 30 W DC / 200 W AC

• Output delay: 10 ms

• Max switching frequency: 1 Hz

• Relay outputs: 8

• Cable length:

  • Shielded: 500 m

  • Unshielded: 150 m

Interfaces

1. PROFINET Interface

• Type: Ethernet (RJ45)

• Isolation: 1,500 V AC

• Speed: 10/100 Mbps (Auto)

• Protocols:

  • PROFINET IO Controller (from V2.4)

  • PROFINET IO Device (I-Device from V2.5)

• Max IO devices: 8

• Update time: min. 4 ms

• Address area per device:

  • Inputs: 128 bytes

  • Outputs: 128 bytes

2. RS485 Interface

• Max speed: 187.5 kbps

• Protocols: S7 communication, PROFIBUS via CM DP

Ethernet Protocols

• TCP/IP

• S7 Communication (client/server)

Integrated Functions

• PID control: Yes (max 8 loops)

• Pulse outputs: 3

• HSC capabilities:

  • Single phase: 5 200 kHz, 1 30 kHz

  • A/B phase: 3 100 kHz, 1 20 kHz

EMC & Standards

• ESD protection: 8 kV air / 4 kV contact

• HF immunity: 10 V/m (801000 MHz)

• Burst immunity: 2 kV (supply & signal)

• Conducted HF: 10 V (150 kHz80 MHz)

• Emission: EN 61000-6-4 industrial class

• CE marked: Yes

Ambient Conditions

• Operating temp.: 2060 C

• Vertical installation max: 50 C

• Storage temp.: 4070 C

• Altitude: 1000 m to 2000 m

• Humidity: 95% (no condensation)

• Free fall: 0.3 m (in packaging)

Dimensions & Weight

• Width: 110 mm

• Height: 100 mm

• Depth: 81 mm

• Weight: 435 g
